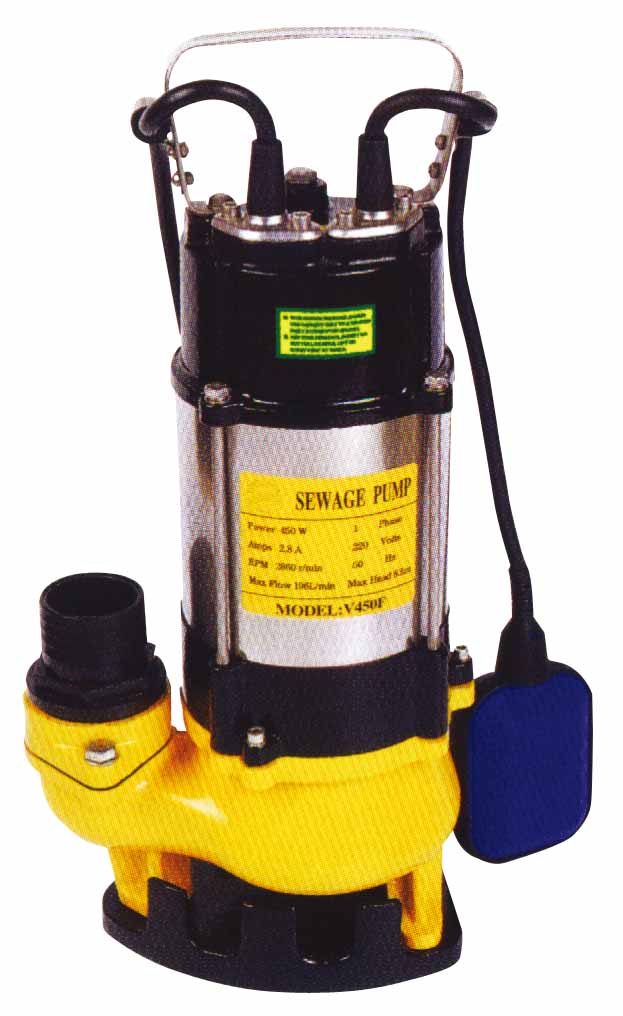

V MODEL SUBMERSIBLE SEWAGE PUMP

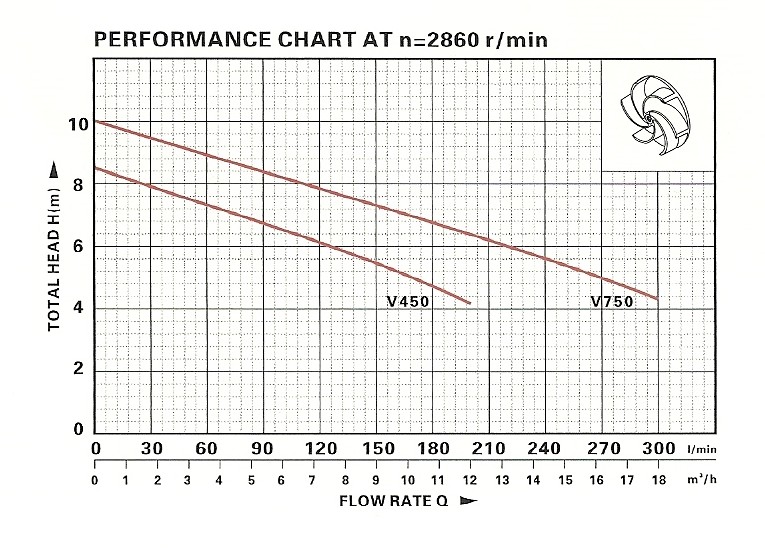

RANGE OF PERFORMANCE
8Flow rate: up to 300 L/min (18 m3/h)
8Head: up to 12m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 25mm

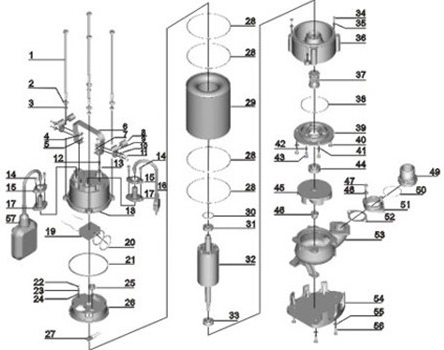

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 Cable 31 Bearing 46 Nut
2 Stretching washer 17 Cable protector 32 Rotor 47 Bolt
3 Washer 18 Capacitor cover 33 Bearing 48 Washer
4 Bolt 19 Capacitor 34 Screw 49 Out-let connector
5 Washer 20 "O" ring 35 Washer 50 "O" ring
6 Handle 21 Rubber washer 36 Connection part 51 Connection nut
7 Nut 22 Screw 37 Mechanical seal 52 Rubber washer
8 Protector 23 Stretching washer 38 "O" ring 53 Pump body
9 Cable presser 24 Washer 39 Oil chamber cover 54 Base plate
10 Washer 25 Line protector 40 Screw 55 Washer
11 Screw 26 Motor cover 41 Washer 56  Screw
12 Bolt 27 Thermal protector 42 "O" ring 57 Float switch
13 "O" ring 28 "O" ring 43 Screw 58
14 Screw 29 Stator 44 Oil seal 59
15 Flange 30 Undulated washer 45 Impeller 60

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION
20‘ QUANTITY

(w)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

V-450F
450
8.5
200
50

5.3
18
25.5x19.5x50

1210

V-750F
750
12
300
50

5.3
22
25.5x19.5x54

1090

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
