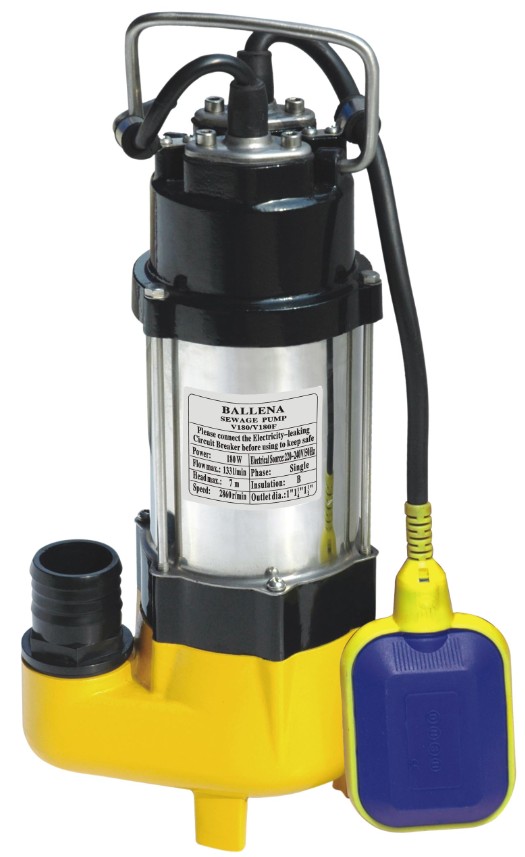

V MODEL SUBMERSIBLE SEWAGE PUMP

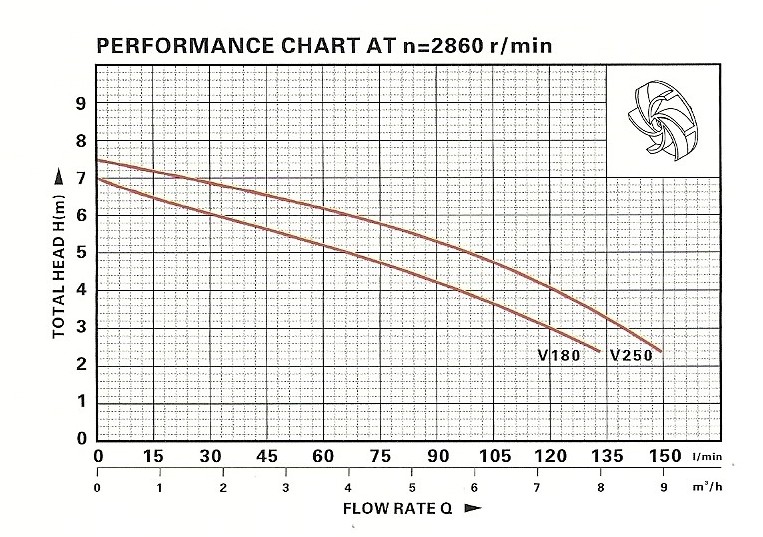

RANGE OF PERFORMANCE
8Flow rate: up to 150 L/min (9 m3/h)
8Head: up  to 7.5 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8 Maximum Passage for suspended solids: 15mm

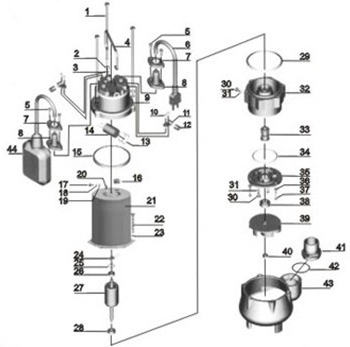

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 13 "O" ring 25 Undulated washer 37 Screw
2 Stretching washer 14 Capacitor 26 Bearing 38 Oil seal
3 Washer 15 Rubber washer 27 Rotor 39 Impeller
4 Handle 16 Line protector 28 Bearing 40 Nut
5 Screw 17 Screw 29 Rubber washer 41 Out-let connector
6 Cable 18 Stretching washer 30 Screw 42 "O" ring
7 Flange 19 Washer 31 "O" ring 43 Pump body
8 Cable protector 20 Nut 32 Connection part 44 Float switch
9 Capacitor cover 21 Stator 33 Mechanical seal 45
10 Screw 22 Screw 34 "O" ring 46
11 Cable presser 23 Stretching washer 35 Oil chamber cover 47
12 Protector 24 Thermal protector 36 Washer 48

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION
QTY/20GP
(w)
(m)
(L/min)
(mm)

(m)
(K.g)
(cm)
pcs
V-180F
180
7
133
40/32/25

5.3
9.0
18.5X18X36.5
2230
V-250F
250
7.5
150
40/32/25

5.3
9.5
18.5X18X38.5
1860

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
