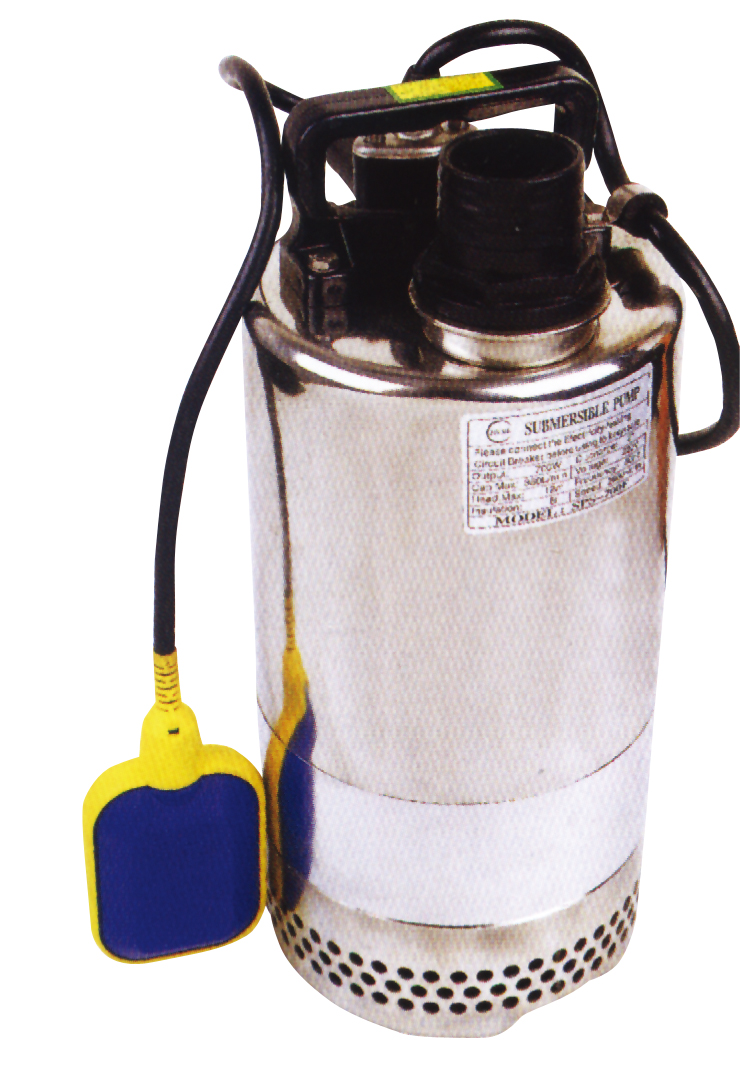

SS700 MODEL SUBMERSIBLE SEWAGE PUMP

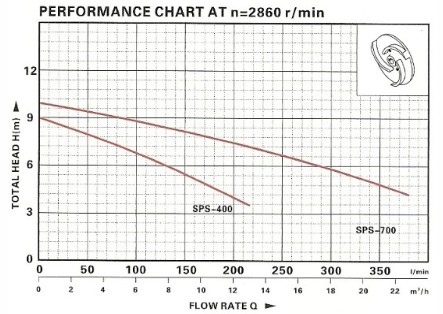

RANGE OF PERFORMANCE
8Flow rate: up to 380 L/min (22.8 m3/h)
8Head: up to 12 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :6.5~8.5
8The grain diameter of the solids in the water is no bigger than 2mm
8Maximum density of pumping liquids 1.2 x 103 kg/m

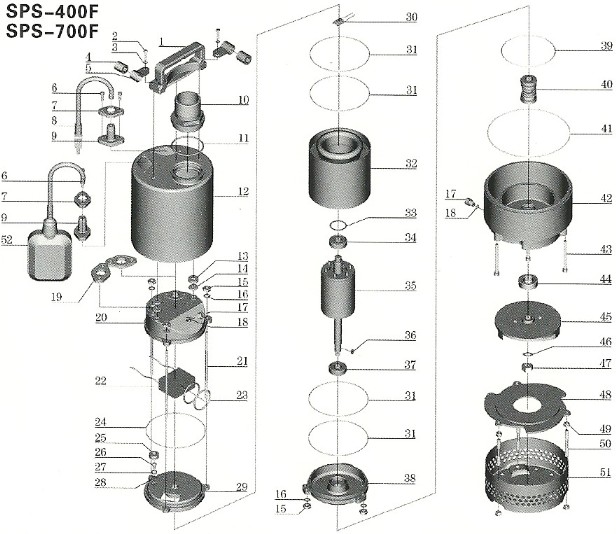

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Handle 14 Washer 27 Stretching washer 40 Mechanical seal
2 Bolt 15 Nut 28 Washer 41 "O" ring
3 Washer 16 Washer 29 Upper cover 42 Pump body
4 Protector 17 Screw 30 Thermal protector 43 Screw
5 Cable presser 18 "O" ring 31 "O" ring 44 Oil seal
6 Screw 19 Rubber washer 32 Motor stator 45 Impeller
7 Flange 20 Capacitor cover 33 Undulated washer 46 Washer
8 Cable 21 Bilateral bolt 34 Ball bearing 47 Nut
9 Cable protector 22 Capacitor 35 Rotor 48  Pump cover
10 Out-let connector 23 "O" ring 36 Key 49  Nut
11 "O" ring 24 "O" ring 37 Ball bearing 50  Bilateral bolt

12

Motor shell

25

Line protector

38

Lower cover

51

 Filter mesh

 13

 Rubber washer

 26

Screw

 39

 "O" ring

 52

Float switch

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION
QTY/20GP
(w)
(m)
(L/min)
(mm)

(m)
(K.g)
(cm)
pcs
SS-400F
400
9
216
50

5.3
17
22x22x44
1250
SS-700F
700
12
380
50

5.3
18.5
22x22x44
1250

8220V/50Hz  &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
