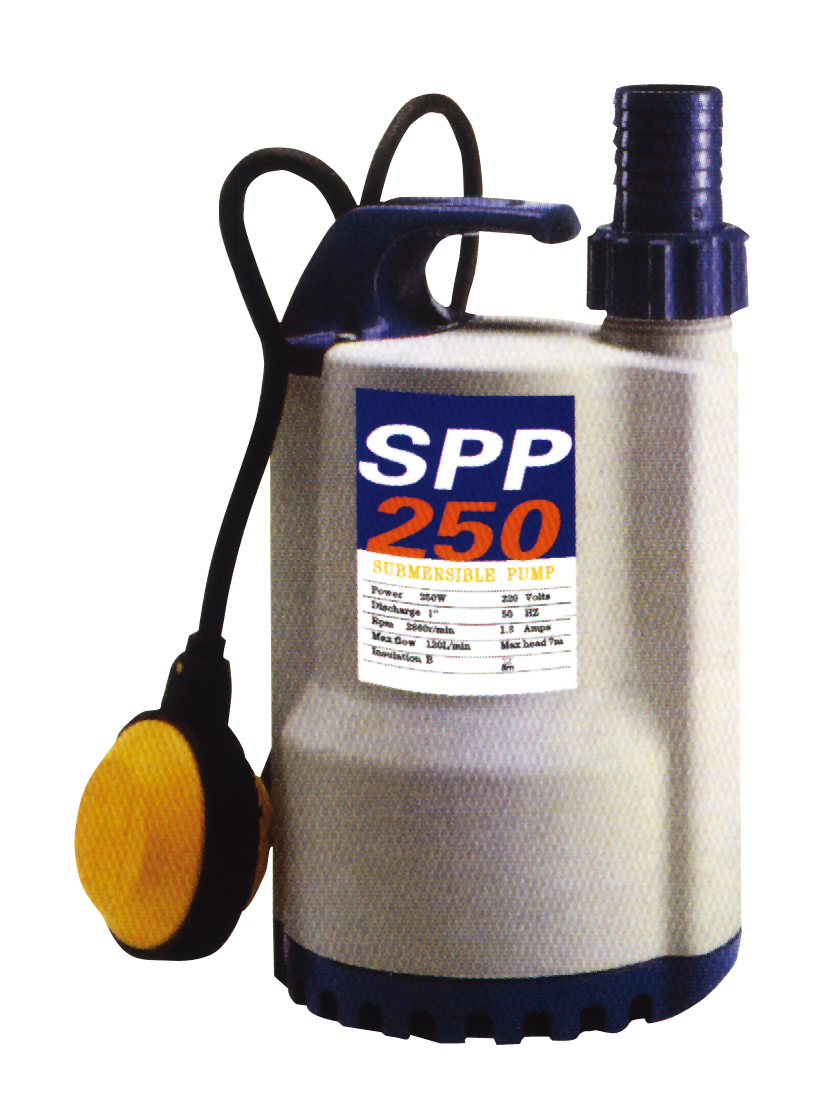

SPP MODEL PLASTIC  RINSING SUBMERSIBLE PUMP

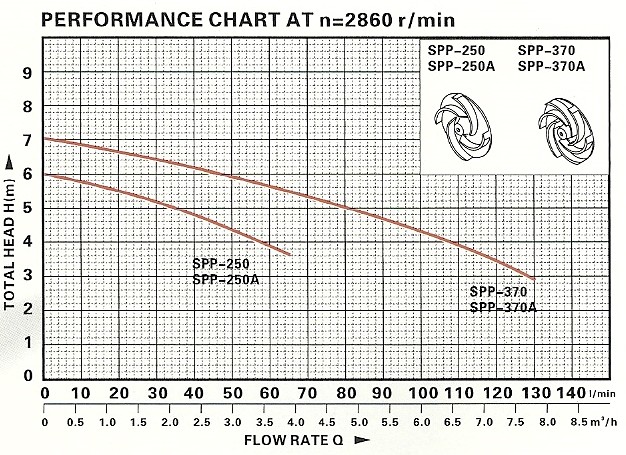

RANGE OF PERFORMANCE
8Flow rate: up  to 75 L/min (4.5 m3/h)
8Head: up to 7 m



LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 2mm

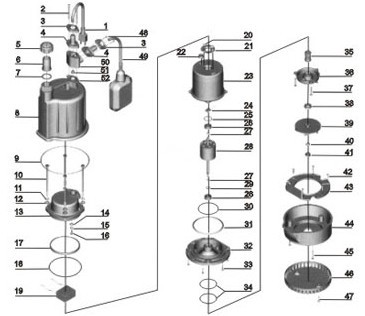

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Cable 16 Screw 31 Rubber washer 46 Filter mesh
2 Screw 17 Rubber washer 32 Connection part 47 Screw
3 Flange 18 "O" ring 33 Screw 48 Screw
4 Cable protector 19 Capacitor 34 "O" ring 49 Float switch
5 Connection nut 20 Screw 35 Mechanical seal 50 Tees
6 Out-let connector 21 Press plate 36 Oil chamber cover 51 Hole bead
7 Rubber washer 22 Line protector 37 Screw 52 Rubber washer
8 Motor shell 23 Stator 38 Oil seal 53
9 "O" ring 24 Thermal protector 39 Impeller 54
10 Bolt 25 Undulated washer 40 Washer 55
11 Streching washer 26 Bearing 41 Nut 56
12 Washer 27 Snap ring 42 Screw 57
13 Capacitor cover 28 Rotor 43 Pump cover 58
14 Washer 29 Word ring 44 Pump body 59
15 Streching washer 30 "O" ring 45 Screw 60

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION
QTY/20GP
(w)
(m)
(L/min)
(mm)

(m)
(K.g)
(cm)
pcs
SPP-250F
250
6
65
25

5.3
4.0
20x19x30
2600
SPP-370F

370

7

130

32

5.3

5.3

20x19x30

2600

8220V/50Hz, 240V/50Hz, 110V/60Hz  & 240V/60Hz are available on request.
