    Home > Products > Garden pump > Submersible Pump

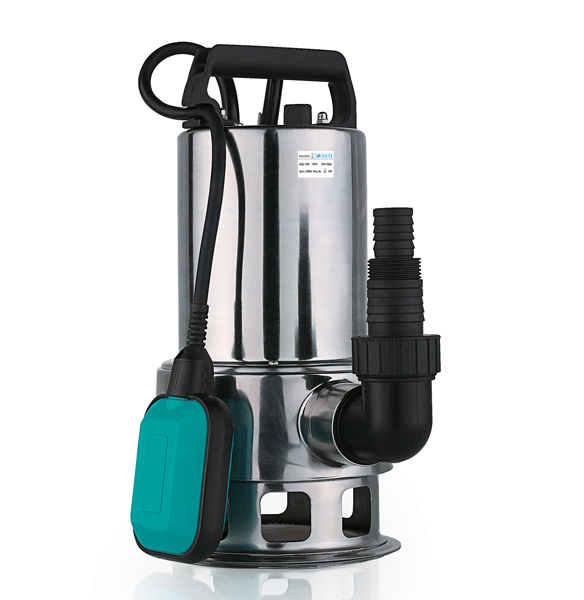

HQD-S1 SERIES GARDEN SUBMERSIBLE PUMP

LIMITS OF USE
8Max grain size:35mm
8Liquid temperature up to +35℃
8Protection:IP X8



MATERIALS
8Pump body: Stainless, steel AISI304.
8Impeller: Plastic(or SS304)
8Motor :Closed,externally ventilated
8Insulation class:B(Class F if required)
8Protection class:IP68
8Duty:Continuously rated
8Mechanical seal:ceramic/graphite.









WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
V&Hz
POWER
MAX.
HEIGHT
MAX.
DEPTH
MAX.
PUMP RATE
CABLE

LENGTH OF CABLE
N.W
PACKING DIMENSION




(w)
(m)
(m)
(L/H)

(m)
(K.g)
(cm)
HQD400S1
230V/50HZ,115V/60HZ
400
5
5
7500

H05RN-F3G0.75mm²
10
4.375
22*16*34
HQD550S1
230V/50HZ,115V/60HZ
550
7
7
10500

H05RN-F3G1.0mm²
10
4.875
22*16*34
HQD750S1
230V/50HZ,115V/60HZ

750

8

7

12500

H07RN-F3G1.0mm²

10

 5.25

22*16*37

HQD900S1

230V/50HZ,115V/60HZ

900

8.5/7

7

14000/18000

H07RN-F3G1.0mm²

10

5.625

22*16*37

HQD1100S1

230V/50HZ,115V/60HZ

1100

9.5/8

7

15000/20000

H07RN-F3G1.0mm²

10

5.875

22*16*37

8230V/50Hz  & 115V/60Hz are available on request.
