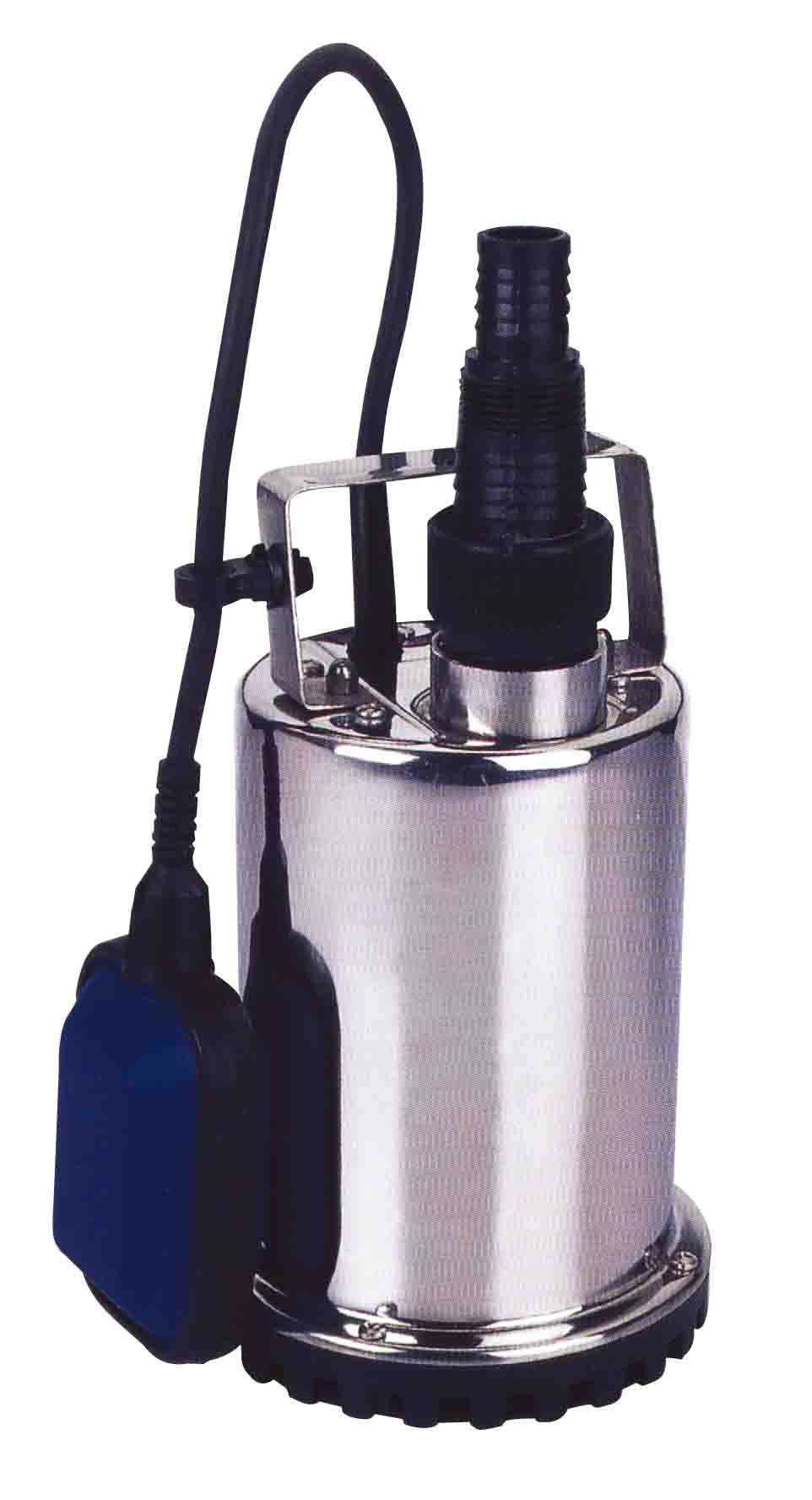

SP10400 SERIES GARDEN SUBMERSIBLE PUMP

LIMITS OF USE
8Max grain size:5mm
8Liquid temperature up to +35℃
8Protection:IP X8℃

MATERIALS
8Pump body: Stainless, steel AISI304.
8Impeller: Plastic(or SS304)
8Motor :Closed,externally ventilated
8Insulation class:B(Class F if required)
8Protection class:IP68
8Duty:Continuously rated
8Mechanical seal:ceramic/graphite.















WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
V&Hz
POWER
MAX.
HEIGHT
MAX.
DEPTH
MAX.
PUMP RATE
CABLE
LENGTH OF CABLE
N.W
PACKING DIMENSION




(w)
(m)
(m)
(L/H)

(m)
(K.g)
(cm)
SP10400
230V/50HZ,115V/60HZ
400
6.5
5
7500

H05RN-F3G0.75mm²
10
4.25
22*16*31
SP10550
230V/50HZ,115V/60HZ
550
7.5
7
8500

H05RN-F3G1.0mm²
10
4.625
22*16*31
SP10750
230V/50HZ,115V/60HZ

750

8.5

7

11000

H07RN-F3G1.0mm²

10

4.8

22*16*31

SP10900

230V/50HZ,115V/60HZ

900

9

7

12000

H07RN-F3G1.0mm²

10

5.375

22*16*34

8230V/50Hz  & 115V/60Hz are available on request.
