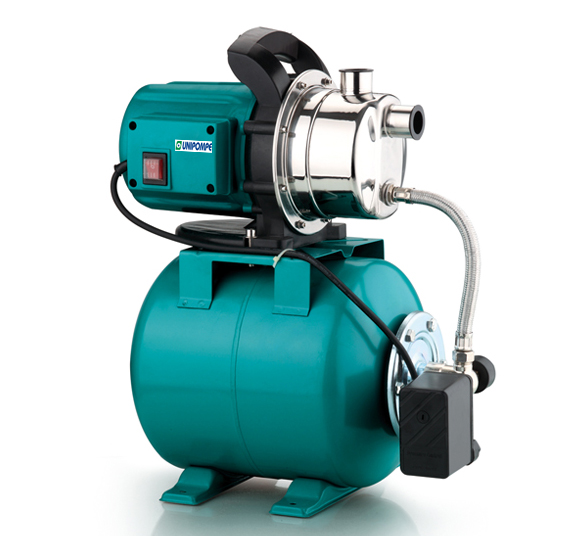

GP01-1C SERIES GARDEN JET PUMP

LIMITS OF USE
8Max.suction head :8m
8
Liquid temperature up to +35℃

MATERIALS and FEATURES:
8Pump body: Cast iron(or SS304).
8Impeller: Plastic(or SS304).
8Shaft with rotor:Carbon steel or stainless steel
8Insulation class:B(Class F if required)
8Protection :IP X4
8Bearing:  NSK, C&U, or local quality.
8Mechanical seal:ceramic/graphite
.









WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

V&Hz POWER MAX.PUMP
RATE
MAX.
HEIGHT
MAX.
DEPTH
WORK.
PRESSURE
DIA.
OF
PIPE
CABLE LENGTH
OF
CABLE
N.W

DIMENSION

  (V/Hz) (w) (l/h) (m) (m) (bar)     (m) (kg) (cm)
GP01600-1C 230/50,115/60 600 3000  35 7 1.5-2.8 1''  H07RN-F3G1.0mm2 1.2 10.5 46*28*57
GP01800-1C 230/50,115/60 800 3200 40 7 1.5-3.0 1''  H07RN-F3G1.0mm2 1.2 11.0 46*28*57
GP011000-1C 230/50,115/60 1000 3500 44 7 1.5-3.0 1''  H07RN-F3G1.0mm2 1.2 11.5 46*28*57
GP011200-1C 230/50,115/60 1200 3800 48 7 1.5-3.0 1''  H07RN-F3G1.0mm2 1.2 12.0 46*28*57



8230V/50Hz  & 115V/60Hz are available on request.
