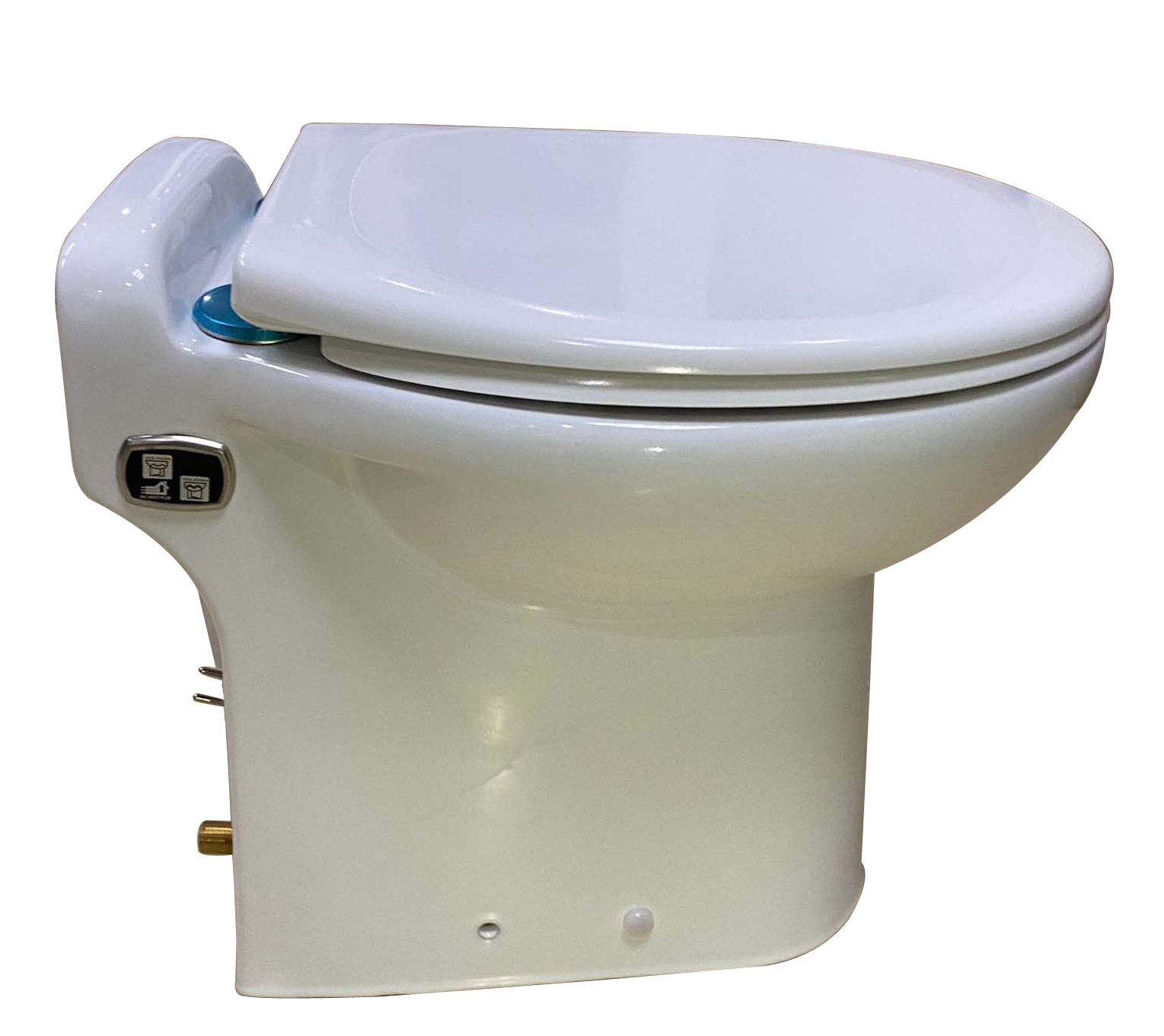

FLO-WC53 One Piece Upflush Toilet with round-front standard bowl for basement



General Description:

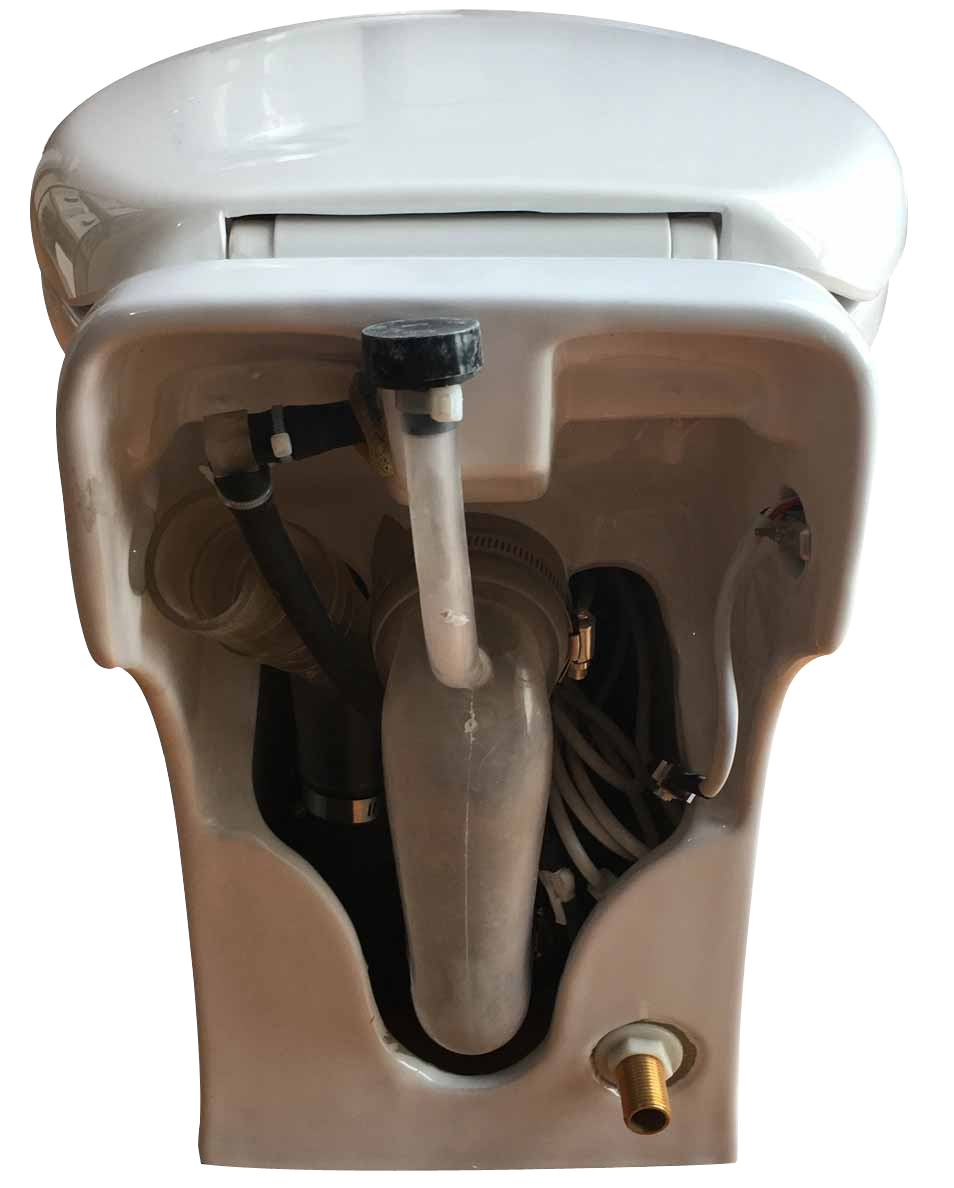

The One-piece toilet system unit has no external water tank as the flushing mechanism is built in and is totally electric. The discharge pipe of the unit is 1 inch in diameter and pumps the effluent upwards to 19 feet and/or 164 feet horizontally. The discharge pipe-work may be made with either copper or solvent welded plastic material, provided that a consistent gravity fall of 2% is maintained throughout the run. The unit is a self-contained toilet with the macerator pump and an electrical activated flushing action built inside the unit. That is why this toilet can be installed in very small places. The system does not depend on gravity, so it can be used where large diameter pipe cannot be used.



Performance Datas:

8
Amperage: 3.0 A
8Power: 600W
8Electrical Supply(V): 220-240V/50Hz, 110V or 220V/60Hz
8Motor Speed(RPM): 2900
8Protection grade: IP55, Class F
8Discharge Pipe Diameter(in): 1″

8
Noise Level: 39dB
8Vertical Discharge: 19ft (5M)
8Horizontal Discharge:164 ft (50M)
8Gravity fall on horizontal Installations: 1/4″ per ft
8Normal Running Time WC: 10-15 seconds
8Warranty: 1 year
8Maximum Temperature(°F): 95 degree
8Water Consumption(gallons): 1(Green Friendly)
8Dimensions (measured from floor level): 20″ x 16″ x 22″
