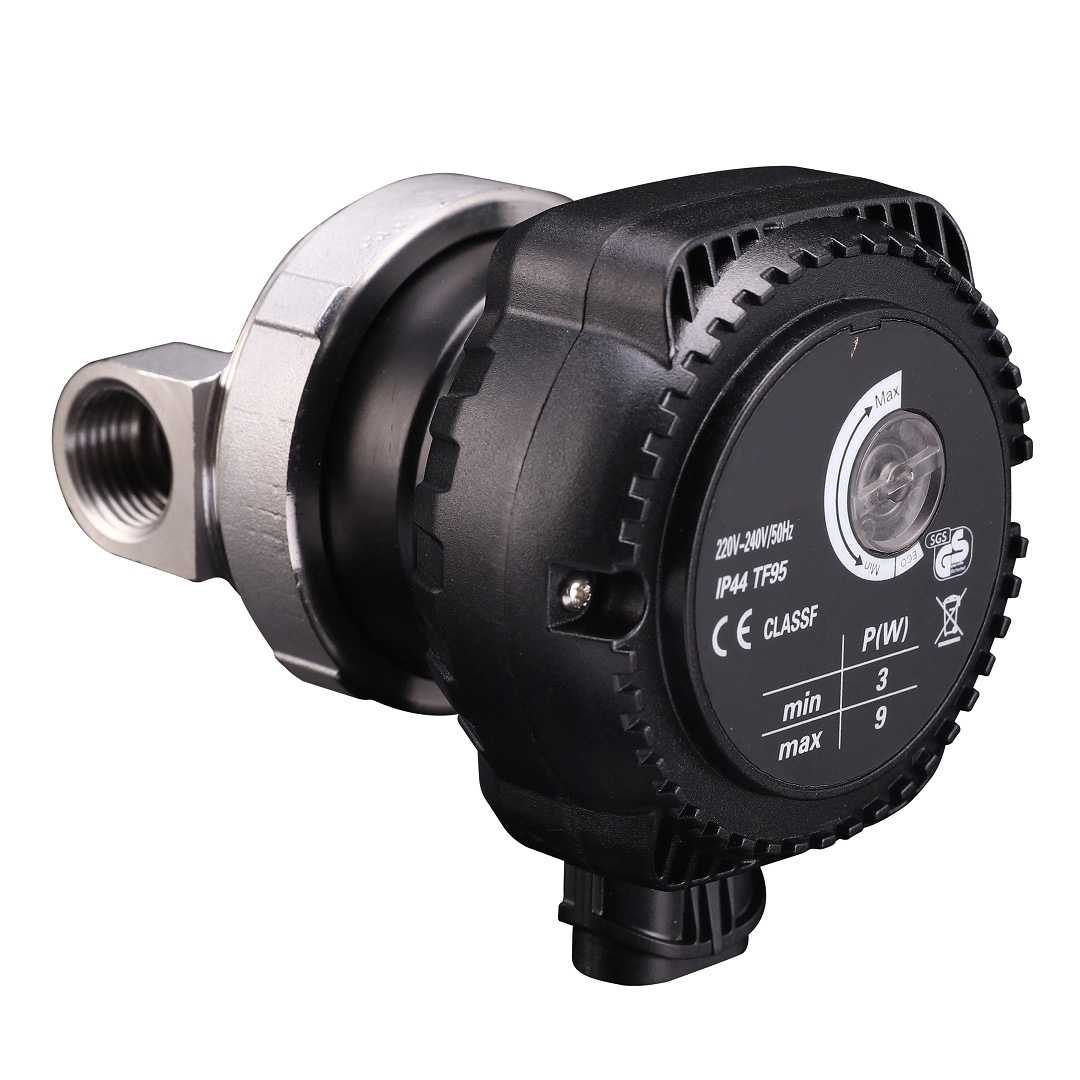

DOMESTIC CIRCULATOR PUMP

RANGE OF PERFORMANCE
8Flow rate up to 10 L/min
8Head up to 1.1 m

LIMITS OF USE
8Fluid temperature: 0℃~ +95℃
8Max. ambient temperature +40℃
8Max. working pressure up to 10 bar

MOTOR
8Non-overloading 1-phase induction motor (n=2850rpm)
8Insulation Class B/F
8Protection grade IP44

CONSTRUCTION MATERIALS
8Rotor: ferro-magnesium alloy
8Stator: spherical stainless steel
8Pump housing: stainless steel

MOUNTING POSITION
Pump shaft in the horizontal plane

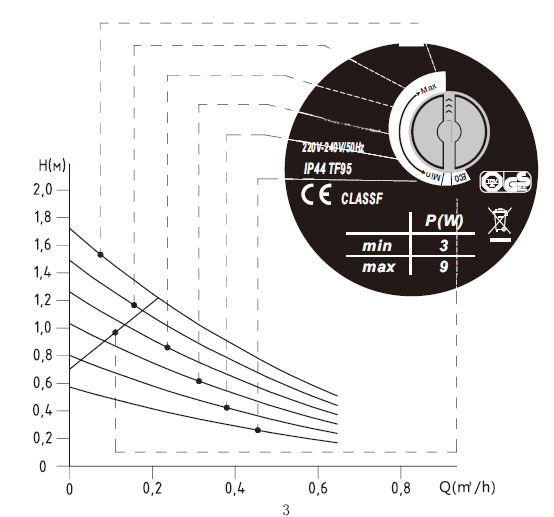

PERFOMANCE CURVE

WARRANTY: 1 YEAR (according to our general sales conditions)
