    Home > Products > Garden pump > Submersible Pump

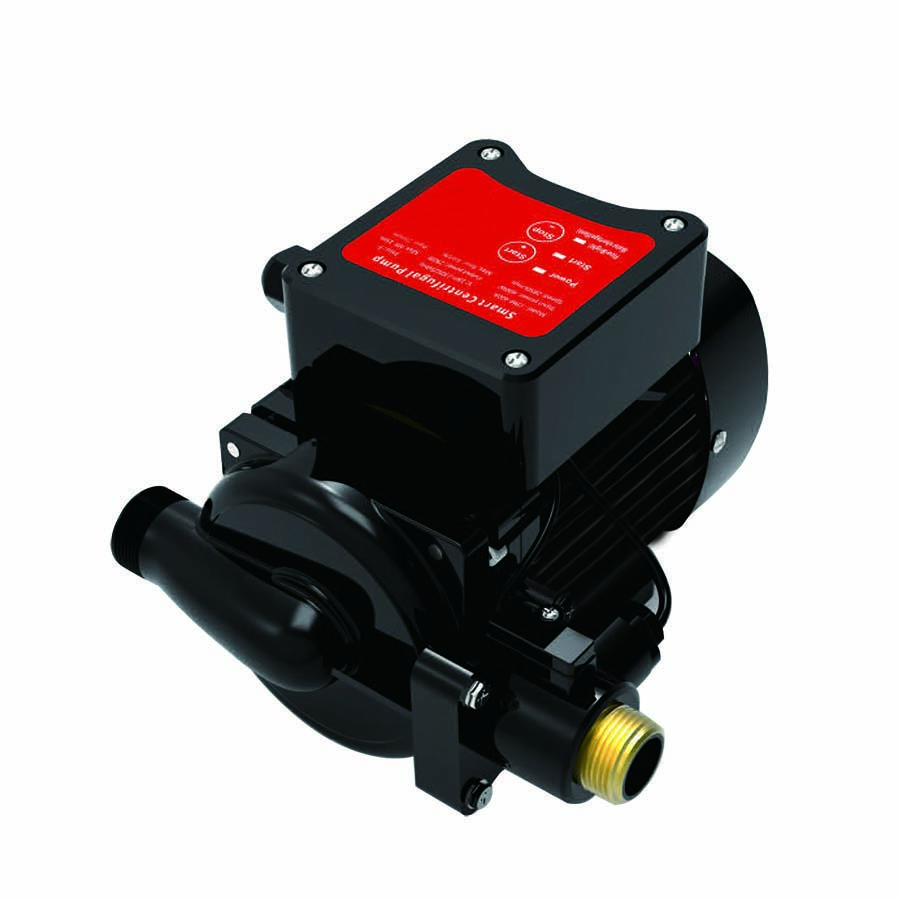

SMART CENTRIFUGAL BOOSTER PUMP

RANGE OF PERFORMANCE
8Flow rate up to 300 l/min
8Head up to 20 m

LIMITS OF USE
8Fluid temperature: 0℃~ +100℃
8Max. ambient temperature +40℃

MOTOR
8Electric pump speed:(n=2850 r.p.m)
8Insulation Class F
8Protection grade IP44
8Continuous service: S1
8Thermal protector
8Single-phase: 220V/50Hz,60Hz if request.

CONSTRUCTION MATERIALS
8Power body: Cast iron, 304 stainless steel inserts
8Pump support: Cast iron, 304 stainless steel inserts
8Motor housing: Aluminum
8Impeller and rotor: PPO
8Motor shaft: Stainless steel
8Mechanical seal: Silicon carbide
8Bearing: 6201(200W-400W-600W)









WARRANTY: 1 YEAR (according to our general sales conditions)



MODEL

POWER

Power

H max

Q max

PIPE

W

Hp

m

L/min

mm

20CPM-200(M)

200

0.3

12

180

20

25CPM-400(M)

400

0.55

15

240

25

25CPM-600(M)

600

0.8

20

300

25

Note:In model20CPM-200(M), "20"means caliber, "CPM"means centrifugal booster pump, "200" means power,"M"means start pressure adjustment.
