    Home > Products > Garden pump > Submersible Pump

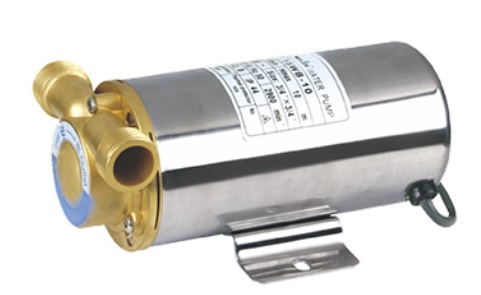

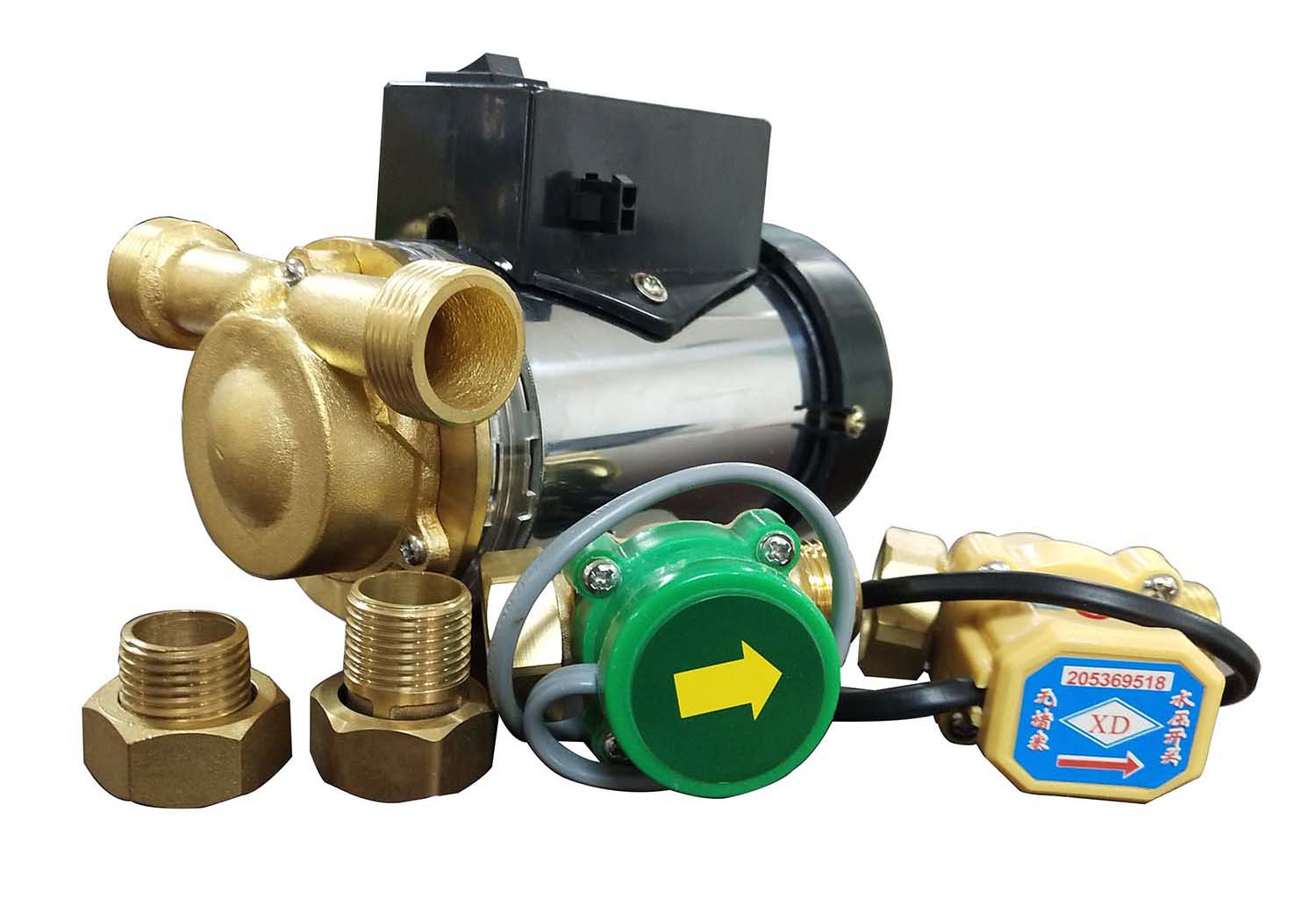

COLD WATER PRESSURE WATER CIRCULATING AUTOMATIC BOOSTING PUMP

RANGE OF PERFORMANCE
8Flow rate up to 25 L/min
8Head up to 15 m

LIMITS OF USE
8Fluid temperature: 40℃~ +100℃
8Max. ambient temperature +40℃
8Max. working pressure up to 10 bar

MOTOR
8Non-overloading 1-phase induction motor (n=2900rpm)
8Insulation Class B/F
8Protection grade IP44

CONSTRUCTION MATERIALS
8Motor housing: Stainless steel
8Pump body: Stainless steel
8Impeller: Brass
8Pump shaft: Stainless steel
8Mechanical seal: Blacklead

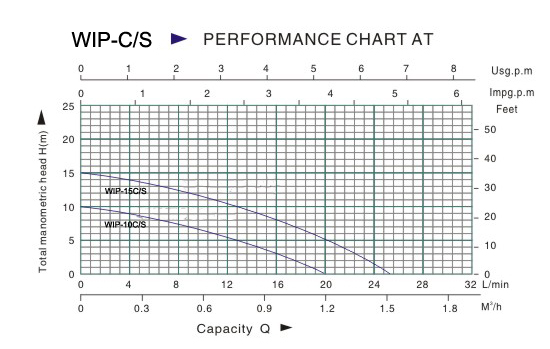

PERFOMANCE CURVE



WARRANTY: 1 YEAR (according to our general sales conditions)



MODEL

POWER

H max

Q max

Max. SPEED

CURRENT

CONDENSER

CONNECTION

W

m

L/min

RPM

A

UF

WIP-10C/S

90

10

20

2900

0.48

2.5

3/4’’ to 1/2’’

WIP-12C/S

120

12

26

0.62

3.5

WIP-15C/S

260

15

26

1.2

6
