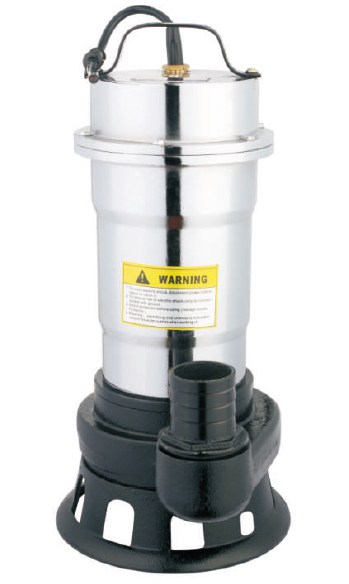

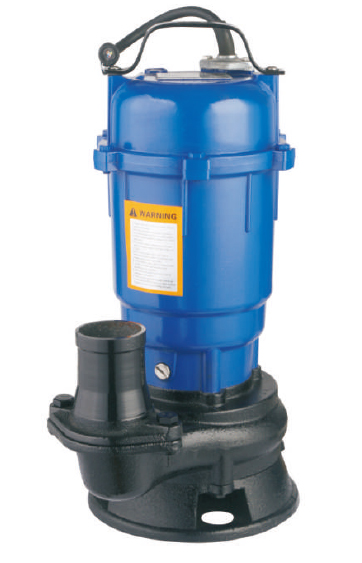

WQD  SUBMERSIBLE PUMP SERIES

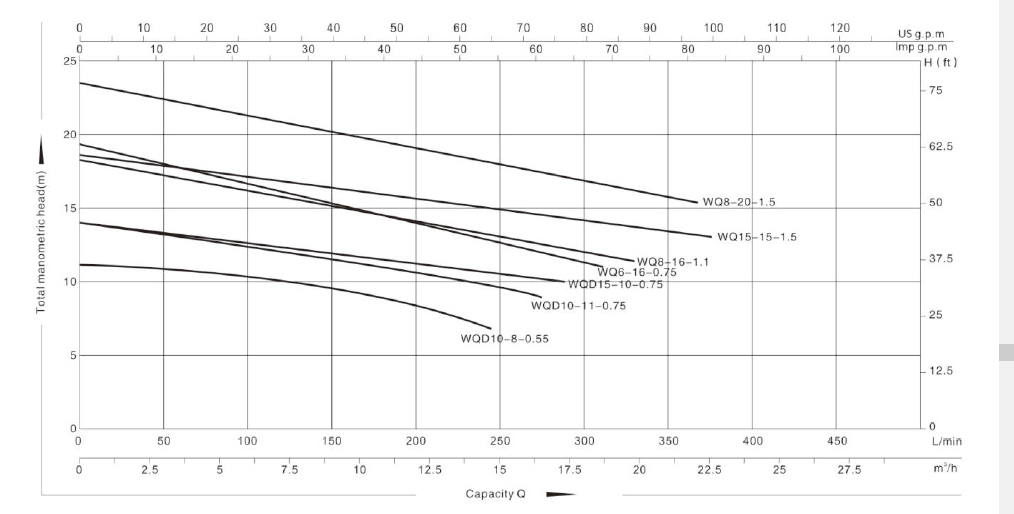

RANGE OF PERFORMANCE
8Flow rate: up to 900  L/min (15 m3/h)
8Head: up to 20 m

LIMITS OF USE
8Maximun operating depth 5m below water level
8Trans medium's PH: 4-10
8Maximun ambient temperature 40℃
8Maximun fluid temperature 40℃

PUMP INSTALLATION AND APPLICATIONS
WQD-Type submersible pump for usage of industry, agriculture, mine, building construction, environment protection. Fit for carrying slurry, mortar, daily sanitary wastewater, and sewage contaning flocks, papers, mud and sand and other soild particles. Also fit for dredging.

STRUCTURE MATERIALS
8 Pump body: Stainless steel(SS304) / Cast iron
8 Motor body: Cast iron
8 Impeller: Cast iron
8 Mechanical seal: Ceramic-Graphite
8 Motor Shaft:  Stainless steel
8 Insulation class: B
8 Protection class:IP68



,



























WARRANTY: 1 YEAR (according to our general sales conditions)

PUMP TPYE

POWER

INLET/OUTLET

RATED FLOW

RATED HEAD

PACKING DIMENSION

Single phase

KW

HP



m3/h

m

mm

WQD10-8-0.55

0.55

0.75

1.5’’

10

8

487X280X203

WQD10-8-0.55

0.55

0.75

2’’

10

8

487X280X203

WQD6-16-0.75

0.75

1

1.5’’

6

16

487X280X203

WQD10-11-0.75

0.75

1

2’’

10

11

487X280X203

WQD10-11-0.75

0.75

1

2.5’’

10

11

487X280X203

WQD15-10-1.1

1.1

1.5

2’’

15

10

560x290x228

WQD15-10-1.1

1.1

1.5

2.5’’

15

10

560x290x228

WQD8-16-1.1

1.1

1.5

2’’

8

16

560x290x228

WQD15-15-1.5

1.5

2

2’’

15

15

560x290x228

WQD8-20-1.5

1.5

2

1.5’’

8

20

560x290x228

Three phase













WQ10-8-0.55

0.55

0.75

1.5’’

10

8

487X280X203

WQ10-8-0.55

0.55

0.75

2’’

10

8

487X280X203

WQ6-16-0.75

0.75

1

1.5’’

6

16

487X280X203

WQ10-11-0.75

0.75

1

2’’

10

11

487X280X203

WQ10-11-0.75

0.75

1

2.5’’

10

11

487X280X203

WQ15-10-1.1

1.1

1.5

2’’

15

10

560x290x228

WQ15-10-1.1

1.1

1.5

2.5’’

15

10

560x290x228

WQ8-16-1.1

1.1

1.5

2’’

8

16

560x290x228

WQ15-15-1.5

1.5

2

2’’

15

15

560x290x228

WQ8-20-1.5

1.5

2

1.5’’

8

20

560x290x228
