    Home > Products > Garden pump > Submersible Pump

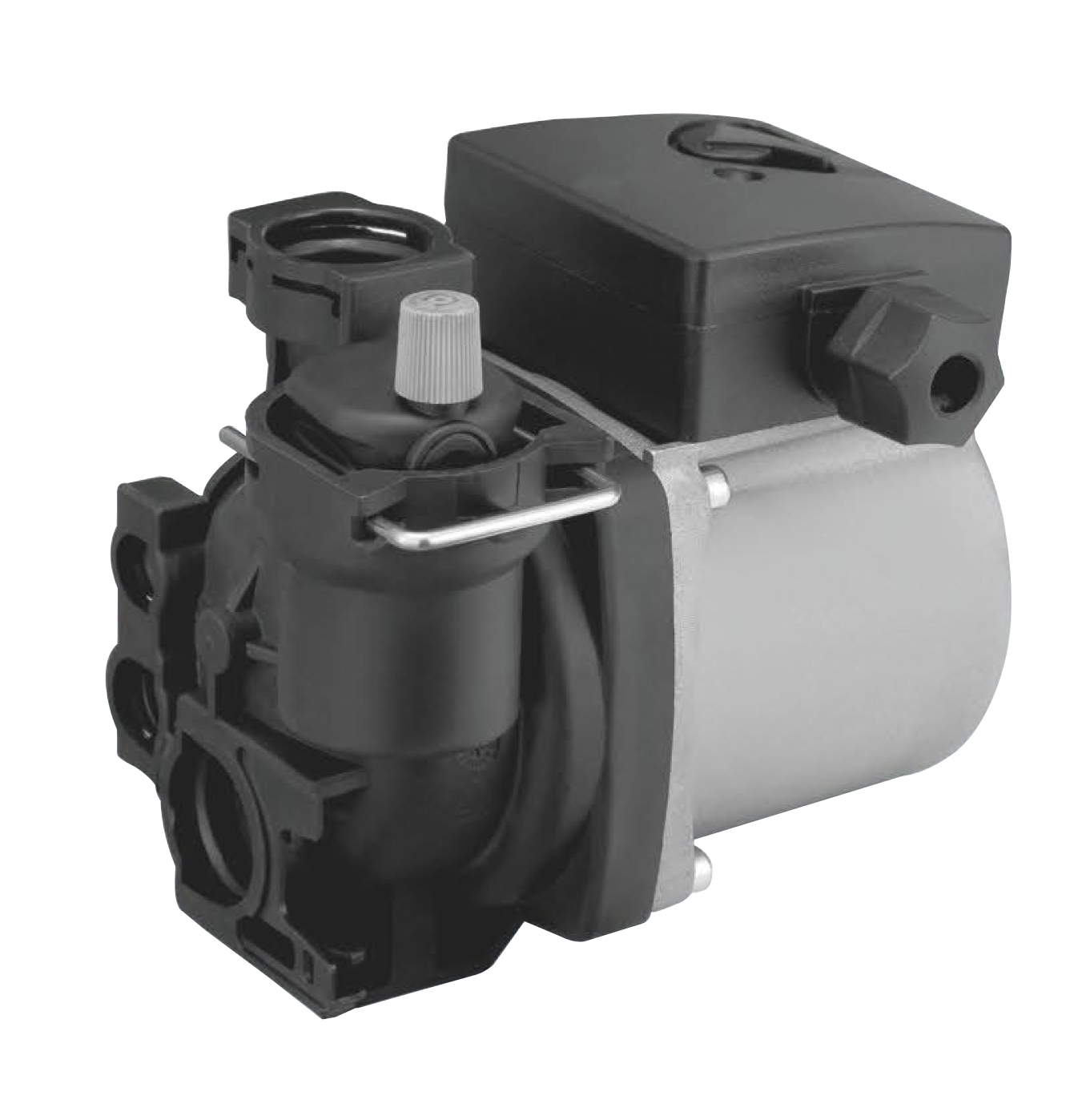

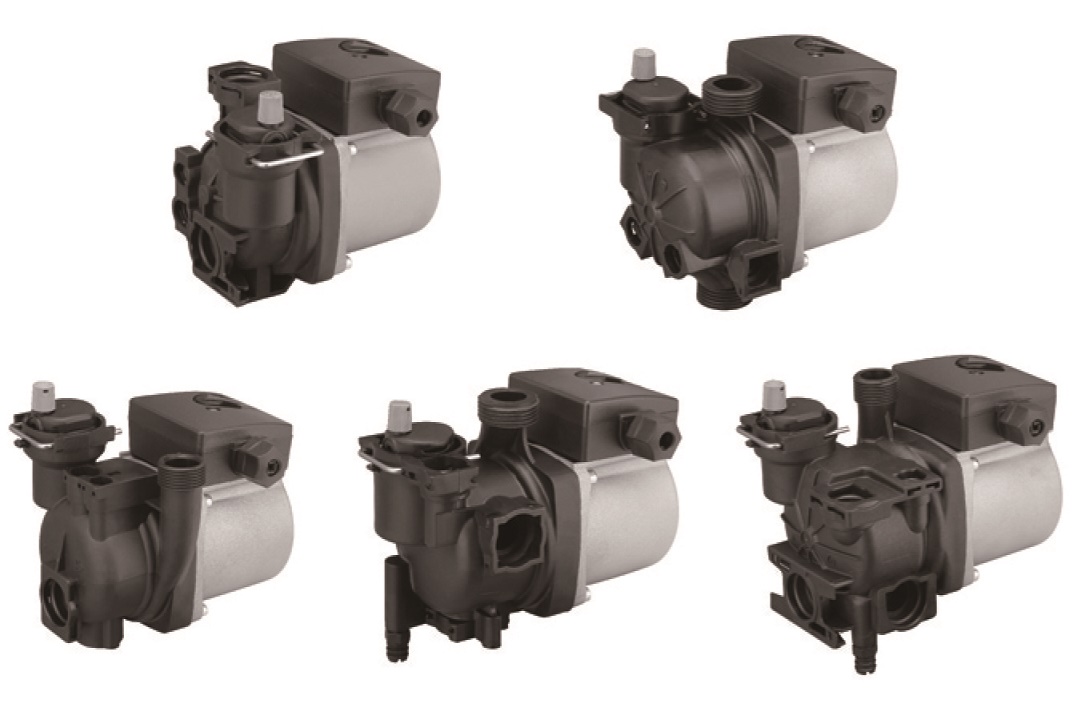

AUTOMATIC EXHAUST TYPE CIRCULATING PUMP

RANGE OF PERFORMANCE
8Flow rate up to 2.5 m3/h
8Head up to 6.7 m

LIMITS OF USE
8Fluid temperature: -10℃~ +100℃
8Max. ambient temperature +40℃
8Max. working pressure up to 10 bar

MOTOR
8Non-overloading 1-phase induction motor (n=2850rpm)
8Insulation Class B/F
8Protection grade IP44

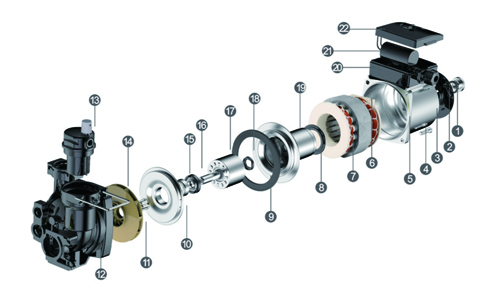

CONSTRUCTION MATERIALS
8Pump body: Cast iron
8Impeller: PEI
8Shaft: Porcelain or stainless steel
8Bearing:  Ceramic

MOUNTING POSITION
Pump shaft in the horizontal plane

PUMP EQUIPMENT
8Screwed end single head pump
8Manual 3-speed control or flow switch automatic control
8Non-overloading single phase motor
8Cast iron body, 160mm,port-to-por

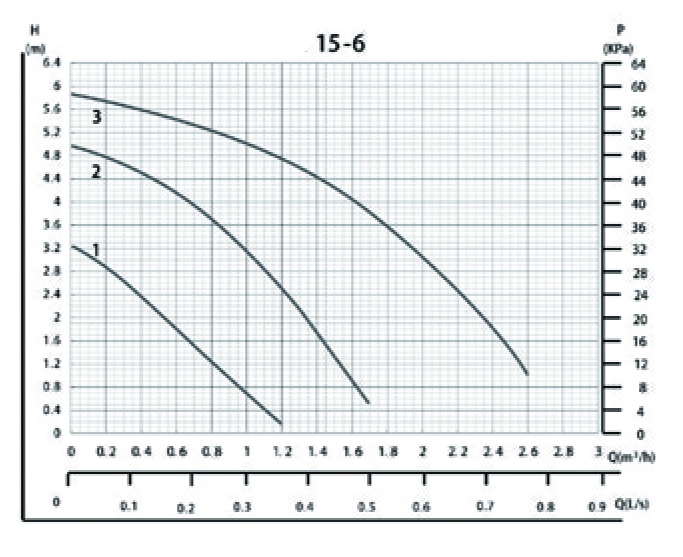

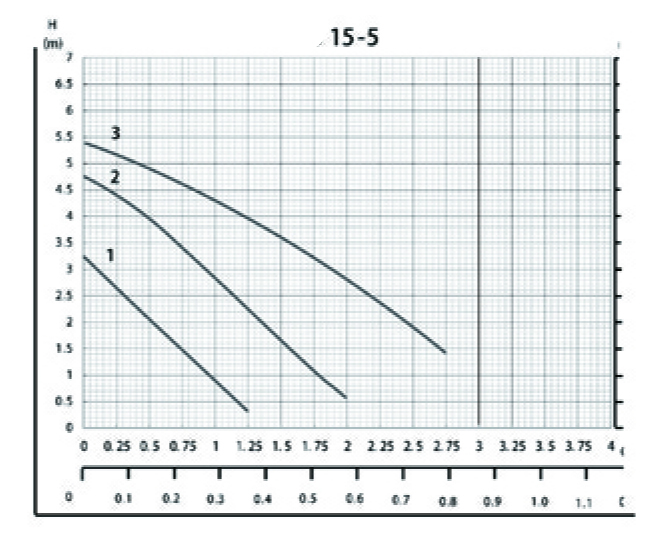

PERFOMANCE CURVE















WARRANTY: 1 YEAR (according to our general sales conditions)


MODEL

SERIES

SPEED GEAR

INPUT POWER

CURRENT

MAX-FLOW

MAX-HEAD

(W)

(A)

(m3/h)

(M)

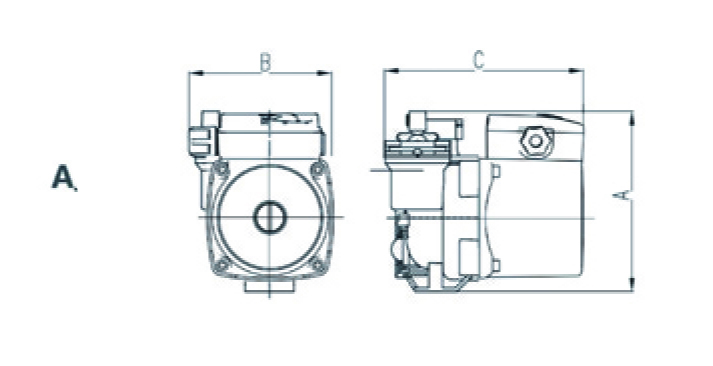

LPS15-5P

A

III

90

5.2

2.3

5.2

LPS15-5P

II

70

4.5

1.6

4.5

LPS15-5P

I

45

3

1

3

LPS15-6P

III

110

6.2

2.3

6.2

LPS15-6P

II

85

5

1.7

5

LPS15-6P

I

55

3

1.1

3

LPS15-7P

III

130

6.7

2.5

6.7

LPS15-7P

II

100

5.5

1.9

5.5

LPS15-7P

I

65

3.5

1.2

3.5



MODEL

SERIES

SPEED GEAR

INPUT POWER

CURRENT

MAX-FLOW

MAX-HEAD

(W)

(A)

(m3/h)

(M)

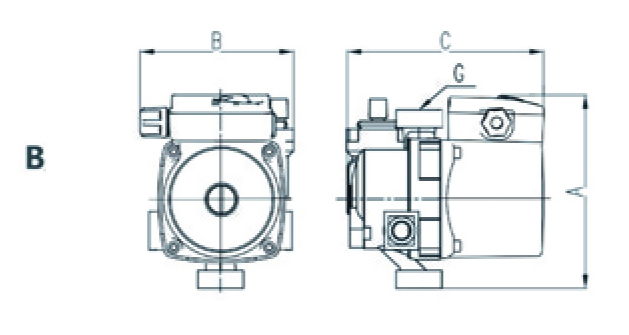

LPS15-5P

B

III

90

5

2.2

5

LPS15-5P

II

70

4.5

1.5

4.5

LPS15-5P

I

45

3

0.9

3

LPS15-6P

III

110

6

2.2

6

LPS15-6P

II

85

5

1.6

5

LPS15-6P

I

55

3

1

3

LPS15-7P

III

130

6.7

2.5

6.7

LPS15-7P

II

100

5.5

1.9

5.5

LPS15-7P

I

65

3.5

1.2

3.5



MODEL

SERIES

SPEED GEAR

INPUT POWER

CURRENT

MAX-FLOW

MAX-HEAD

(W)

(A)

(m3/h)

(M)

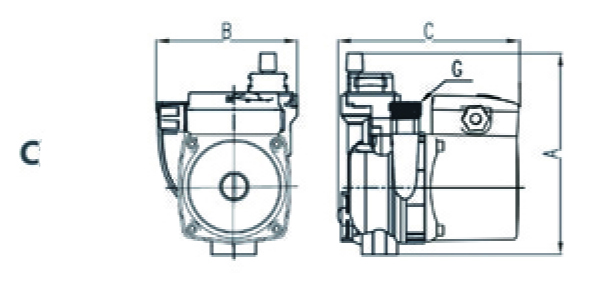

LPS15-5P

C

III

90

5.2

2.3

5.2

LPS15-5P

II

70

4.5

1.6

4.5

LPS15-5P

I

45

3

1

3

LPS15-6P

III

110

6.2

2.3

6.2

LPS15-6P

II

85

5

1.7

5

LPS15-6P

I

55

3

1.1

3



MODEL

SERIES

SPEED GEAR

INPUT POWER

CURRENT

MAX-FLOW

MAX-HEAD

(W)

(A)

(m3/h)

(M)

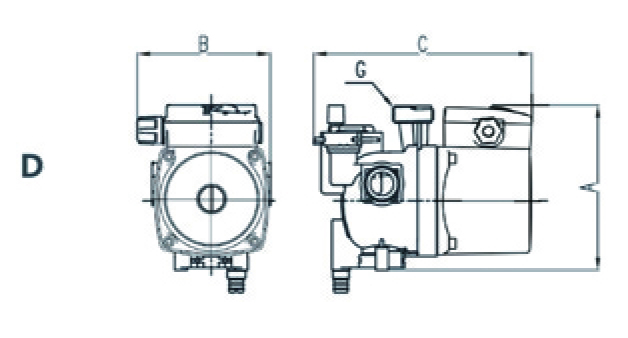

LPS15-5P

D

III

90

5.3

2.4

5.3

LPS15-5P

II

70

4.7

1.7

4.7

LPS15-5P

I

45

3

1.3

3

LPS15-6P

III

110

6.1

2.4

6.1

LPS15-6P

II

85

5

1.8

5

LPS15-6P

I

55

3

1.3

3


,

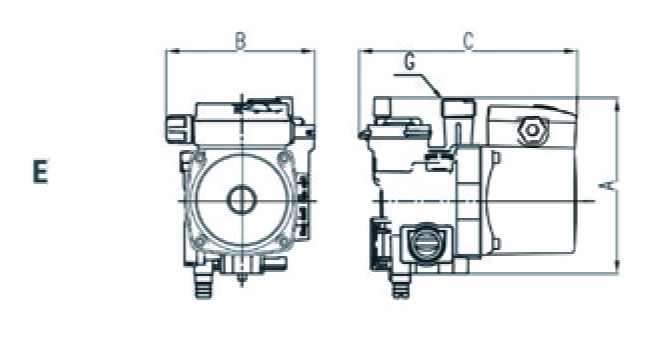

MODEL

SERIES

SPEED GEAR

INPUT POWER

CURRENT

MAX-FLOW

MAX-HEAD

(W)

(A)

(m3/h)

(M)

LPS15-5P

E

III

90

5.2

2.3

5.2

LPS15-5P

II

70

4.6

1.6

4.6

LPS15-5P

I

45

3

1

3

LPS15-6P

III

110

6.1

2.4

6.1

LPS15-6P

II

85

5

1.8

5

LPS15-6P

I

55

3

1.2

3
