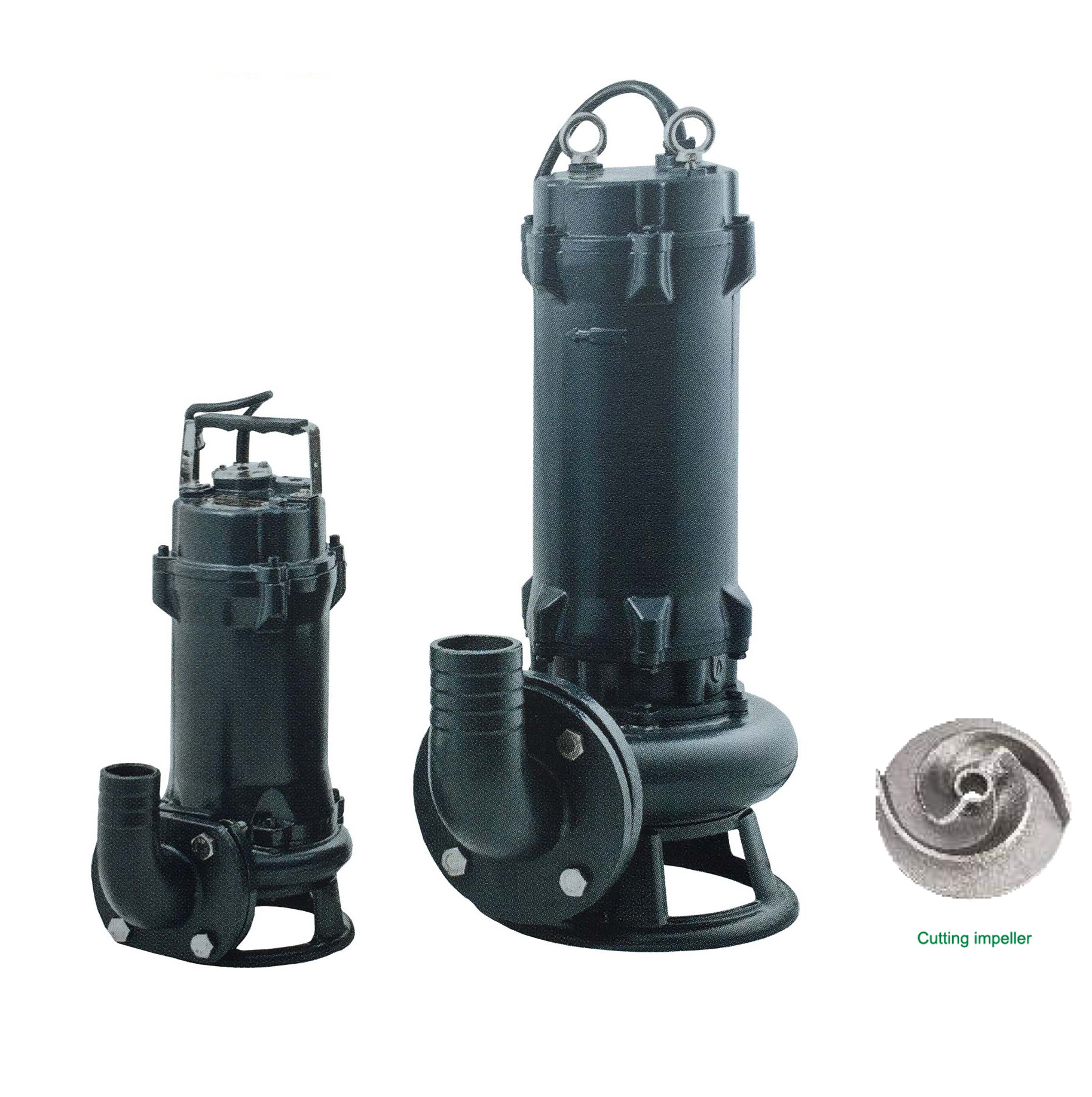

WQK SERIES SUBMERSIBLE SEWAGE PUMPS WITH CUTTING IMPELLER

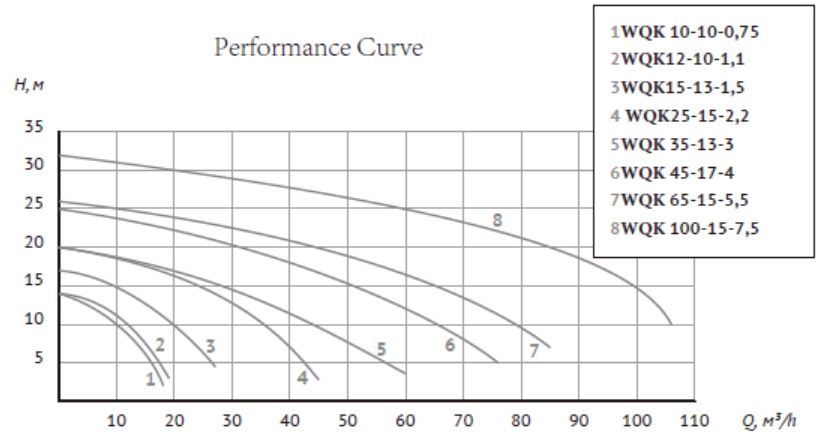

RANGE OF PERFORMANCE
8Flow rate: up to 85 m3/h
8Head: up to 13 m
LIMITS OF USE
8Maximum immersion depth 5m below waterlevel
8Maximum fluid temperature 40℃
8Fluid temperature up to 40℃
8Protection class IPX8
8Insulation class B or F
WORKING PRINCIPLE
8This pumps are very special with cast iron impeller witch with the function of cutting. This seris of pumps has compact structure, easy to move, easy for installation, good resistance to jam and tagle-free, which is widely used in agricultural pollution, the rural road construction, house infrastructute, animal husbandry of sewage discharge and poof of sewage discharge.

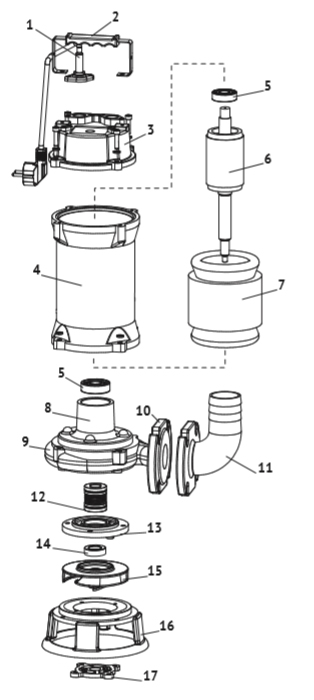

STRUCTURAL CHARACTERISTIC
8Copper winding
8Single Phase/Three Phase/Continuous Work
8Pump body : Cast Iron
8Impeller : Cast Iron
8Motor body : Cast Iron
8Shaft : Stainless steel welded shaft/45# steel be electroplated
.
WARRANTY: 1 YEAR (according to our general sales conditions)
|
Model |
POWER |
FLOW |
HEAD |
OUTLET |
GW |
PACKING |
|
kW |
HP |
(m3/h) |
(m) |
(in) |
(kg) |
(cm) |
|
WQKD10-10-0.75 |
0.75 |
1.0 |
10 |
7 |
2’’ |
19 |
52*23*26 |
|
WQK10-10-0.75 |
0.75 |
1.0 |
10 |
7 |
2’’ |
19 |
52*23*26 |
|
WQKD12-10-1.1 |
1.1 |
1.5 |
15 |
9 |
2’’ |
22 |
52*23*26 |
|
WQK12-10-1.1 |
1.1 |
1.5 |
15 |
9 |
2’’ |
22 |
52*23*26 |
|
WQK15-13-1.5 |
1.5 |
2.0 |
25 |
7 |
21/2’’ |
28 |
54*25*31 |
|
WQK25-115-2.2 |
2.2 |
3.0 |
25 |
10 |
21/2’’ |
41 |
57*25*31 |
|
WQK35-13-3 |
3.0 |
4.0 |
42 |
11 |
3’’ |
55 |
63*30*33 |
|
WQK45-17-4 |
4.0 |
5.5 |
50 |
10 |
3’’ |
72 |
65*30*33 |
|
WQK65-15-5.5 |
5.5 |
7.5 |
65 |
12 |
4’’ |
89 |
72*31*37 |
|
WQK100-15-7.5 |
7.5 |
10 |
85 |
13 |
4’’ |
120 |
75*31*37 |
8380V/50(60Hz), 220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
