    Home > Products > Garden pump > Submersible Pump

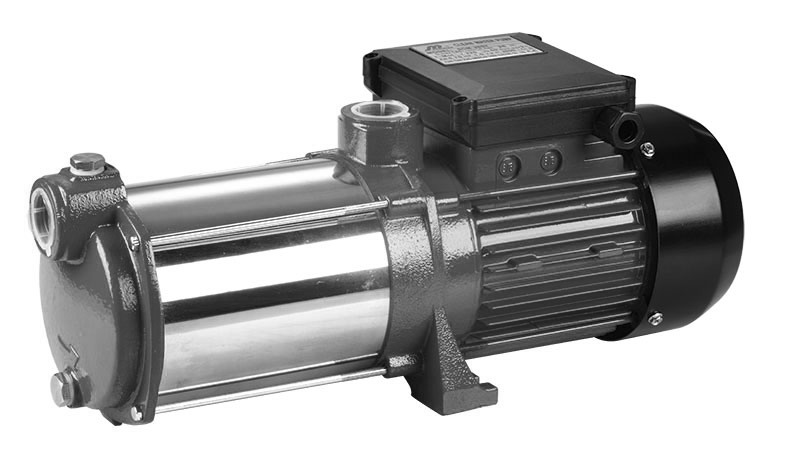

HM SERIES MULTISTAGE CENTRIFUGAL PUMP

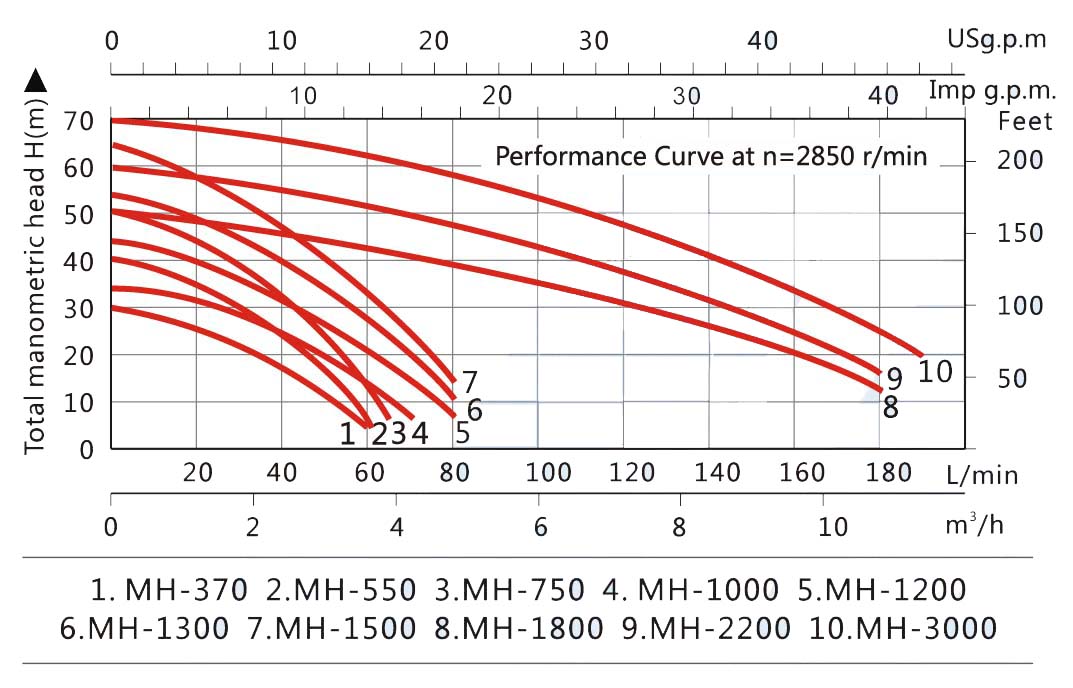

RANGE OF PERFORMANCE
8Flow rate up to 190 l/min
8Head up to 70m

LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +120℃
8Environment temperature up to +70℃

INSTALLATION AND USE
8MH is a kind of non-self priming multistage centrifugal pump,which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and inlet and outlet section with tie-bar bolts. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running,out-of-phase and overload.
8MH series pump are multi-functional products. They can be used to convey various medium from tap water to industrial liquid at different temperature with different flow and pressure.

MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class F
8Protection grade IP55

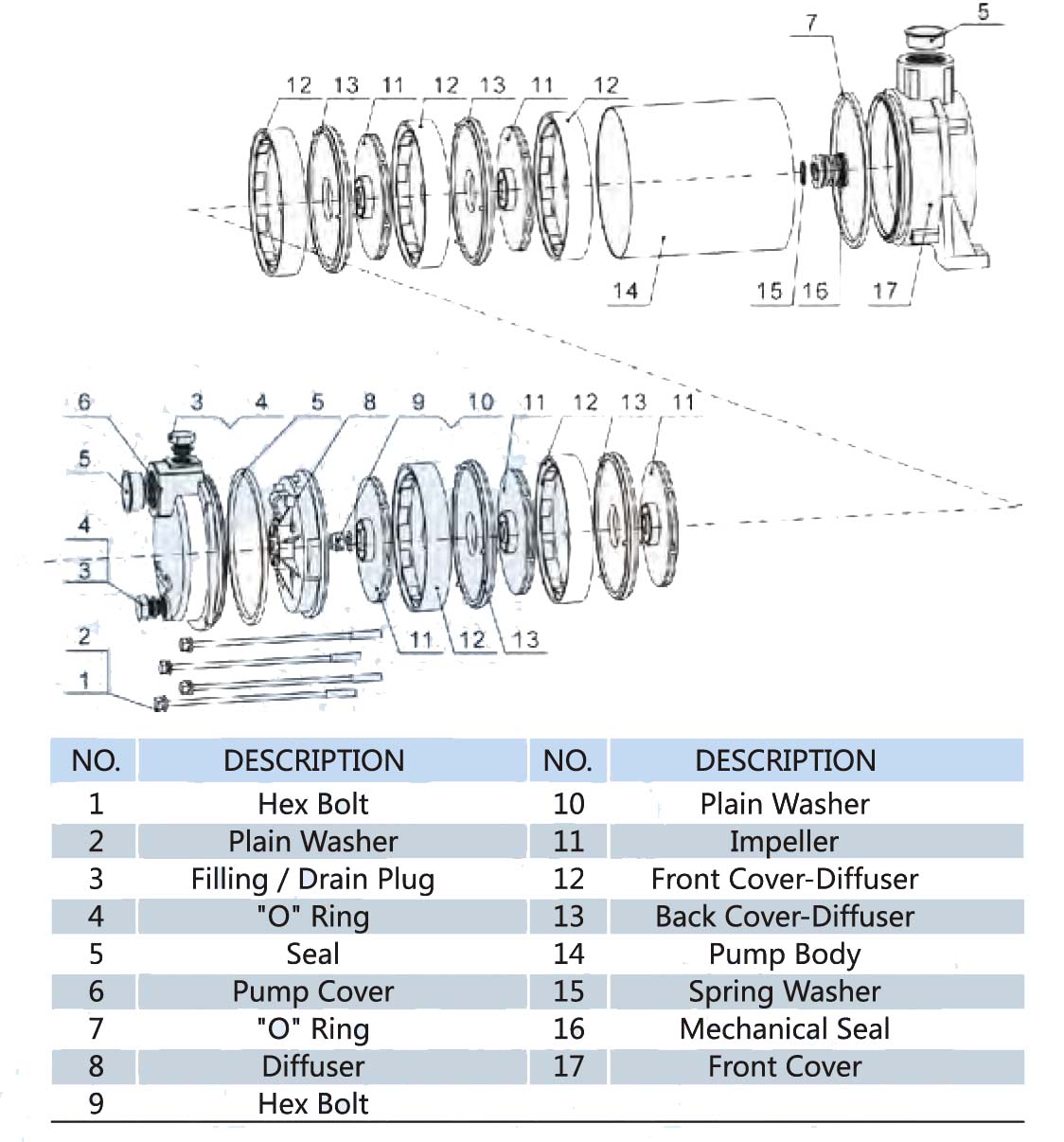

MATERIALS
8Pump body: Cast iron with stainless steel
8Pump support: Cast iron
8Motor housing: Aluminum
8Impeller: PPO/ SS304
8Shaft with rotor: AISI 416 stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing:  NSK, C&U, or local quality.

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Single-phase Motor

IMPELLER
PCS

H max

Q max

SIZE

SUCTION

20’
QUANTITY

Input

Output Power

m

L/min

inch

m

KW

KW

HP

MH-370

0.55

0.37

0.5

3

30

60

1’’X 1’’

9

2060

MH-550

0.8

0.55

0.74

4

40

60

1’’X 1’’

9

1945

MH-750

1.1

0.75

1.0

5

50

65

1’’X 1’’

9

1842

MH-1000

1.0

0.65

0.9

3

33

70

1’’X 1’’

9

1949

MH-1200

1.2

0.75

1.0

4

43

80

1’’X 1’’

9

1410

MH-1300

1.3

0.9

1.25

5

52

80

1’’X 1’’

9

1350

MH-1500

1.5

1.1

1.5

6

65

80

1’’X 1’’

9

1336

MH-1800

1.5

1.1

1.5

4

50

180

1.25’’X1.25’’

9

1235

MH-2200

2.1

1.65

2.2

5

60

180

1.25’’X1.25’’

9

1175

MH-3000

2.9

2.2

3

6

70

190

1.25’’X1.25’’

9

1121

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
