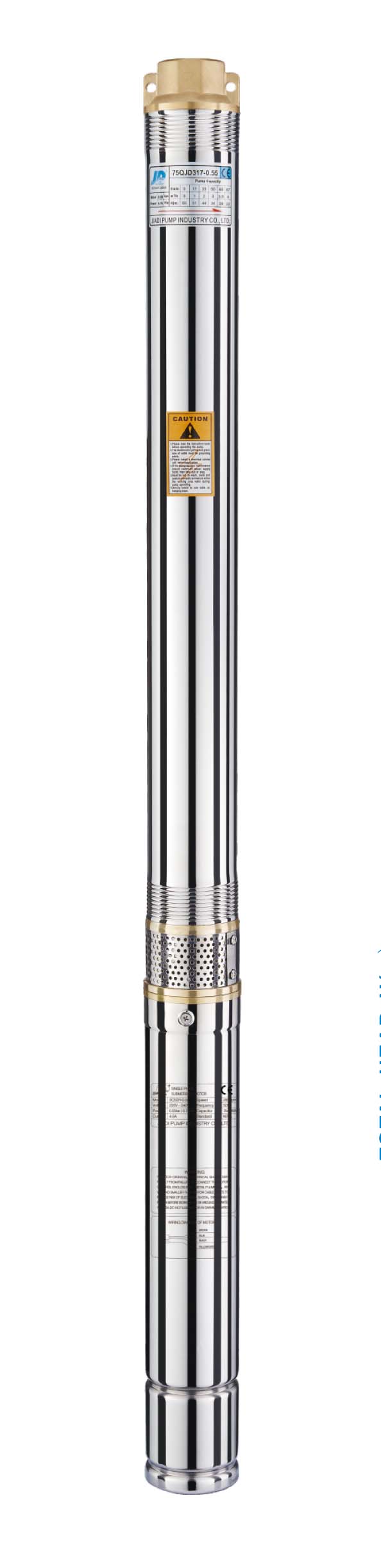

3" (75QJ4) SUBMERSIBLE  PUMP

TECHNICAL DATA:

-Pump(75QJ4)

8Qmax: 6(m3/h)
8Capacity from 1 to 6 (m3/h)
8Total head from 102 to 8 (m).



-Motor

8Rewindable oil-filled motor
8Power:0.25 to 1.5 KW (Single phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ75mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 3''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.



WARRANTY: 1 YEAR (according to our general sales conditions):



Type

Motor
power

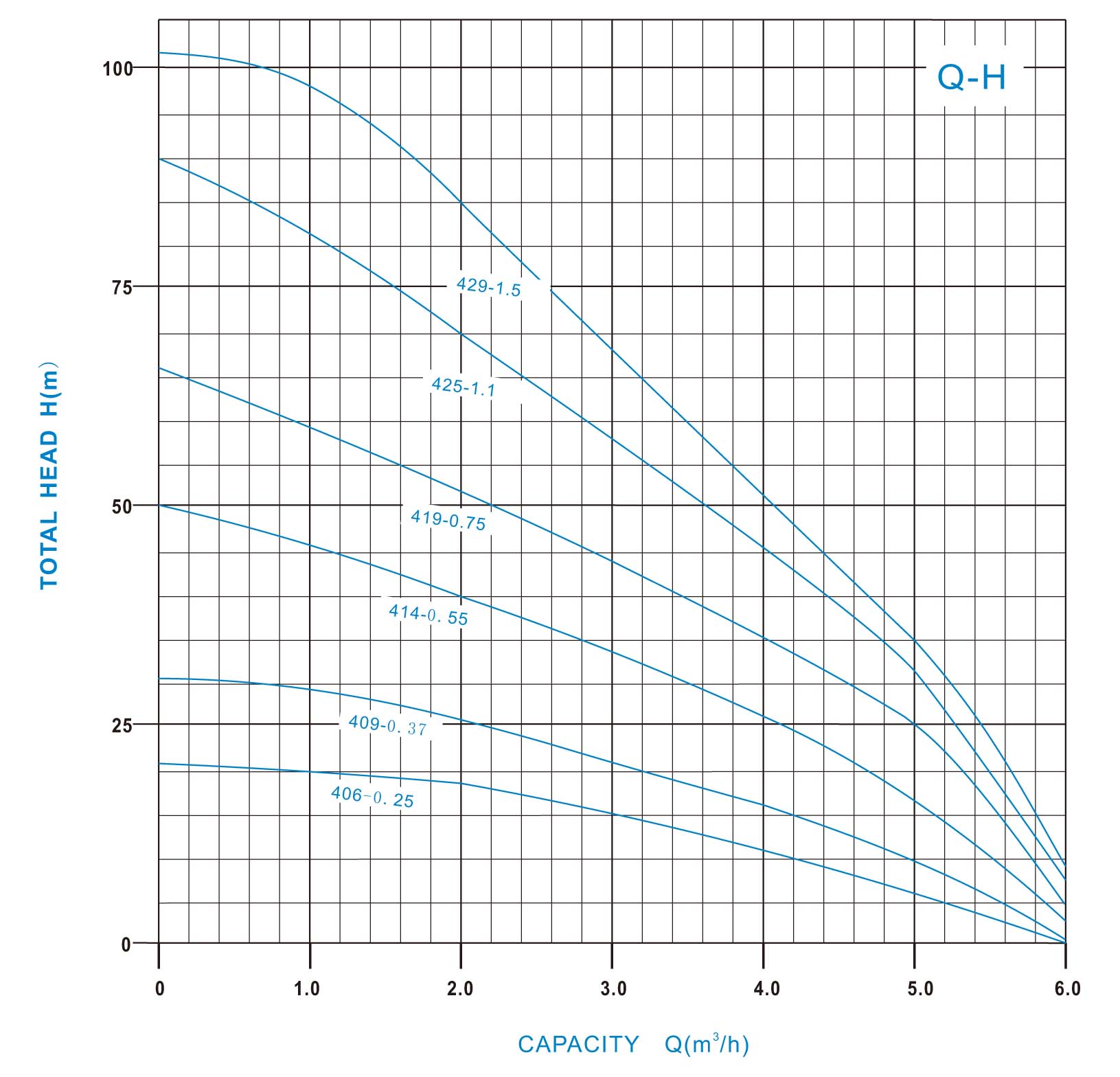

Capacity and head

Length
(mm)

Single phase

l/min

0

17

33

50

67

83

100

220-240~50Hz

kW

Hp

m3/h

0

1

2

3

4

5

6

75QJD406-0.25

0.25

0.33

Head
(m)

21

20

18

13

11

7

0

732

75QJD409-0.37

0.37

0.5

31

29

26

21

17

11

1

863

75QJD414-0.55

0.55

0.75

49

46

40

33

26

18

3

1113

75QJD419-0.75

0.75

1

67

63

55

45

36

24

4

1336

75QJD425-1.1

1.1

1.5

86

81

70

59

46

32

7

1627

75QJD429-1.5

1.5

2

102

98

84

71

57

39

8

1786



8Single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz are available on request.
