    Home > Products > Garden pump > Submersible Pump

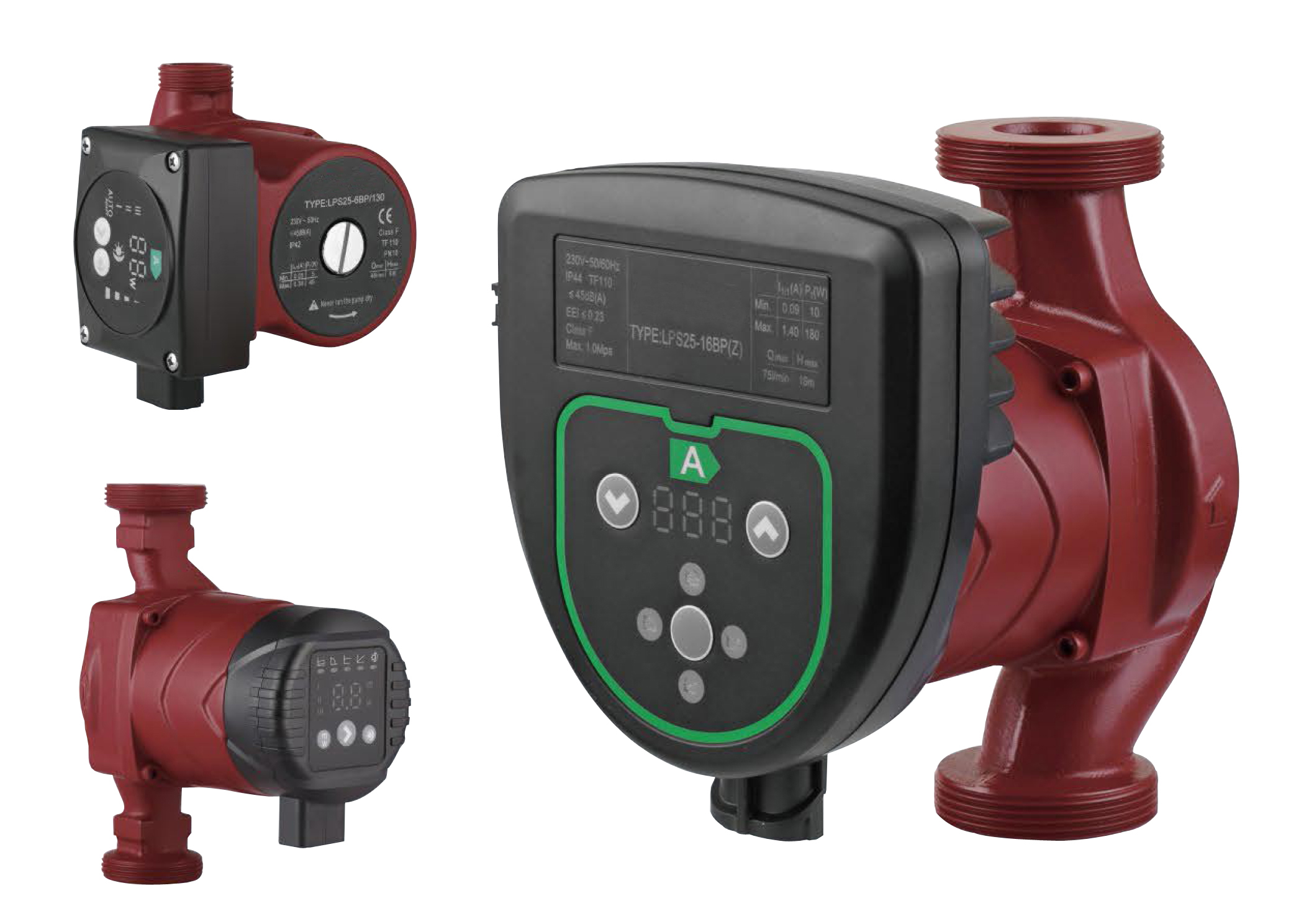

CLASS INTELLIGENT CIRCULATING PUMPS (AUTOMATIC)

RANGE OF PERFORMANCE
8Flow rate up to 150 L/min
8Head up to 21 m

LIMITS OF USE
8Fluid temperature: -10℃~ +65℃
8Max. ambient temperature +40℃
8Max. working pressure up to 10 bar

MOTOR
8Non-overloading 1-phase induction motor (n=2850rpm)
8Insulation Class B/F
8Protection grade IP44

CONSTRUCTION MATERIALS
8Pump body: Cast iron
8Impeller: PP (SS304)
8Shaft: Porcelain or stainless steel
8Bearing:  Ceramic

MOUNTING POSITION
Pump shaft in the horizontal plane

PUMP EQUIPMENT
8Screwed end single head pump
8Manual 3-speed control or flow switch automatic control
8Non-overloading single phase motor
8Cast iron body, 160mm,port-to-port

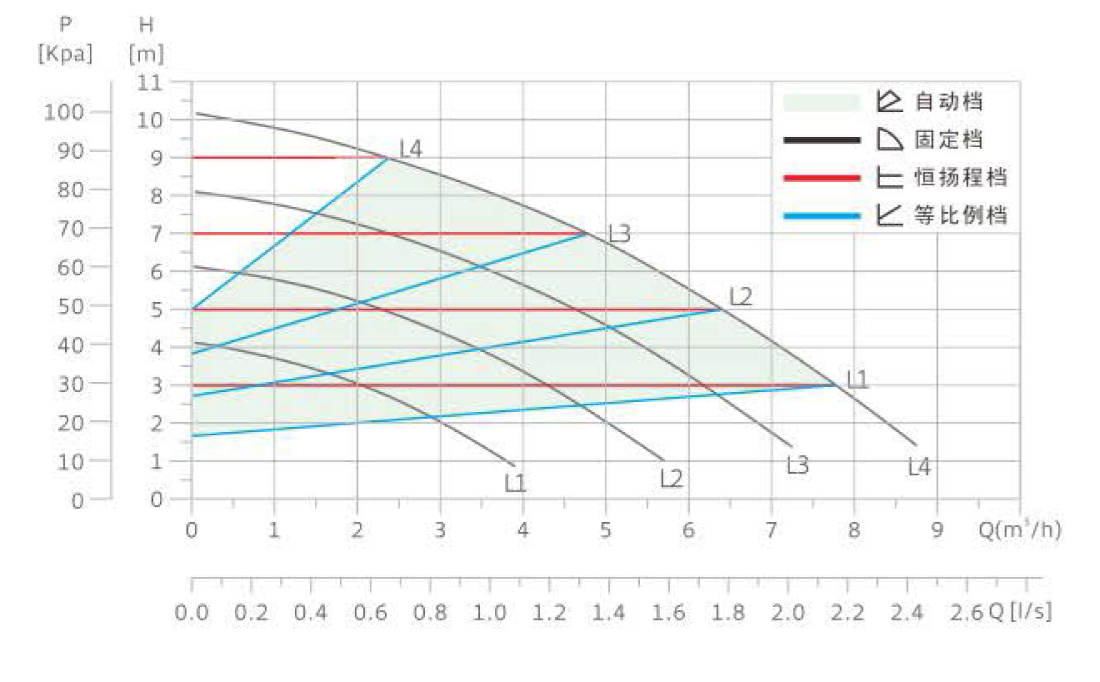

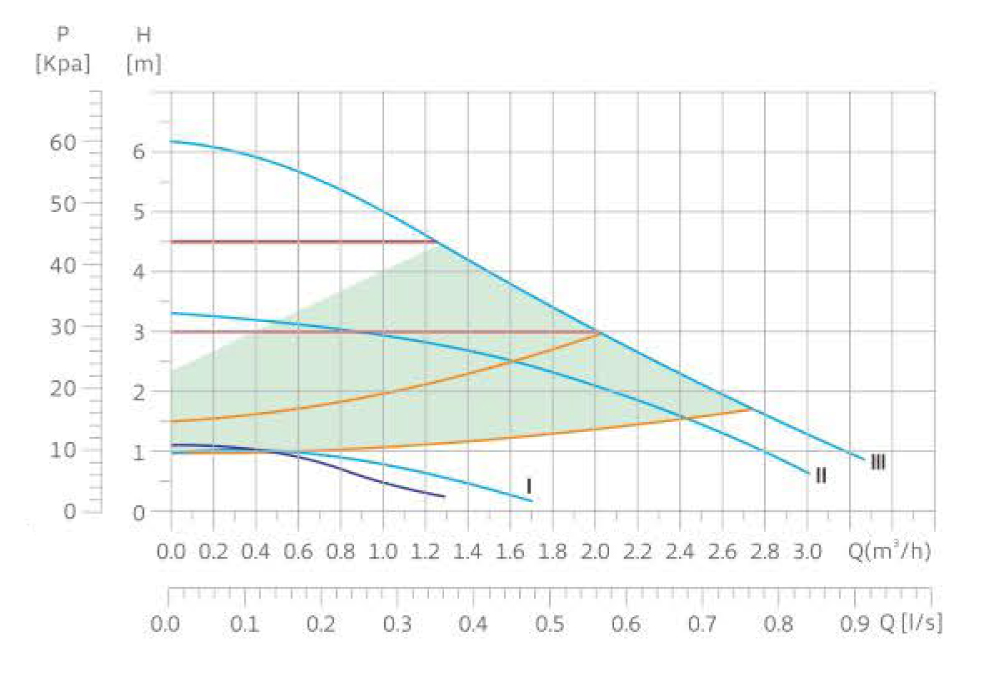

PERFOMANCE CURVE



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

PIPE SIZE

POWER

MAX-FLOW

MAX-HEAD

PORT TO PORT

G.W

(W)

(L/MIN)

(M)

(MM)

(KG)

LPS25-4BP

G1’’,DN20MM

22

46

4

130

2.6

LPS25-5BP

G1.5’’,DN25MM

32

50

5

130

2.6

LPS25-6BP

G1.5’’,DN25MM

45

52

6

130

2.6

LPS40-4BP

G1.5’’,DN25MM

22

46

4

130/180

2.8

LPS40-5BP

G1.5’’,DN25MM

32

50

5

130/180

2.8

LPS40-6BP

G1.5’’,DN25MM

45

52

6

130/180

2.8

LPS50-4BP

G2’’,DN32MM

22

46

4

180

2.8

LPS40-8BP

G1.5’’,DN25MM

130

100

8

180

3.5

LPS50-8BP

G2’’,DN32MM

130

130

8

180

3.5

LPS40-10BP

G1.5’’,DN25MM

180

120

10

180

3.5

LPS50-10BP

G2’’,DN32MM

180

150

10

180

3.5

LPS25-16(Z)BP

G1’’,DN20MM

180

100

16

130

3

LPS15-21(Z)BP

Φ3/4,DN15MM

180

50

21

140

3
