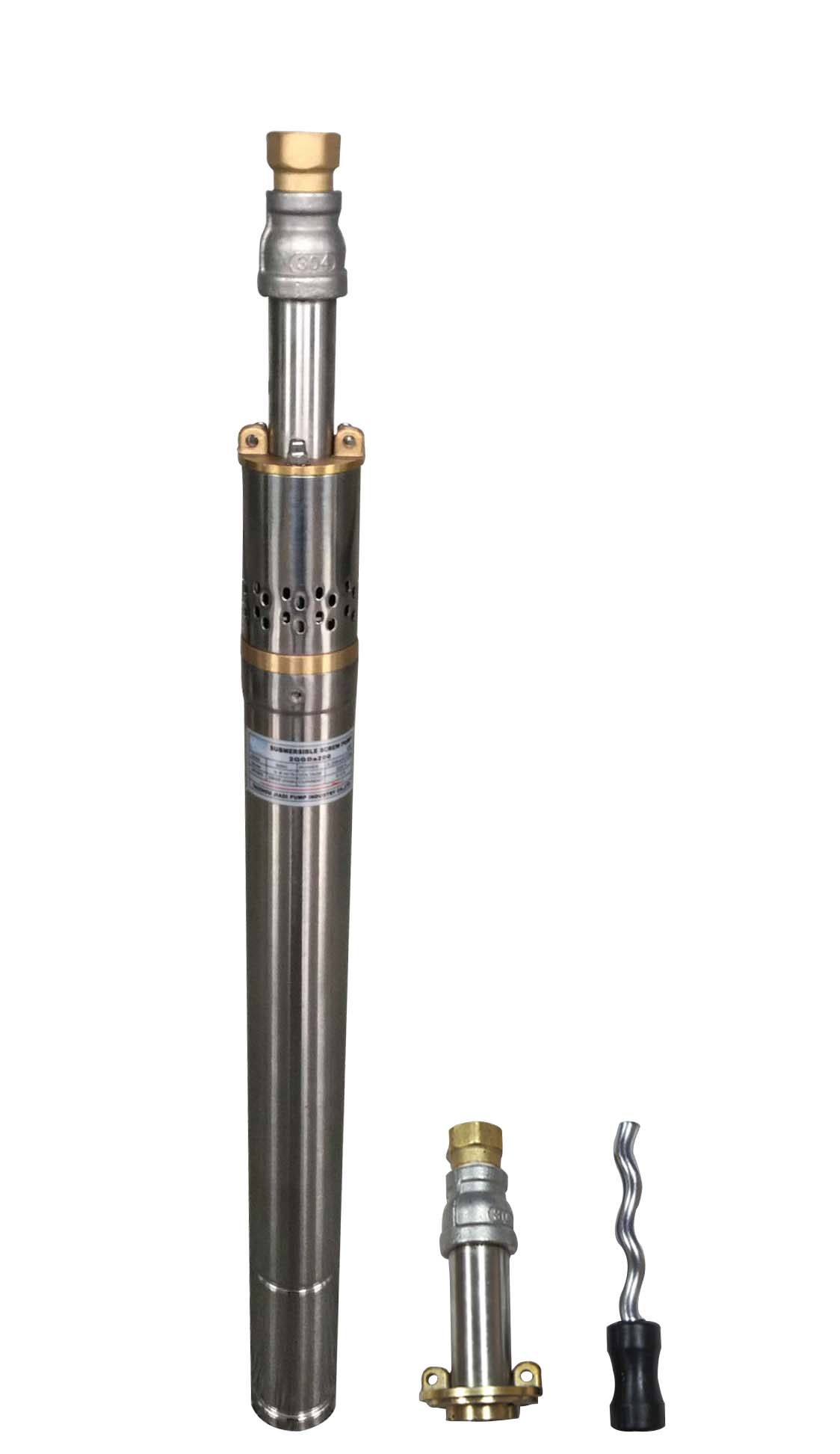

2''(QGD) SUBMERSIBLE SCREW PUMP

MAIN FEATURES:

8Single screw instead of impellers
8Oil-filled type motor
8Sandproof device
8High head and efficiency

TECHNICAL DATA:

-Pump:

8Qmax: 1.0(m3/h)
8Total head ：70 (m)

-MOTOR:

8Power: 220 w (1 phase)
8Insulation class : F
8Protection grade: IP 68
8Maximum sand content : 20g/m3
8Highest temperature of liquid : 30 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.


-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 2''.

-Materials:

8Pump casing: AISI 304 stainless steel
8Inlet/Outlet : Stainless steel
8Screw : Steel
8Bottom support : Stainless steel
8Shaft : AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: Graphite-Ceramic.

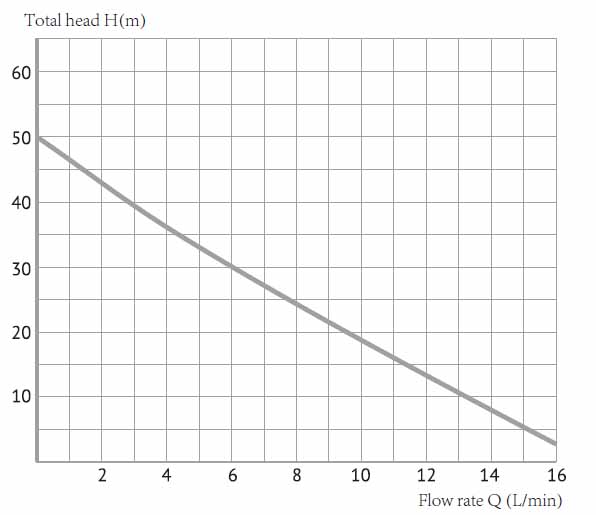

PERFOMANCE CURVE

WARRANTY: 1 YEAR (according to our general sales conditions)

,, ,

Type

Motor power

Capacity

Voltage/Frequency

Speed

Outlet

Length

kW

Hp

Q(max)

H(max)

     V/Hz

rpm

Inch

mm

2QGDa200

0.2

0.27

1.0m3/h

70m

    220/50

2850

G1/2''

 670
