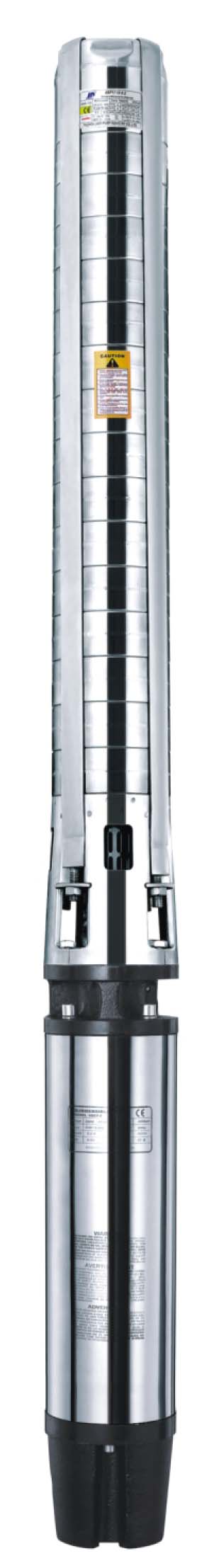

6" (6SP20) STAINLESS STEEL SUBMERSIBLE  PUMP

TECHNICAL DATA:

8Qmax: 41(m3/h)
8Capacity from 5 to 25 (m3/h)
8Total head from 241 to 150 (m).



-Motor

8Rewindable oil-filled motor
8Power: 3 to 18.5 KW (Single phase)
8Insulation class : F
8Protection grade: IP 68
8Maximum diameter : Φ143mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 6''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.








WARRANTY: 1 YEAR (according to our general sales conditions)

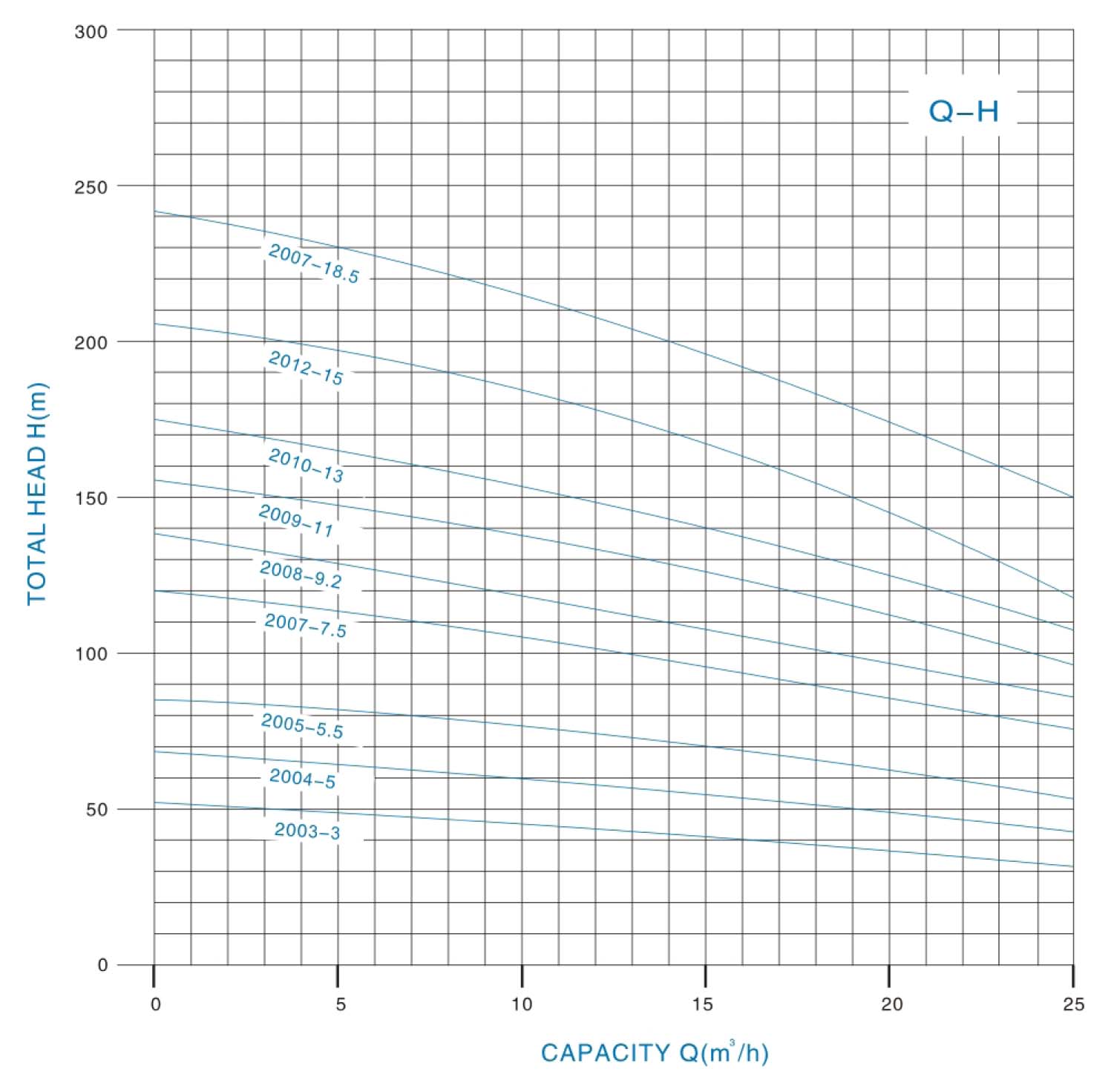

Type

Motor
power

Capacity and head

Length

Three phase

l/min

0

83

167

250

333

417

(mm)

220/380V~60Hz

kW

Hp

m3/h

0

5

10

15

20

25



6SP2003-3

3

4

Head
(m)

52

48

44

42

39

32

1040

6SP2004-5

4

5.5

69

64

59

56

52

43

1115

6SP2005-5.5

5.5

7.5

86

80

74

70

65

54

1195

6SP2007-7.5

7.5

10

120

112

104

98

90

75

1335

6SP2008-9.2

9.5

12.5

138

128

118

112

103

86

1390

6SP2009-11

11

15

155

144

133

126

116

96

1475

6SP2010-13

13

17.5

172

160

148

140

129

107

1560

6SP2012-15

15

20

206

192

178

168

155

125

1710

6SP2017-18.5

18.5

25

241

224

207

196

181

150

2015

8Single-phase 220/380V-60Hz , are available on request.
