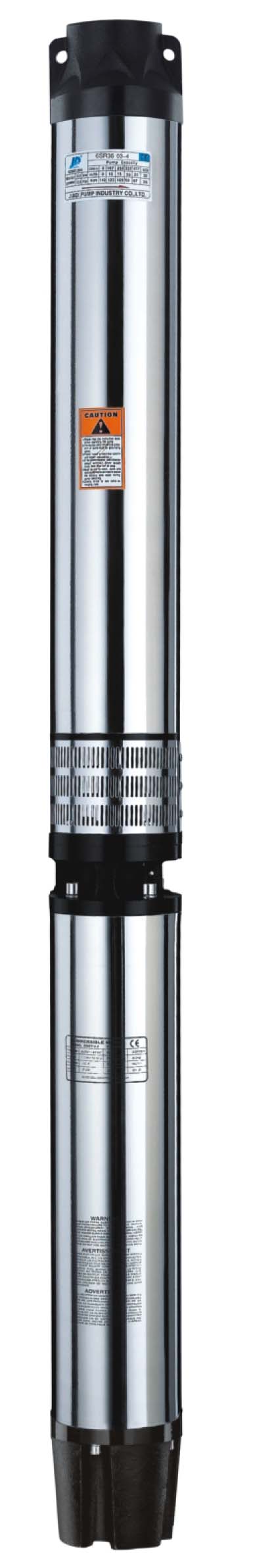

6" (6SR36) SUBMERSIBLE  PUMP

TECHNICAL DATA:

8Qmax: 64(m3/h)
8Capacity from 10 to 60 (m3/h)
8Total head from 170 to 26 (m).



-Motor

8Rewindable oil-filled motor
8Power:5.5 to 18.5 KW (Single phase)
8Insulation class : F
8Protection grade: IP 68
8Maximum diameter : Φ143mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 6''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.








WARRANTY: 1 YEAR (according to our general sales conditions)



,

Type

Motor
power

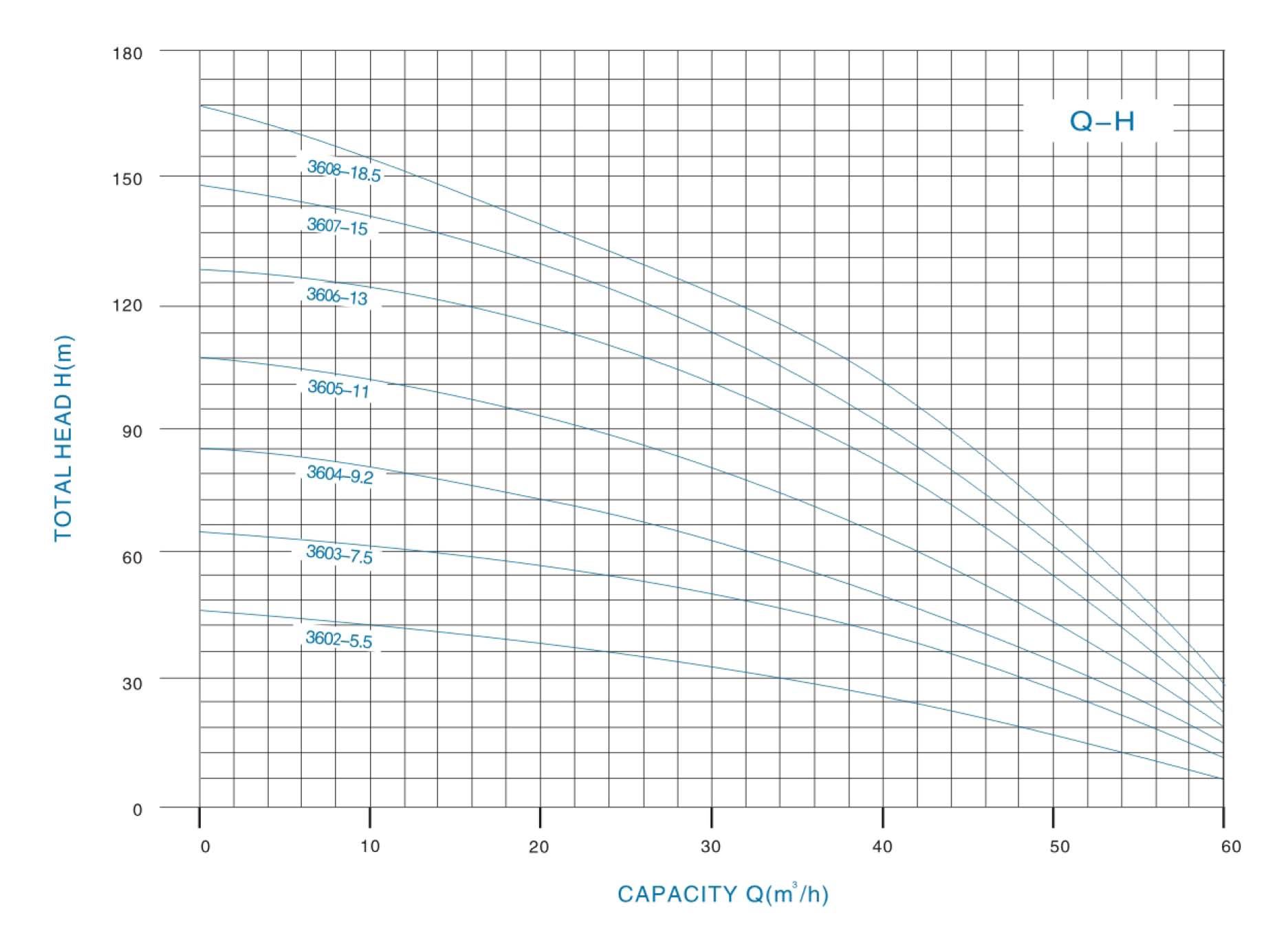

Capacity and head

Length

Three phase

l/min

0

167

250

333

418

500

600

667

833

1000

(mm)

220/380V~60Hz

kW

Hp

m3/h

0

10

15

20

25

30

36

40

50

60



6SRm3602-5.5

5.5

7.5

Head
(m)

43

40

38

35

33

31

28

26

18

6

1214

6SRm3603-7.5

7.5

10

64

61

56

53

49

46

42

38

26

10

1361

6SRm3604-9.2

9.2

12.5

85

81

75

70

66

61

56

51

35

13

1470

6SRm3605-11

11

15

107

101

94

88

82

77

70

64

44

16

1607

6SRm3606-13

13

17.5

128

121

113

105

98

92

83

77

53

19

1745

6SRm3607-15

15

20

149

141

132

123

115

107

97

90

62

22

1903

6SRm3608-18.5

18.5

25

170

162

150

140

131

122

111

102

71

26

2080



8Single-phase 110/220V-60Hz , are available on request.
