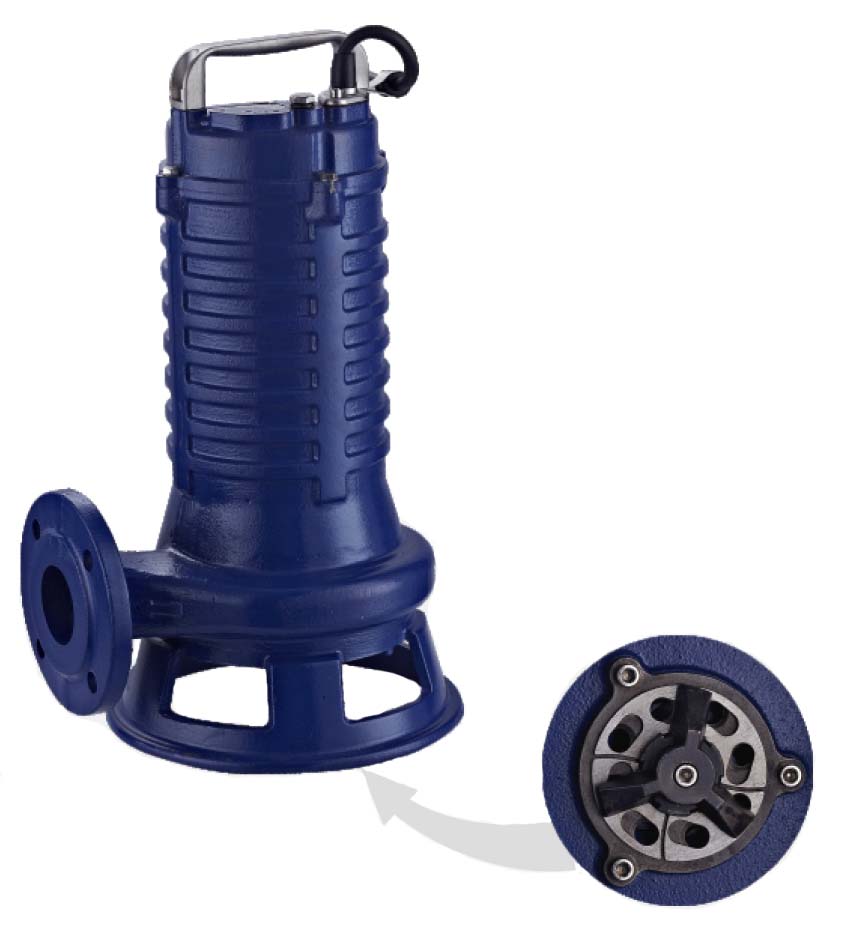

KPW MODEL SUBMERSIBLE SEWAGE PUMP

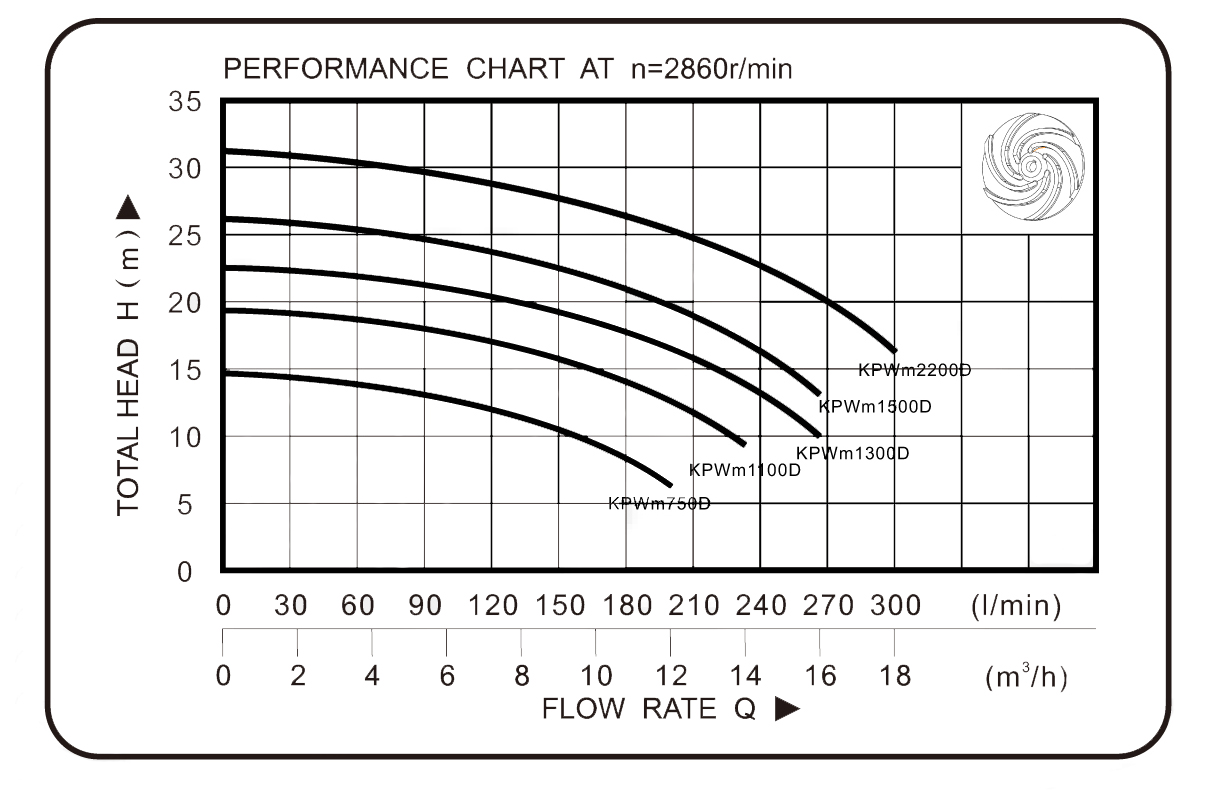

RANGE OF PERFORMANCE
8Flow rate: up to 300 L/min (18000 m3/h)
8Head: up to 30 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 35mm

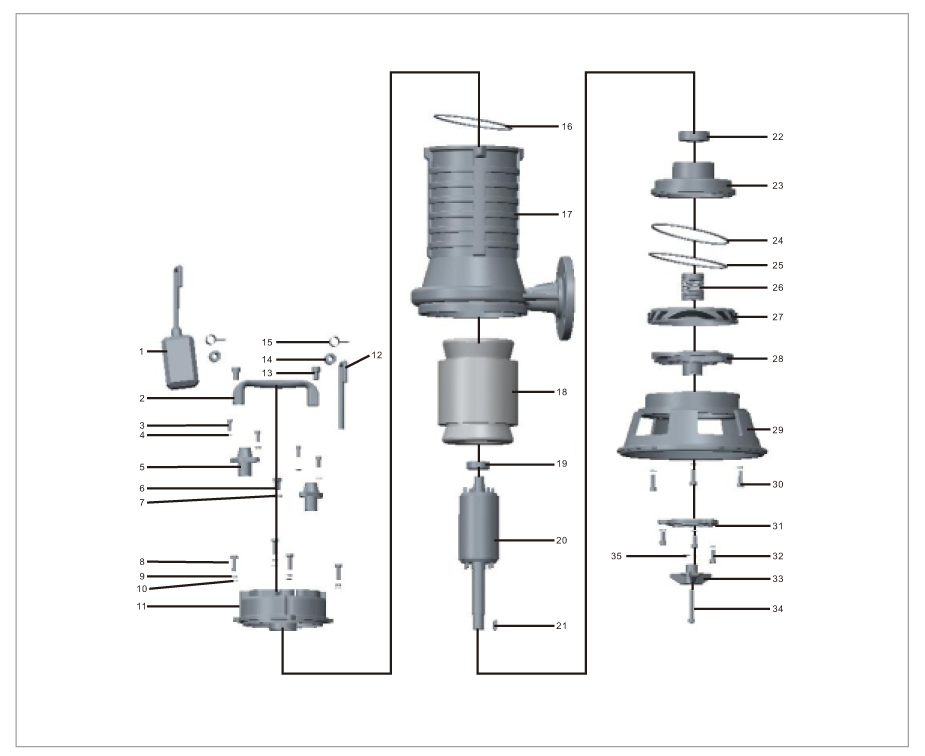

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Float Swift 13 Screw 25 "O" ring 37
2 Handle 14 Cable protector 26 Mechanical seal 38
3 Screw 15 Cable presser 27 Oil chamber cover 39
4 Washer 16 "O" ring 28 Impeller 40
5 Plug 17 Pump body 29 Pump base 41
6 Screw 18 Stator 30 Screw 42
7 Washer 19 Bearing 31 Fixed cutter 43
8 Screw 20 Rotor 32 Screw 44
9 Washer 21 Key 33 Rotation Cutter 45
10 Washer 22 Bearing 34 Screw 46
11 Capacitor cover 23 Upper Bearing Holder 35 Washer 47
12 Cable Wiring 24 "O" ring 36   48





WARRANTY: 1 YEAR (according to our general sales conditions):



Model Power Outlet Voltage/
frequency		 Max.
Flow		 Max.
Head		 G.W. Dimensions
(kw (mm) (V/HZ) (l/min) (m) (kg) (cm)
KPG750A 0.75 40 380/50 200 14 25.5 26.8*15.2*41.3
KPG1100A(F) 1.1 40 220/50 233 19 26 26.8*15.2*41.3
KPG1300A(F) 1.3 50 220/50 250 22 29.5 26.8*15.2*41.3
KPG1500A(F) 1.5 50 220/50 250 26 30 26.8*15.2*41.3
KPG2200A(F) 2.2 65 220/50 300 30 33.5 26.8*15.2*41.3

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request
