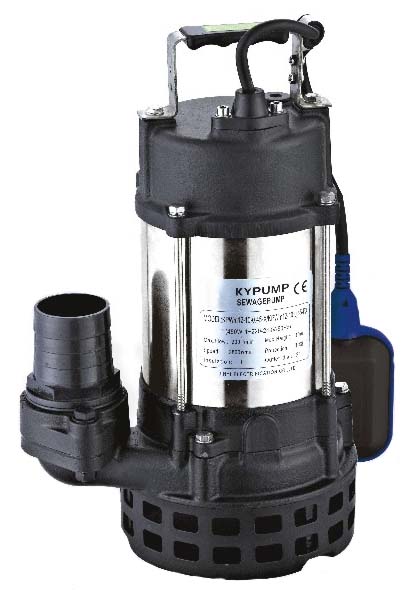

STAINLESS STEEL CASING STANDING SUBMERSIBLE SEWAGE PUMP

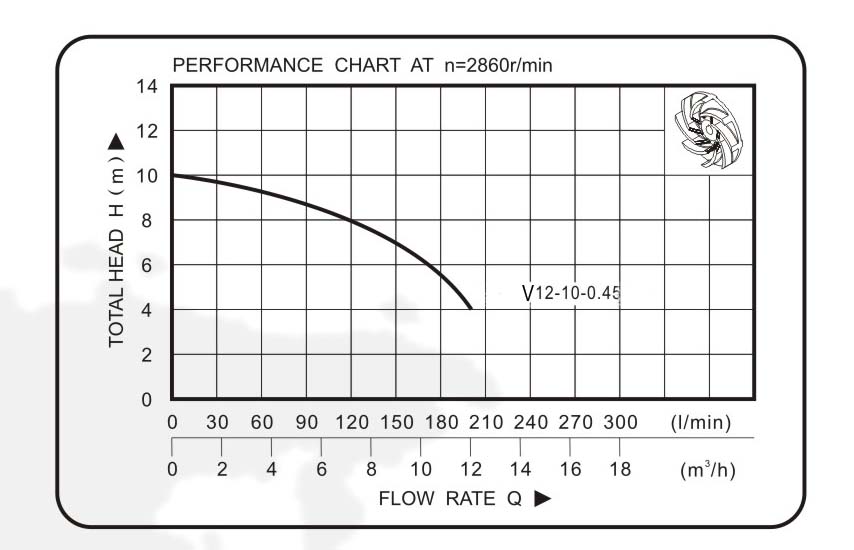

RANGE OF PERFORMANCE
8Flow rate:  up to 200 L/min (3.3m3/h)
8Head: up to 10 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4~10
8The grain diameter of the solids in the water is no bigger than 5 mm















WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET
Voltage/Frequency
G.W
PACKING DIMENSION
(w)
(m)
(l/min)
(mm)

(V/Hz)

(K.g)
(cm)
V12-10-0.45
450
10
200
50

220-240/50

13.8
24.5X19.5X39.5

8220V/50Hz  &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
