    Home > Products > Garden pump > Submersible Pump

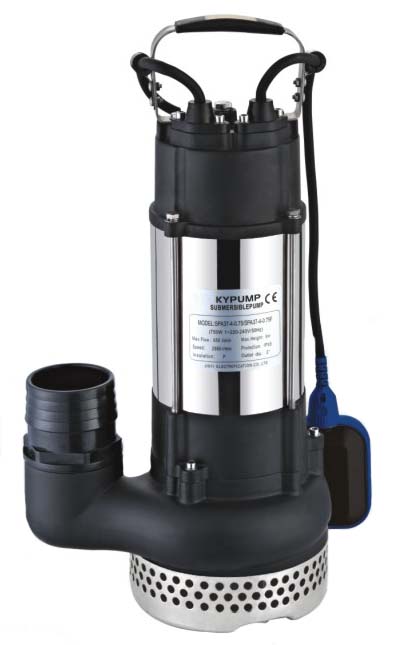

SPA SERIES STAINLESS STEEL CASING STANDING SUBMERSIBLE PUMP

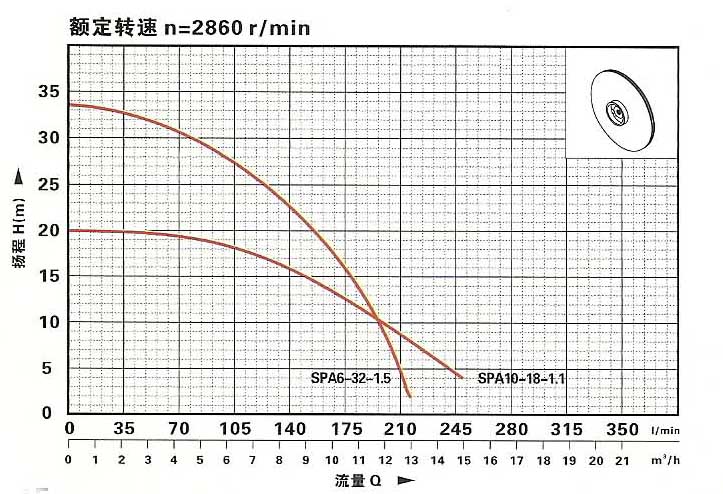

RANGE OF PERFORMANCE
8Flow rate:  up to 650 L/min (10.8m3/h)
8Head: up to 34 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :6.5~8.5
8The grain diameter of the solids in the water is no bigger than 2 mm

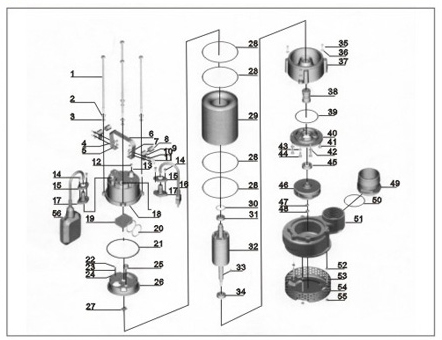

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 Cable 31 Bearing 46 Impeller
2 Stretching washer 17 Cable protector 32 Rotor 47 Stretching washer
3 Washer 18 Capacitor cover 33 Key 48 Nut
4 Bolt 19 Capacitor 34 Bearing 49 Out-let connector
5 Washer 20 "O" ring 35 Screw 50 "O" ring
6 Handle 21 Rubber washer 36 Washer 51 Pump body
7 Nut 22 Screw 37  Connection part 52 Nut
8 Protector 23 Stretching washer 38 Mechanical seal 53 Bilateral bolt
9 Cable presser 24 Washer 39 "O" ring 54 Filter mesh
10 Washer 25 Line protector 40 Oil chamber cover 55 Nut
11 Screw 26 Motor cover 41 Screw 56 Float switch
12 Bolt 27 Thermal protector 42 Washer 57
13 "O" ring 28 "O" ring 43 "O" ring 58
14 Screw 29 Stator 44 Screw 59
15 Flange 30 Undulated washer 45 Oil seal 60

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET
Voltage/Frequency
G.W
PACKING DIMENSION
(w)
(m)
(l/min)
(mm)

(V/Hz)
(K.g)
(cm)
SPA37-4-0.75F
750
8
650
75

220/50
24.5
27X22X55.5
SPA6-32-1.5F
1500
34
216
40,32,25

220/50
25
27X22X55
SPA10-18-1.1F
1100
20
250
40,32,25

220/50
21
27X22X50

8220V/50Hz  &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
