ZDB SERIES AUTO PERIPHERAL PUMPS


RANGE OF PERFORMANCE
8Flow rate up to 60 l/min(3.6m3/h)
8Head up to 50m

LIMITS OF USE
8Manometric suction lift up to 8m
8Liquid temperature up to +40℃
8Ambient temperature up to +90℃
8Max.Working pressure:6 bar

INSTALLATION AND USE
8They are recommended for pumping clean water without abrassive particles and liquid are chemically non-aggressive to the materials of which the pump is made.
8They are suitable for domestic and in particular for delivering water in combination small automatic pressure, as well as for irrigation.
8The pumps shall be installed in enclosed places, or at least protected against inclement..

MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44

MATERIALS
8Pump body: Cast iron,(HT200)
8Motor Bracket: Aluminum
8Impeller: Brass
8Motor shaft: CS45#
8Mechanical seal: Ceramic

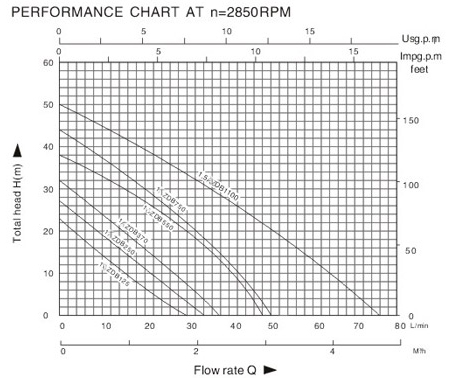

PERFORMANCE CHART AT N=2850rpm

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.FLOW
MAX.HEAD
INLET/OUTLET
MAX.SUCT
DIMENSION
(Kw)
(Hp)
(L/min)
(m)
(Inch)
(m)
(mm)
1ZDB125
0.125
0.17
24
35
1"*1"
9
280*225*305
1ZDB250
0.25
0.34
28
40
1"*1"
9
280*225*305
1ZDB370
0.37
0.5
32
45
1"*1"
9
280*225*305
1ZDB550
0.55
0.75
38
50
1"*1"
9
310*235*320
1ZDB750
0.75
1
44
60
1"*1"
9
345*250*335
1.5ZDB1100
1.1
1.5
50
80
1.5"*1.5"
9
360*280*370

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
