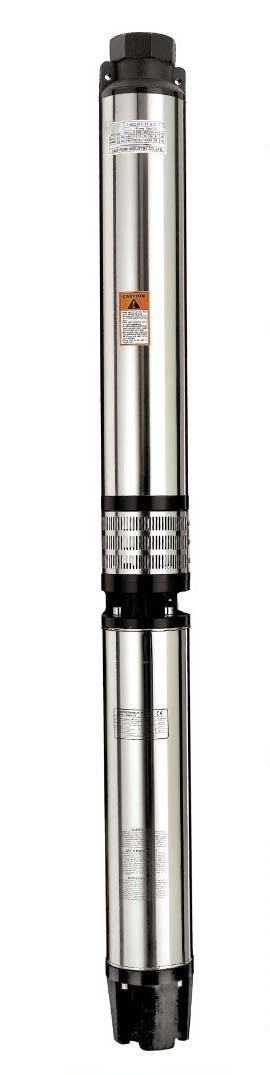

6SR27-36  SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

-Pump(6SR27):

8Qmax: 36(m3/h)
8Capacity from 5 to 38.8(m3/h)
8Total head from 44 to 281 (m)

-Pump(6SR36):

8Qmax: 55(m3/h)
8Capacity from 6 to 55 (m3/h)
8Total head from 308 to 20 (m)

-MOTOR:

8Rewindable oil-filled moter.
8Adopted the NEMA standard.
8Power : 3 to 18.5  KW--(6SR27)/4 to 18.5--(6SR36) (3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ143 mm
8Highest temperature of liquid : 35 ℃
8International standard: IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 6''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet: brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.





WARRANTY: 1 YEAR (according to our general sales conditions):

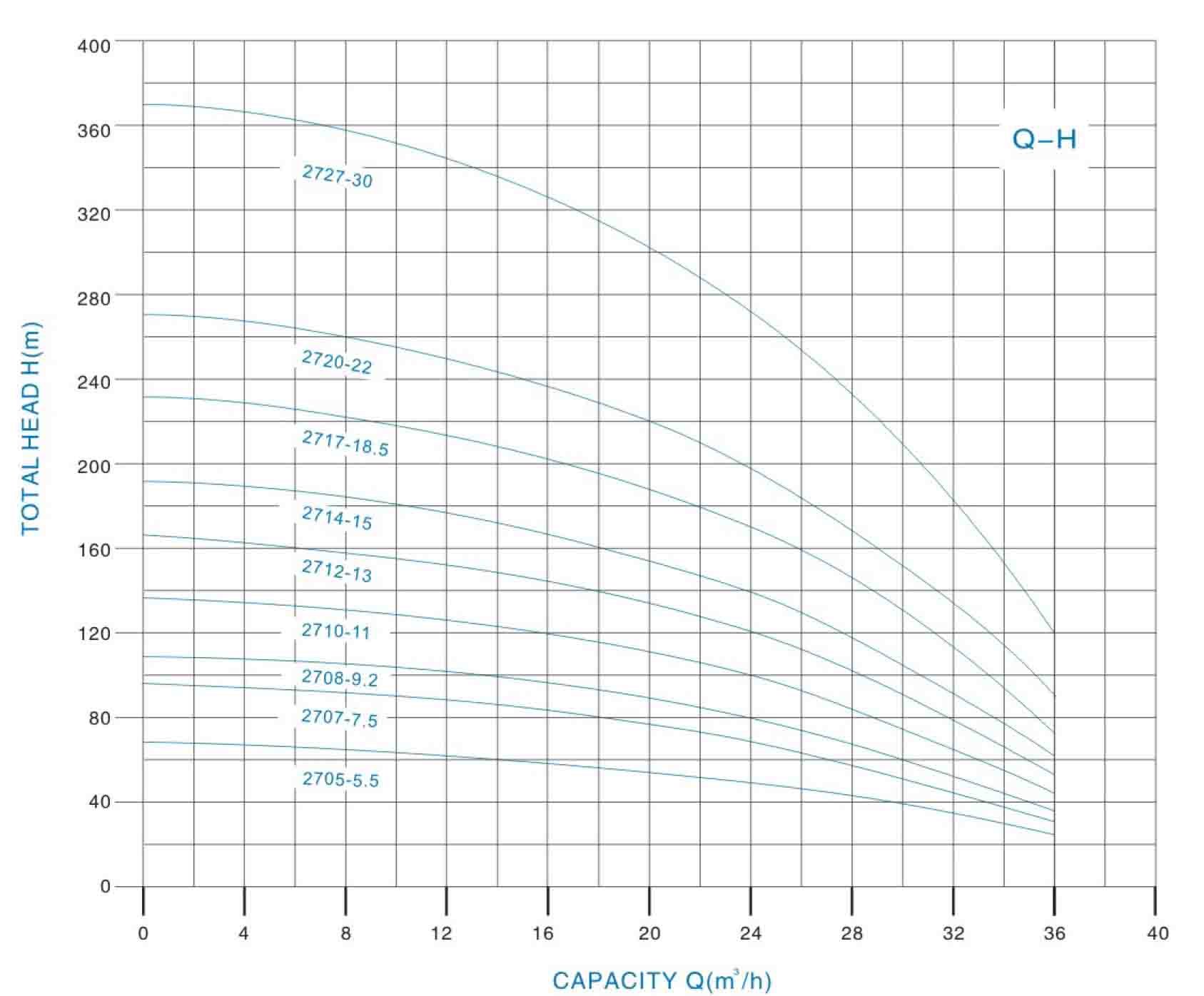

Type Motor
power		 Capacity and head  Length
(mm)
220-240V～50Hz 380-415V～50Hz l/min 0 83 167 250 333 417 450 500 583  644
kW HP m3/h 0 5 10 15 20 25 27 30 35 38.8
6SRm2703-3 6SR2703-3 3 4 Head
(m)		 44 43 40 35 32 27 24 19 10 2 1169
 6SRm2704-4  6SR2704-4 4 5.5 59 58 54 47 43

36

 32 26 13 2 1253
6SRm2706-5.5 6SR2706-5.5 5.5 7.5 89 88 81 71 64 54 48 39 20 3 1395
--- 6SR2708-7.5 7.5 10 118 116 109 94 85 72 64 52 26 3 1595
--- 6SR2710-9.2 9.2 12.5 148 146 136 118 107 90 80 65 33 4 1713
--- 6SR2712-11 11 15 177 174 163 141 128 108 96 78 39 4 1860
--- 6SR2713-13 13 17.5 192 189 177 153 139 117 104 84 43 5 1954
--- 6SR2715-15 15 20 222 219 204 177 160 135 120 97 49 6 2121
--- 6SR2719-18.5 18.5 25 281 277 258 224 203 171 152 123 63 7 2459

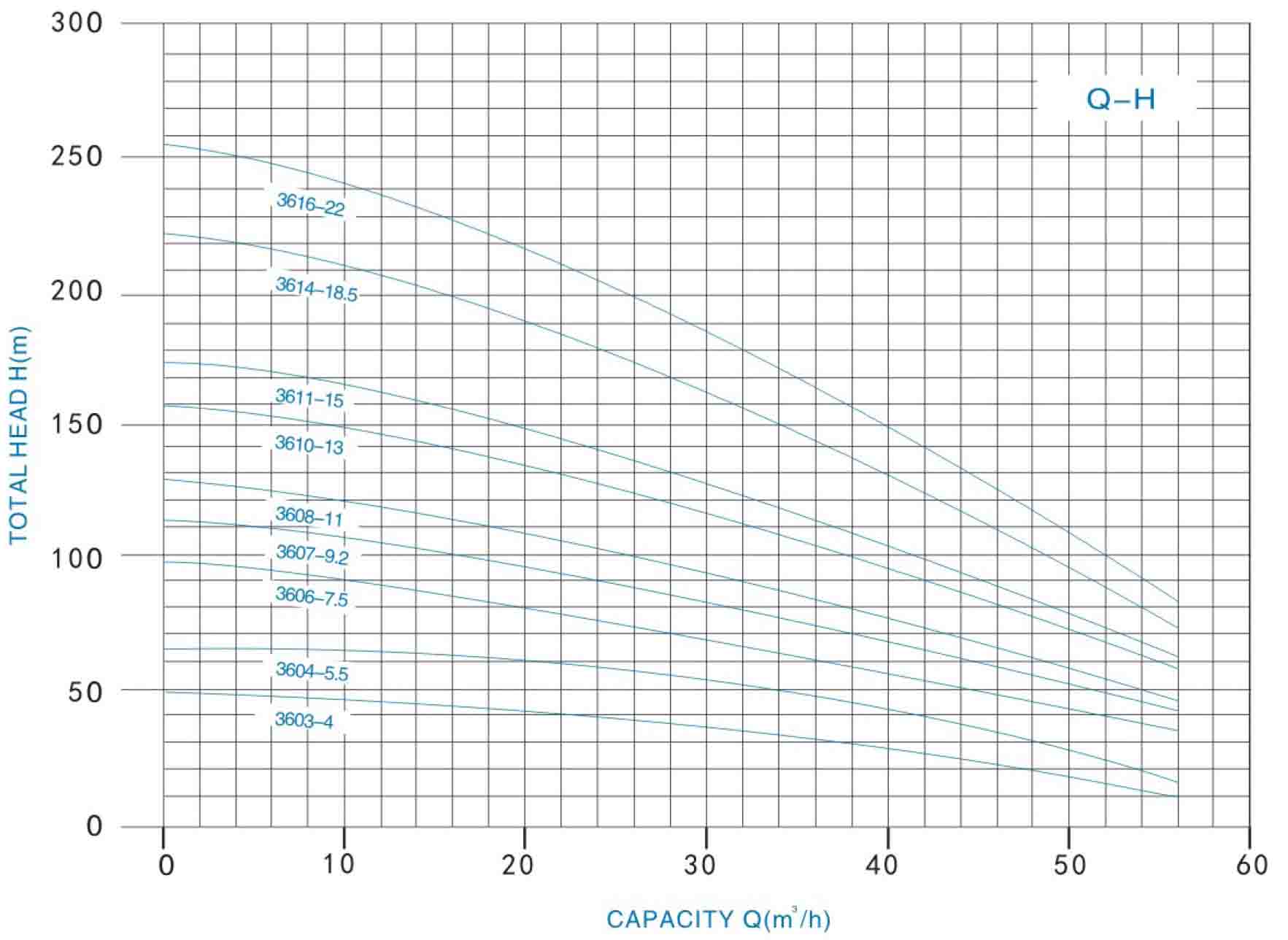

Type Motor
power		 Capacity and head Length
(mm)
220-240V～50Hz 380-415V～50Hz l/min 0 100 200 300 400 500 600 700 800 910
kW HP  m3/h 0 6 12 18 24 30 36 42 48 55
6SRm3603-4 6SR3603-4 4 5.5 Head
(m)		 48 47 44 41 38 34 29 23 15 2 1277
6SRm3604-5.5 6SR3604-5.5 5.5 7.5 64 63 59 55 51 45 39 31 20 3 1410
--- 6SR3606-7.5 7.5 10 96 94 89 83 76 67 58 46 30 4 1655
--- 6SR3607-9.2 9.2 12.5 112 110 104 97 89 79 68 54 36 5 1763
--- 6SR3608-11 11 15 128 125 118 110 102 90 78 61 41 6 1901
--- 6SR3610-13 13 17.5 160 157 148 138 127 112 97 77 51 6 2137
--- 6SR3611-15 15 20 176 172 163 152 140 123 107 84 56 7 2295
--- 6SR3614-18.5 18.5 25 224 219 207 193 178 157 136 107 71 9 2668
--- 6SR3616-22 22 30 256 251 237 221 204 180 156 123 81 11 2849

8Three-phase 220/380V-50Hz (60hz), is available on request.
