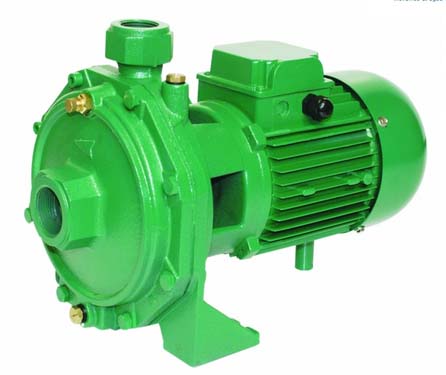

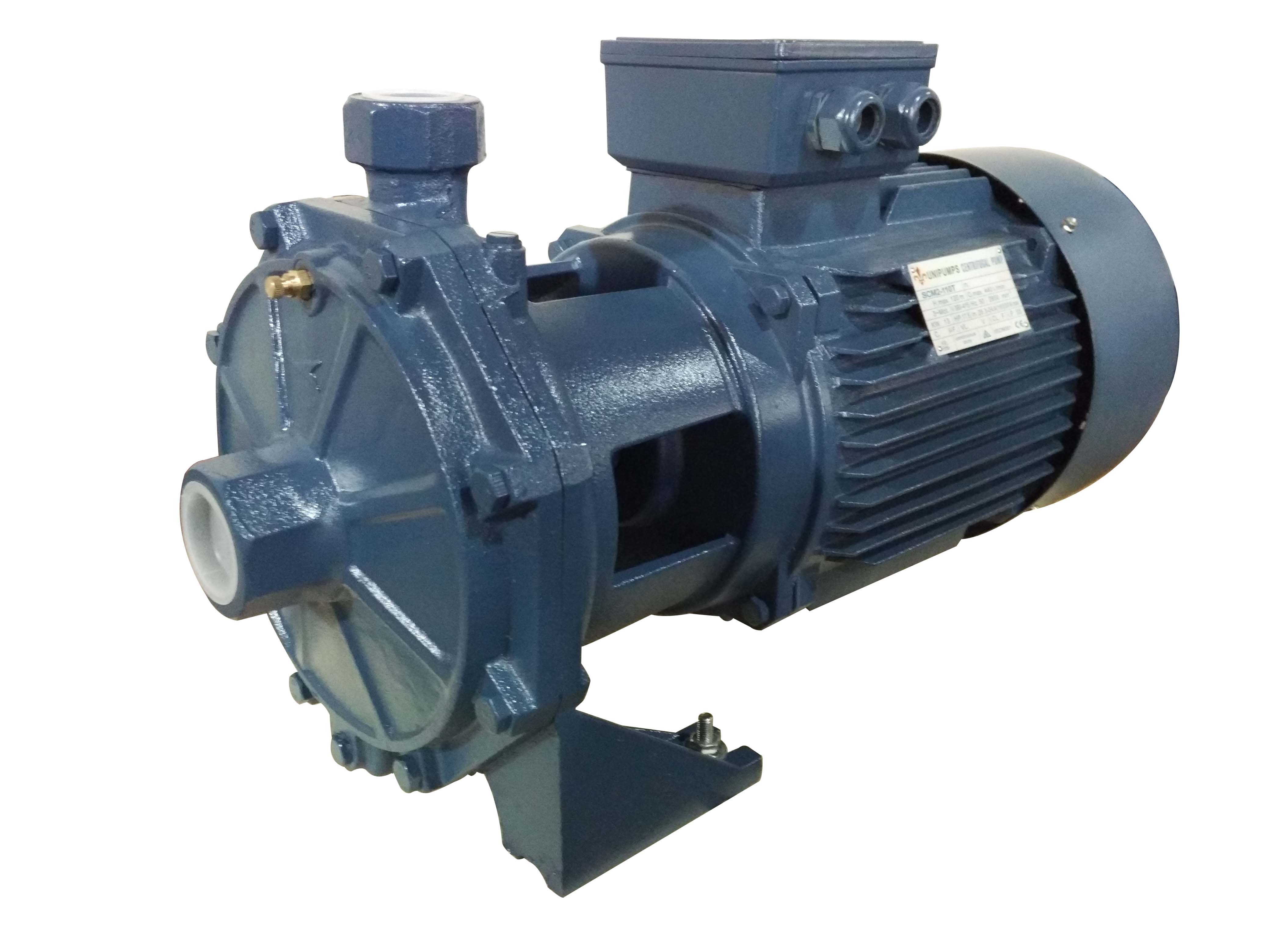

SCM2 SERIES CENTRIFUGAL PUMPS

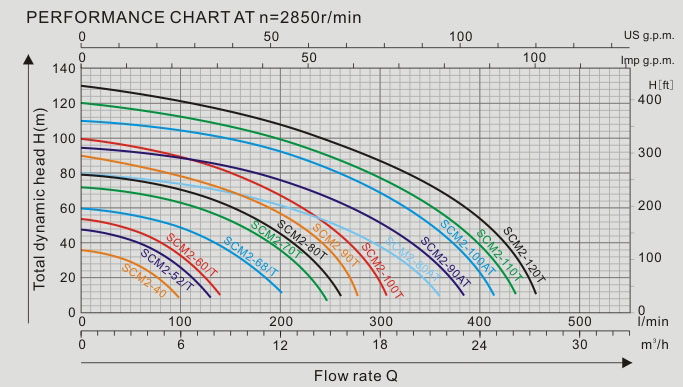

RANGE OF PERFORMANCE
8Flow rate up to 460 l/min
8Head up to 130m
LIMITS OF USE
8Manometric suction lift up to 7m
8Liquid temperature up to +60℃
8Environment temperature up to +40℃
INSTALLATION AND USE
8The SCM2 series are with two back to back impellers, it is use for high head values but if hard to reach with single impeller centrifugal pump, Suitable for civil and industrial uses to pump clean water and chemically non-aggressive liquid. Particularly be used for increasing the supply pressure, feesing boilers and loading extremely. These pumps should be installed in a covered area, protected against the weather.
MATERIALS
8Pump body: Cast iron.
8Motor: Closed,externally ventilated.
8Insulation class: B (Class F if required )
8Impeller: Double Brass Impeller
8Protection Class: IP44/IP54
8Mechanical Seal: Φ16, Φ18, Φ25, silicon carbide/graphite
8Shaft: Stainless steel AISI 420.
WARRANTY: 1 YEAR (according to our general sales conditions)
TYPE |
Power |
Ampere |
R.P.M |
Q.Max |
H.Max |
S.Head |
Pipe Dia |
N.W |
HP |
KW |
1-220V |
3-380V |
(l/min) |
(m) |
(m) |
|
(kg) |
SCM2-32 |
0.75 |
0.55 |
3.6 |
- |
|
90 |
30 |
9 |
1''X1'' |
16.2 |
SCM2-40 |
1 |
0.75 |
5 |
1.8 |
2850 |
100 |
35 |
18.8 |
SCM2-52/T |
1.5 |
1.1 |
7.5 |
2.7 |
2850 |
130 |
48 |
1 1/4''X1'' |
23.5 |
SCM2-60/T |
2 |
1.5 |
9.6 |
3.5 |
2850 |
140 |
52 |
24.5 |
SCM2-68/T |
3 |
2.2 |
13.5 |
5 |
2850 |
200 |
60 |
11/2''X11/4'' |
31 |
SCM2-70T |
4 |
3 |
- |
7.2 |
2850 |
240 |
70 |
39 |
SCM2-80T |
5.5 |
4 |
- |
9.3 |
2850 |
260 |
84 |
42.5 |
SCM2-90T |
7.5 |
5.5 |
- |
14.1 |
2850 |
280 |
90 |
2''X11/4'' |
62 |
SCM2-100T |
10 |
7.5 |
- |
15.0 |
2850 |
300 |
105 |
62 |
SCM2-80AT |
10 |
7.5 |
- |
15.0 |
2850 |
360 |
80 |
68 |
SCM2-90AT |
12.5 |
9 |
- |
18.0 |
2850 |
380 |
95 |
82 |
SCM2-100AT |
15 |
11 |
- |
21.8 |
2850 |
420 |
110 |
85 |
SCM2-110T |
17.5 |
13 |
- |
26.3 |
2850 |
440 |
120 |
2''X11/2'' |
110 |
SCM2-120T |
20 |
15 |
- |
30.5 |
2850 |
460 |
130 |
120 |
8Three-phase 220/380V-50Hz (60hz),220/440V-60Hz; Single phase 230V,240V,127V,110V,115V/60Hz models are available on request.
