TECHNICAL DATA:

-Pump:

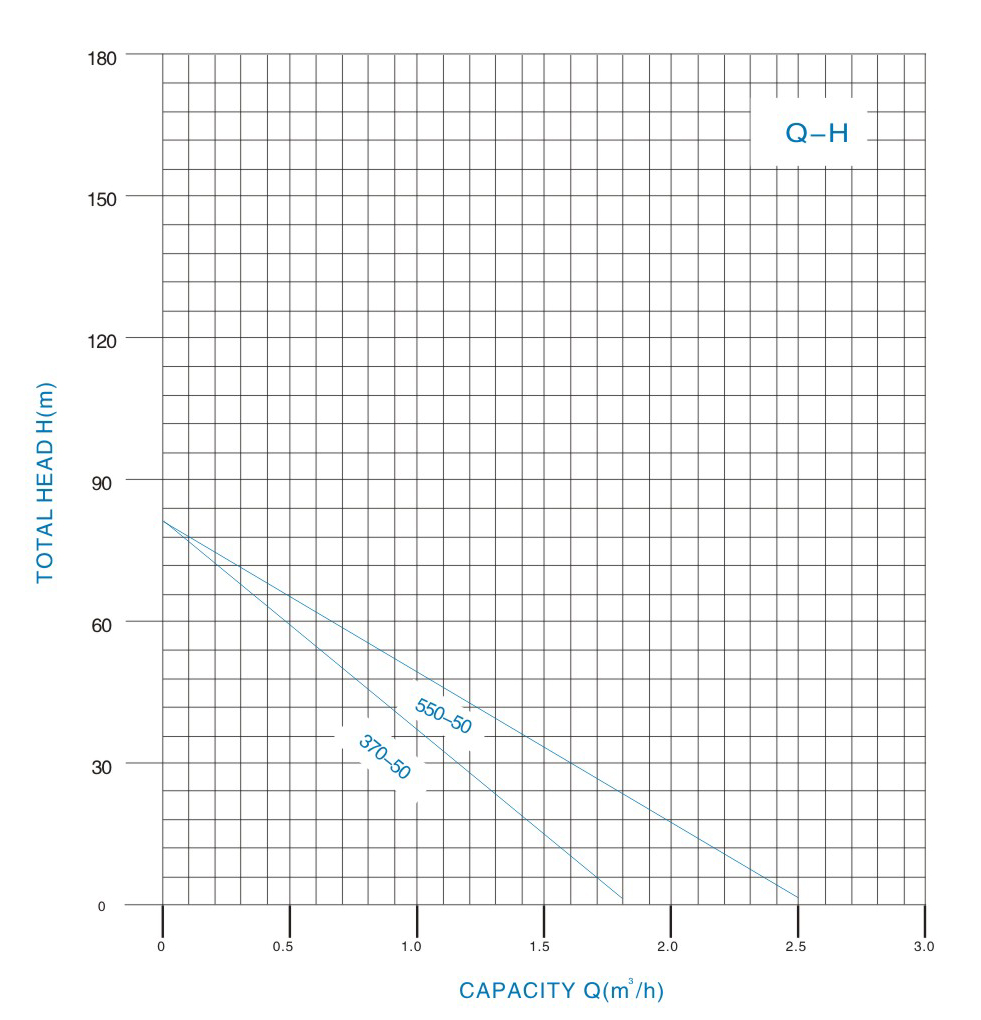

8Qmax: 2.5 (m³/h)
8Total head : 80  (m)

-MOTOR:

8Power: 0.37 to 0.55 kw (1 phase)
8Insulation class : F
8Protection grade: IP 68
8Maximum sand content : 20g/m³
8Highest temperature of liquid : 30 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.


-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: stainless steel
8Diffuser: stainless steel
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.
