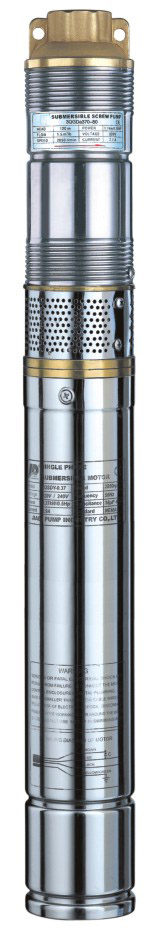

3''(QGD) SUBMERSIBLE SCREW PUMP

MAIN FEATURES:

8Single screw instead of impellers
8Oil-filled type motor
8Sandproof device
8High head and efficiency

TECHNICAL DATA:

-Pump:

8Qmax: 1.8 (m3/h)
8Total head from 80 to 130 (m)

-MOTOR:

8Power: 0.37 to 0.75 kw (1 phase)
8Insulation class : F
8Protection grade: IP 68
8Maximum sand content : 20g/m3
8Highest temperature of liquid : 30 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.


-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 3''.


-Materials:

8Pump casing: AISI 304 stainless steel
8Inlet/Outlet : Copper/Stainless steel
8Screw : Steel
8Bottom support : Stainless steel
8Shaft : AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: Graphite-Ceramic.



WARRANTY: 1 YEAR (according to our general sales conditions)

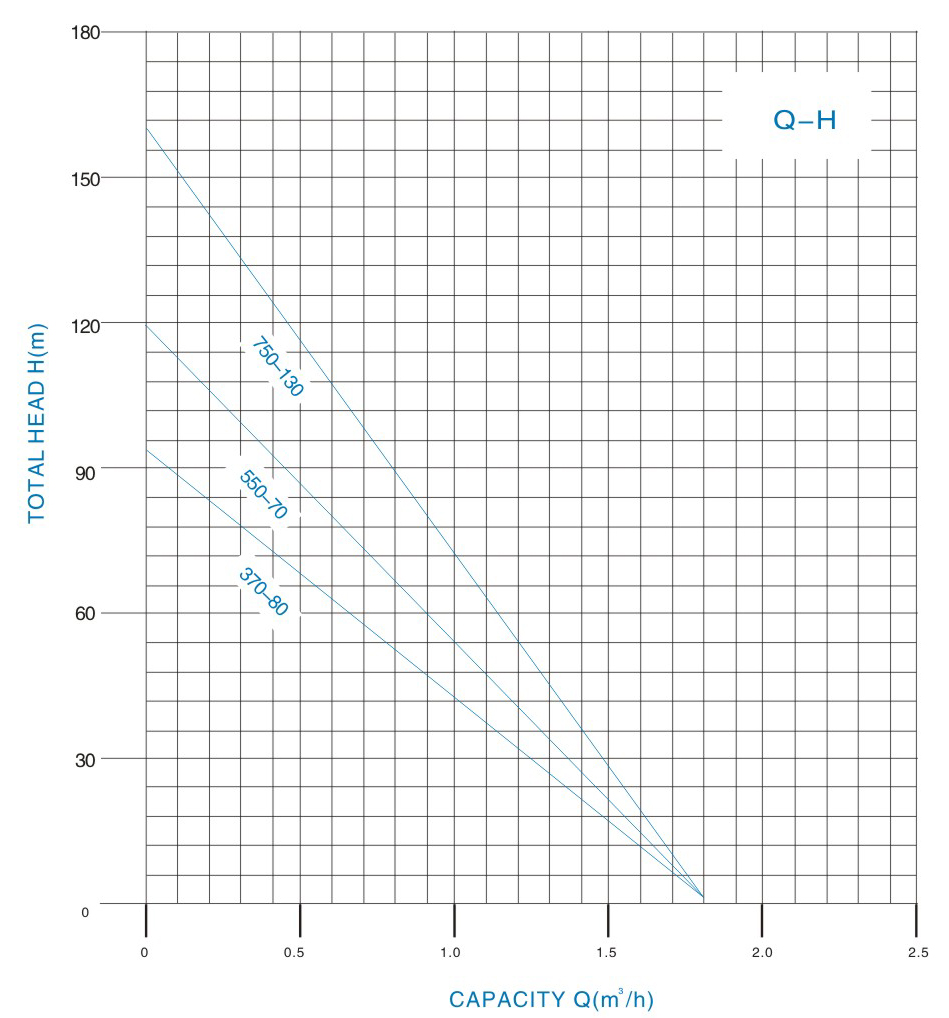

Type

Motor power

Capacity

Voltage

Max.Dia

Outlet

Length

kW

Hp

Q(max)

H(max)

V

mm

Inch

mm

3QGD370-80

0.37

0.5

1.8m3/h

80m

220/380

75

G1''

563

3QGD550-100

0.55

0.75

1.8m3/h

100m

623

3QGD750-120

0.75

1.0

1.8m3/h

130m

683

8Three-phase 220/380V-50Hz (60hz),  are available on request.
