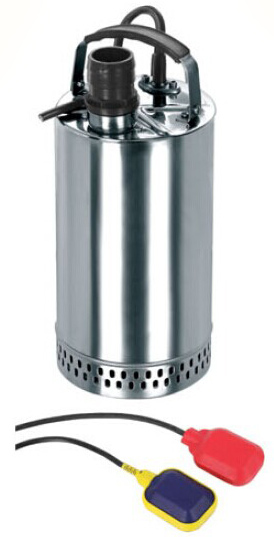

QDN SERIES STAINLESS STEEL SUBMERSIBLE PUMPS

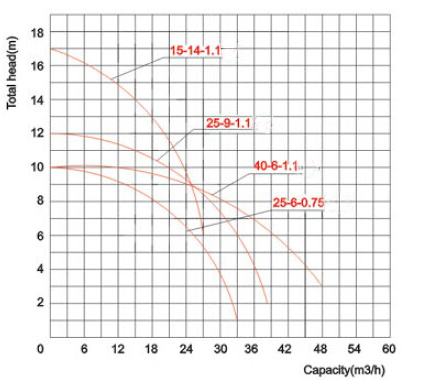

RANGE OF PERFORMANCE
8Flow rate up to 40 m3/h
8Head up to 17 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel.
8Environment temperature up to +40℃
8PH value in water : 4-10
8Maximum passage for suspended solids 2mm
WORKING PRINCIPLE
8Complete stainless steel structure,rust free and anti corrosion.No water diversion, convenient to use and easy to install. It can be made of standard AISI SS 304 (for PH value 4-10) or 316L (for PH value 0-12) on request to apply in medicine industry, food industry ,chemical industry and seawater industry etc.
STRUCTURAL CHARACTERISTIC
8Pump body : Stainless steel
8Impeller : Stainless steel with centrifugal radial flow type
8Motor body : Stainless Steel
8Mechanical seal : Stainless steel (SiC to SiC)
8Shaft : AISI SS420
8Bearing : C&U, NSK or China local
8Insulation class : B
8Protection class : IP 68
8With float switch (or without).
8With thermal overload protector in single phase motor.
WARRANTY: 1 YEAR (according to our general sales conditions)
|
Model |
Capacity |
Head |
Voltage/Frequency |
Output Power |
Discharge Size |
GW |
Packing Size |
|
M3/h |
m |
V/Hz |
KW/HP |
mm |
KGS |
mm |
|
QDN25-6-0.75 |
25/Max:33 |
6/Max:10 |
220/50,220/60 |
0.75KW(1hp) |
65 |
13.3 |
220*220*455 |
|
QDN15-14-1.1 |
15/Max:20 |
14/Max:17 |
220/50,220/60 |
1.1KW(1.5hp) |
50 |
14.5 |
220*220*470 |
|
QDN25-9-1.1 |
25/Max:40 |
9/Max:12 |
220/50,220/60 |
1.1KW(1.5hp) |
65 |
14.3 |
220*220*465 |
|
QDN40-6-1.1 |
40/Max:50 |
6/Max:10 |
220/50,220/60 |
1.1KW(1.5hp) |
65 |
14.3 |
220*220*465 |
