    Home > Products > Garden pump > Submersible Pump

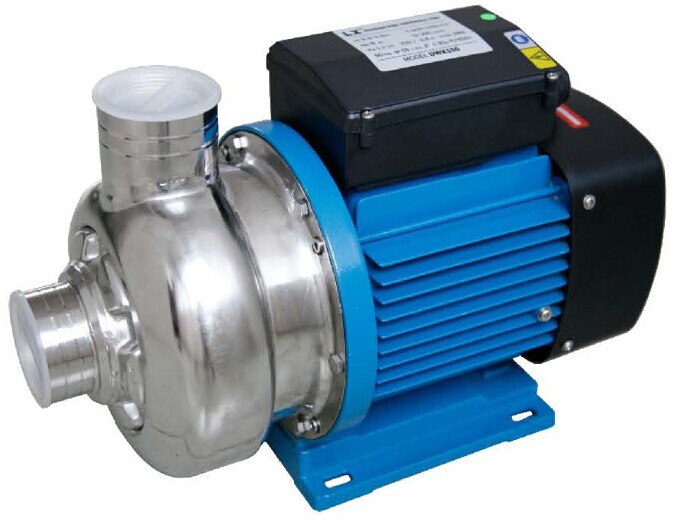

DWK series Stainless steel single-stage Centrifugal Pump

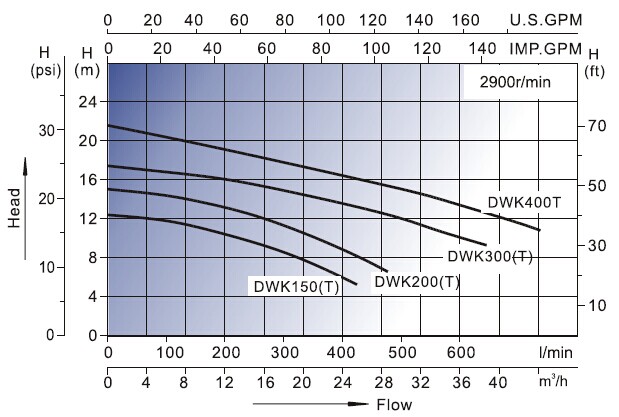

RANGE OF PERFORANCE:

8Flow rate up to 733 l/min (72m3/h)
8Head up to22m

LIMITS OF USE:

8Maximum working pressure: 10bar
8Liquid temperature from -20℃ up to +60℃
8Environment temperature +50℃


APPLICATIONS

8Weak corrosive liquid without solid granules and liquid temperature is less than 60℃
8Process water supply thst Single-stage lift can meet the requirement
8Pure water bottling, air-condition, hot pump, industrial washing
8Oper impeller, Convey domestic sewage
8Jet self-priming pump with auto controller. Suitable for household boosting, garden sprinkling

Working conditions:

8Pump body apply for stainless steel hydro for ming or stainless steel casting, impeller apply for laser welding
8Wed ends are made of stainless steel (SUS304 or SUS316), be in accordance with standsrds of drinking water
8Various type design, complete spedifications of each series
8Shaft seal is mechanial seal,different liguid will choose relevant friction couple of seal
8Insulation class: F, Protection IP55, industrial motor design, single phase with thermal pretector





WARRANTY: 1 YEAR (according to our general sales conditions)



Model

Power(P2)
(kW)

DNA

DNM

Weight
(Kg)

Packing size
(mm)

Qty/20’

220V/50Hz

380V/50Hz

DWK150

DWK150T

1.1

G2

G2

16

410*210*325

1000

DWK200

DWK200T

1.5

17.4

DWK300

DWK300T

2.2

G21/2

21.8

445*210*325

920



DWK400T

3.0

23.2

460*210*325

890
