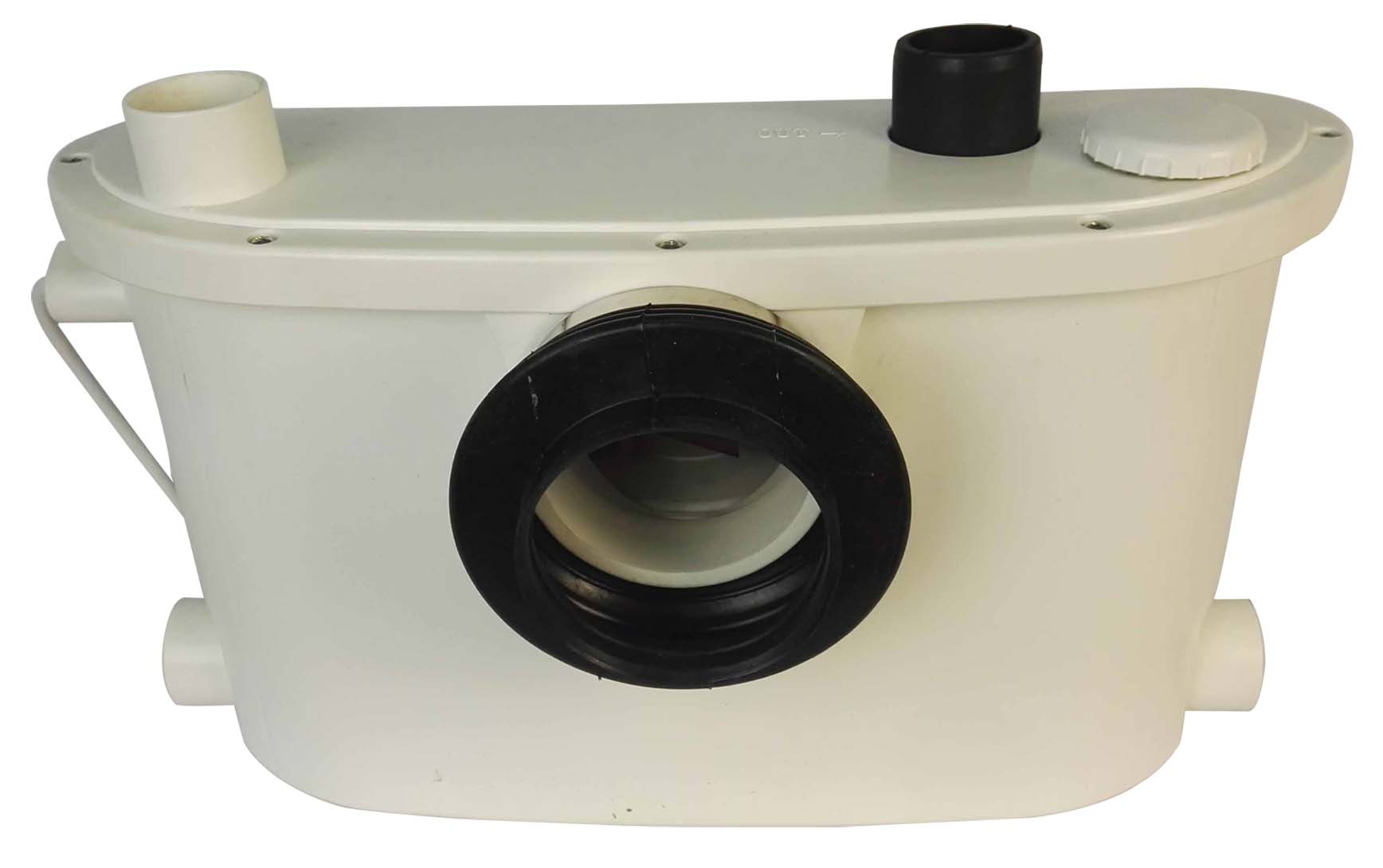

HMAC-400 MACERATOR PUMPS FOR SEWAGE LIFTING

APPLICATIONS:

8Bathrooms
8Basement installations
8Renovation of offices and other commercial buildings
8Wash basins, bath tubs
8Washing machines and dishwashers in basement below sewer level

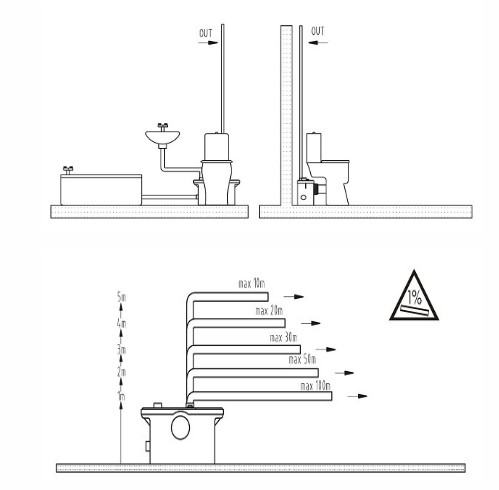

8Where the location may be remote from the main soil pipe so that a natural slope cannot be established.

FEATURES:

8Compact and slim for easy integration into the wall
8Unique design with smooth line and rounded edges-fits every modern bathroom environment
8Low noise level, good waterproof performance and suitable for installation
8The tank is made of light plastic material with an easy-to-clean surface
8Automatic (semi-automatic) start and stop
8The tank is vented through a carbon filter in the vent valve in the top cover
8Discharge pipe connection in the side ensures easy maintenance
8Flexible discharge pipe adapters for outer pipe dimeters

PUMPED LIQUIDS:

This pump is suitable for wastewater from a washbasin and sewage water form a toilet containing toilet paper and faeces
8Max.Liquid temperature: 35℃
8Max.Ambient temperature: 40℃
8The pump can also be used for ordinary liquids for cleaning of the units connected
8PH value: 4 to 10
8The pump must not used for strong chemicals or solvents

Permance table:
