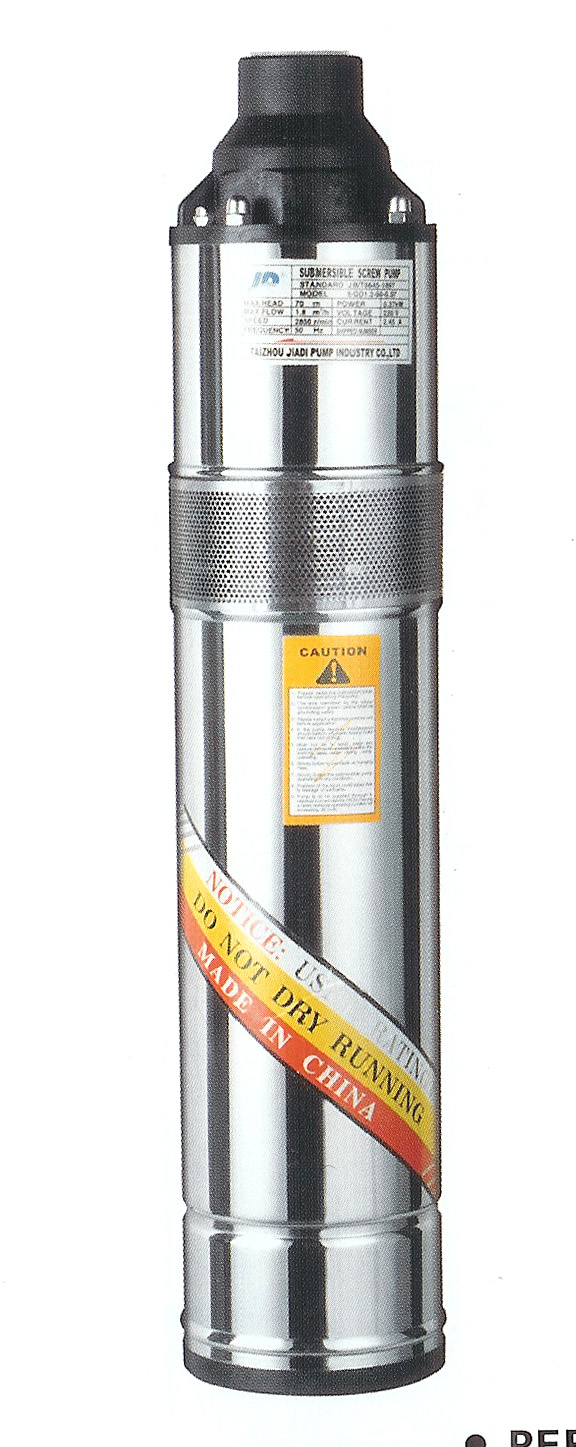

4" (EGD) SUBMERSIBLE SCREW PUMP

MAIN FEATURES:

8
Single screw instead of impellers
8Oil-filled type motor
8Sandproof device
8High head and efficiency

TECHNICAL DATA:
-Pump:
8Qmax: 1.8 (m3/h)
8Total head  50 (m)

-MOTOR:
8Power: 0.25 to 0.5 kw (1 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ102mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:
8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.

-Operating conditions:
8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.


-Materials:
8Pump casing: AISI 304 stainless steel
8Inlet : SS304
8Screw : Steel
8Outlet : SS304
8Shaft : AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Motor Power

Flow

 Head

Voltage

Max.Dia

Pipe.dia

DIMENSION

220-240V~50HZ

(Kw)

(Hp)

m3/h

m

V

mm

inch

cm

1 Phase

EGD1-50-0.25

0.25

0.35

1

50

220

102

1

49x14x17

EGD1.2-50-0.37

0.37

0.5

1.2

50

50x14x17

EGD1.8-50-0.50

0.5

0.7

1.8

50

51x14x17
