VP MODEL SUBMERSIBLE SEWAGE PUMP

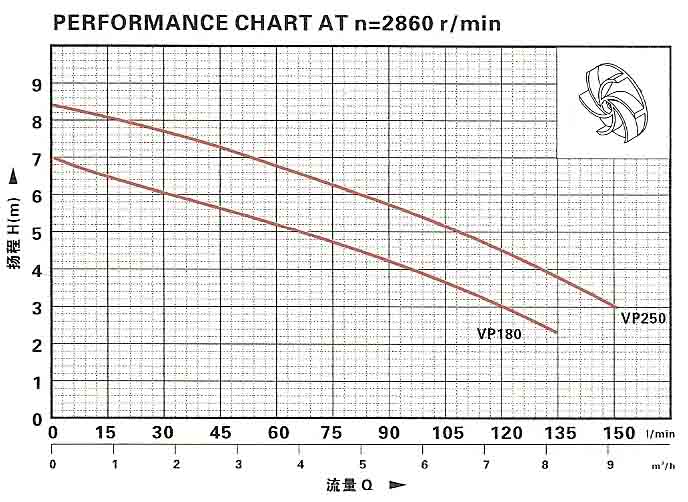

RANGE OF PERFORMANCE
8Flow rate: up to 150 L/min (9  m3/h)
Head: up to 8.5m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 15mm

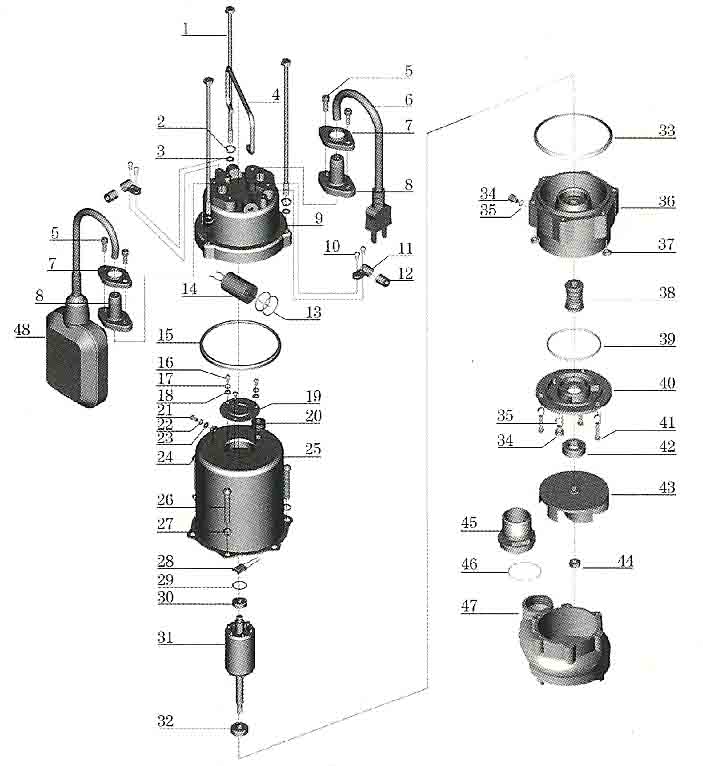

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 13 "O" ring 25 Motor stator 37 Nut
2 Stretching washer 14 Capacitor 26 Screw 38 Mechanical seal
3 Washer 15 Rubber washer 27 Stretching washer 39 "O" ring
4 Handle 16 Screw 28 Thermal protector 40 Oil chamber cover
5 Screw 17 Stretching washer 29 Undulated washer 41 Screw
6 Cable 18 Washer 30 Ball bearing 42 Oil seal
7 Flange 19 Press plate 31 Rotor 43 Impeller
8 Cable protector 20 Line protector 32 Ball bearing 44 Nut
9 Capacitor cover 21 Screw 33 Rubber washer 45 Out-let connector
10 Screw 22 Stretching washer 34 Screw 46 "O" ring
11 Cable presser 23 Washer 35 "O" ring 47 Pump body
12 Protector 24 Nut 36 Connection part 48 Float switch




WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
VOLTAGE
MAX.FLOW
MAX.HEAD

OUTLET DIA

MAX.DIA
G.W
PACKING DIMENSION
(w)
(V/Hz)
(l/min)
(m)

(mm)

(mm)
(K.g)
(cm)

VP-180

180

220/50

133

7

40

15

5.5

18.5X18X40

VP-250

250

220/50

150

8.5

40

15

6.2

18.5X18X42

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
