STEEL SHELL END-SUCTION PERIPHERAL PUMP

RANGE OF PERFORMANCE
8Flow rate up to 40 l/min (2.4 m3/h)
8Head up to 40m

LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +60℃
8Environment temperature up to +40℃

INSTALLATION AND USE
8These pumps are suitable for handling clean
water without abrasive particles and liquids that
are chemically non-aggressive to the pump
components. Reliable, economical and simple to
use, they are suitable for domestic use and in
particular for distributing water in combination
with small pressure sets, for irrigating gardens.
The pumps must be installed in a covered area,
protected against the inclement weather.

MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44/ IP54

MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Steel
8Impeller: Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing:  NSK, C&U, or local quality.

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.FLOW
MAX.HEAD
INLET/OUTLET
MAX.SUCT

G.W.

 DIMENSION

 1 Phase

(Kw)
(Hp)
(L/min)
(m)
(Inch)
(m)

 (KG)

 (mm)

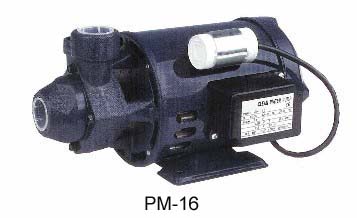

PM-16
0.37
0.5
40
40
1"*1"
9

 5.5

 285*150*185

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
