    Home > Products > Garden pump > Submersible Pump

HOT WATER CIRCULATING PUMPS

RANGE OF PERFORMANCE
8Flow rate up to 48 L/min
8Head up to 6m

LIMITS OF USE
8Fluid temperature: -10℃~ +110℃
8Max. ambient temperature +40℃
8Max. working pressure up to 10 bar

MOTOR
8Non-overloading 1-phase induction motor (n=2850rpm)
8Insulation Class B/F
8Protection grade IP44

CONSTRUCTION MATERIALS
8Pump body: Cast iron
8Impeller: PP (SS304)
8Shaft: Porcelain or stainless steel
8Bearing:  Ceramic

MOUNTING POSITION
Pump shaft in the horizontal plane

PUMP EQUIPMENT
8Screwed end single head pump
8Manual 3-speed control or flow switch automatic control
8Non-overloading Single phase motor
8Cast iron body, 130mm port-to-port

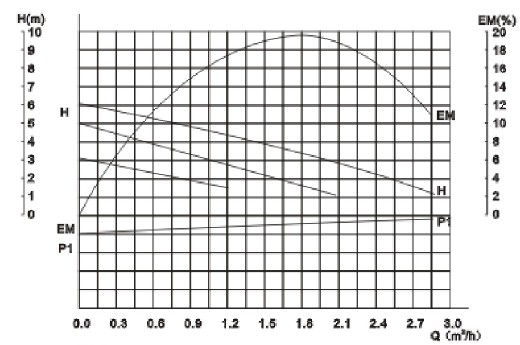

PERFOMANCE CURVE

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.FLOW
MAX.HEAD
INLET/OUTLET
GW

 1 Phase
(W)
(L/min)
(m)
(inch)
(Kg)
GS15/6 (high)
93
48
6
1" * 1"
2.6
GS15/6 (mid)
67
40
5
1" * 1"
2.6
GS15/6 (low)

46
28
3
1" * 1"
2.6
