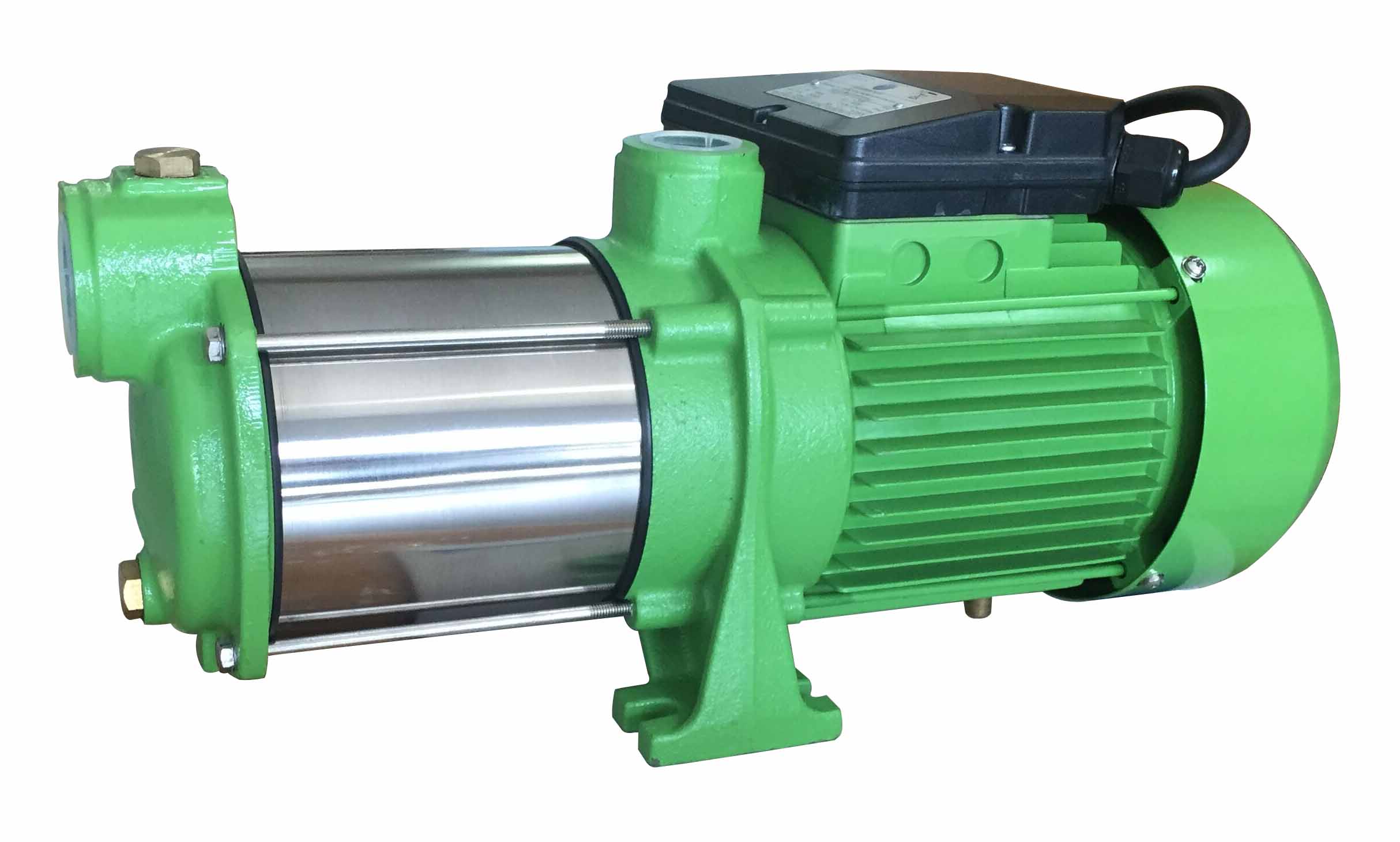

HMC-HS SERIES SELF-PRIMING MULTISTAGE  PUMPS

RANGE OF PERFORMANCE
8Flow rate up to 180 l/min (3 m3/h)
8Head up to 78m

LIMITS OF USE
8Manometric suction lift up to 8m
8Liquid temperature up to +60℃
8Environment temperature up to +40℃

INSTALLATION AND USE
8These pumps are suitable for handling clean water
without abrasive particles and liquids that are chemically
non-aggressive to the pump components. Reliable,
economical and simple to use, they are suitable for
domestic use and in particular for distributing water in
combination with small pressure sets, for irrigating gardens.
The pumps must be installed in a covered area, protected
against the inclement weather.

MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44

MATERIALS
8Pump body: Cast iron with stainless steel.
8Pump support: Cast iron
8Motor housing: Aluminum
8Impeller: AISI 304 stainless steel
8Shaft with rotor: AISI 304 stainless steel
8Mechanical seal: Carbon/SiC or SiC/Allory
8Bearing:  NSK, C&U, or local quality.

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

POWER

IMPELLER
PCS

H max

Q max

SIZE

SUCTION

20’
QUANTITY

KW

HP

m

L/min

inch

m

HMC90-2SH

0.45

0.6

2

22

100

1’’X 1’’

8

2150

HMC90-3SH

0.65

0.9

3

35

100

1’’X 1’’

8

1650

HMC90-4SH

0.75

1.0

4

45

100

1’’X 1’’

8

1550

HMC145-4SH

1.1

1.5

4

52

150

1.25’’X 1’’

8

1020

HMC145-5SH

1.5

2.0

5

64

150

1.25’’X 1’’

8

960

HMC170-5SH

1.65

2.2

5

65

180

1.25’’X1.25’’

8

960

HMC170-6SH

2.2

3.0

6

78

180

1.25’’X1.25’’

8

680

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
