VM2/4 SERIES VERTICAL MULTISTAGE CENTRIFUGAL PUMPS

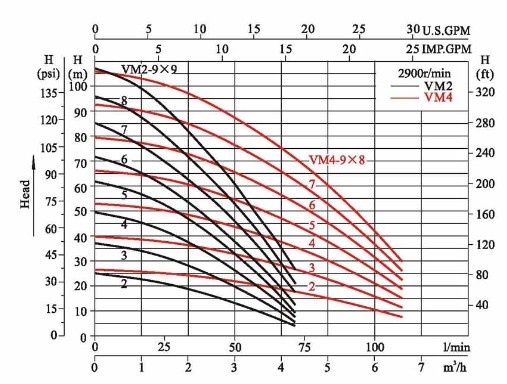

RANGE OF PERFORMANCE
8Flow rate up to 67 l/min (6.5 m3/h)
8Head up to 105m

LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +60℃
8Environment temperature up to +40℃
8Max. working pressure:1.0Mpa

INSTALLATION AND USE
8These pumps are suitable for handling clean water
without abrasive particles and liquids that are chemically
non-aggressive to the pump components. Reliable,
economical and simple to use, they are suitable for
domestic use and in particular for distributing water in
combination with small pressure sets, for irrigating gardens.
The pumps must be installed in a covered area, protected
against the inclement weather.

MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class F
8Protection grade IP55

MATERIALS
8Pump body: Cast iron with stainless steel.
8Pump support: Cast iron
8Motor housing: Aluminum
8Impeller: PPO
8Shaft with rotor: AISI420 stainless steel
8Mechanical seal: NBR/Ceramic/ Carbon
8Bearing:  NSK, C&U, or local quality.



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
RATED HEAD
RATED FLOW
DNA
DNM
 WEIGHT  PACKING SIZE
1 phase 3 phase
(Kw)
(HP)
(m)
  (m3/h)
(Kg)
(mm)
VM2-9X2 VM2-9X2T 0.37 0.5 18  2 G1 G1 15.5 435*220*300
VM2-9X3 VM2-9X3T 0.55 0.75 27
G1
 G1 16 460*220*300
VM2-9X4 VM2-9X4T 0.75 1.0 35
G1
 G1 17 485*220*300
VM2-9X5 VM2-9X5T 1.0 1.1 45
G1
 G1 18 510*220*300
VM2-9X6 VM2-9X6T 1.0 1.1 54
G1
 G1 19 535*220*300
VM2-9X7 VM2-9X7T 1.1 1.5 63
G1
 G1 22 595*220*300
VM2-9X8 VM2-9X8T 1.5 2.2 72
G1
 G1 23 615*220*300
VM2-9X9 VM2-9X9T 1.5 2.2 81
G1
 G1 24 640*220*300
VM4-9X2 VM4-9X2T 0.55 0.75 18  4
G1
 G1 16 435*220*300
VM4-9X3 VM4-9X3T 0.75 1.0 27
G1
 G1 17 460*220*300
VM4-9X4 VM4-9X4T 1.0 1.1 36
G1
 G1 18 485*220*300
VM4-9X5 VM4-9X5T 1.5 2.2 45
G1
 G1 20 510*220*300
VM4-9X6 VM4-9X6T 1.5 2.2 54
G1
 G1 23 535*220*300
VM4-9X7 VM4-9X7T 2.2 2.5 63
G1
 G1 24 595*220*300
VM4-9X8 VM4-9X8T 2.2 2.5 72
G1
 G1 26 615*220*300

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
