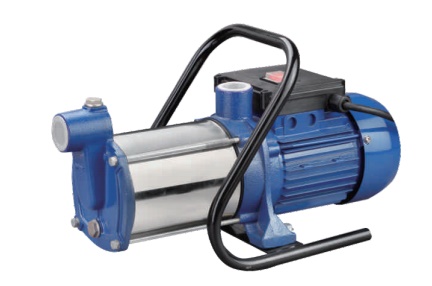

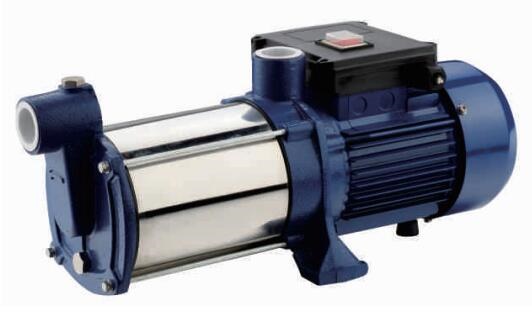

HORIZONTAL MULTISTAGE SELF-PRIMING PUMPS
RANGE OF PERFORMANCE
8Flow rate up to 6000 l/h 8Head up to 55m
LIMITS OF USE
8Manometric suction lift up to 8 m
8Liquid temperature up to +40℃
8Environment temperature up to +35℃
INSTALLATION AND USE
8These pumps are suitable for handling clean water
without abrasive particles and liquids that are chemically
non-aggressive to the pump components. Reliable,
economical and simple to use, they are suitable for
domestic use and in particular for distributing water in
combination with small pressure sets, for irrigating gardens.
The pumps must be installed in a covered area, protected
against the inclement weather.
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B /F
8Protection grade IP44 /54
MATERIALS
8Pump body: Cast iron with stainless steel
8Pump support: Cast iron
8Motor housing: Aluminum
8Impeller: PPO/ SS304
8Shaft with rotor: AISI 416 stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)
|
MODEL |
POWER |
IMPELLER
PCS |
H max |
Q max |
Max. pressure |
SIZE |
SUCTION |
20’
QUANTITY |
|
KW |
HP |
m |
L/min |
Bar |
inch |
m |
|
CMP3-900 |
0.9 |
1.2 |
3 |
35 |
100 |
3.5 |
1’’X 1’’ |
8 |
1122 |
|
CMP4-1100 |
1.1 |
1.5 |
4 |
46 |
100 |
4.6 |
1’’X 1’’ |
8 |
1047 |
|
CMP5-1300 |
1.3 |
1.7 |
5 |
55 |
100 |
5.5 |
1’’X 1’’ |
8 |
1002 |
8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
