2SS SERIES STAINLESS STEEL SUBMERSIBLE PUMPS

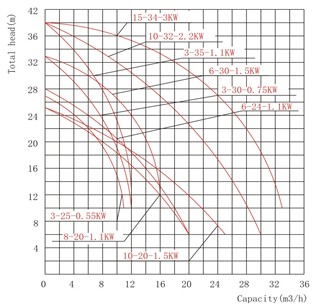

RANGE OF PERFORMANCE
8Flow rate up to 550 l/min (33 m³/h)
8Head up to 38 m

LIMITS OF USE
8Maximum  operating depth 5m below waterlevel.
8Environment temperature up to +40℃
8PH value in water : 4-10
8Maximum passage for suspended solids 2mm

WORKING PRINCIPLE
8The pumps are fitted with an open or closed impeller ,which is mounted on the end of the drive shaft and enclosed by a large circular chamber and a baseplate is directly in contact with the fluid to be pumped.
8The rotation impeller transmits kinetic energy to the fluid which is centrifuged in the ring chamber ,where part of the kinetic energy id tranformed into pressure energy, the particular design of the impeller optimizes hydraulic efficiency ,while allowing the pump to the handle muddy fluids containing  solids in suspension and short fibres without danger of clogging.

STRUCTURAL CHARACTERISTIC
8Pump body : Stainless steel
8Impeller :  Stainless steel with centrifugal radial flow type
8Motor body : Stainless Steel
8Mechanical seal : Stainless steel (SiC to SiC)
8Shaft :  AISI SS420
8Bearing :  C&U, NSK or China local
8Insulation class : B
8Protection class : IP 68
8With float switch (or without).
8With thermal overload protector in single phase motor.

WARRANTY: 1 YEAR (according to our general sales conditions)
