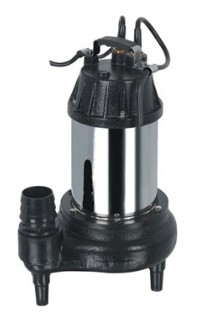

QSW MODEL SUBMERSIBLE SEWAGE PUMP

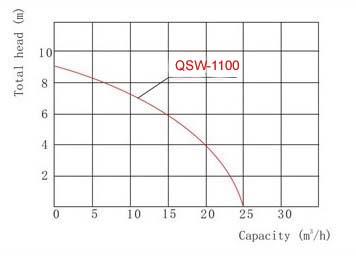

RANGE OF PERFORMANCE
8Flow rate: up to 416 L/min (25 m3/h)
8Head: up to 9 m
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 40mm
MAIN FEATURES
8Using Single(three) phase power source, it's complete stainless steel structure, rust free and anti corrosion vortex type or double-vane impeller features powerful sewage disposal capability.The maximum solid diameter of passage up to 40mm on request. It can be made of standard AISI SS 304 for common acid or alcali (PH value 4-10) or 316L for sea water or chemical industry (PH value 0-12).
STRUCTURAL CHARACTERISTIC
8Pump body : Stainless steel
8Impeller : cast iron/stainless steel open type
8Motor body : Stainless Steel
8Mechanical seal : Stainless steel(graphite to ceramic or SiC to graphite)
8Shaft : SS420
8Bearing : C&U, local china or NSK etc.
8IProtection IP68, insulation Class F
8With float switch (or without).
8With thermal overload protector in single phase motor.
WARRANTY: 1 YEAR (according to our general sales conditions)
|
Model |
Power |
Max.Flow |
Max.Head |
Outlet |
Cable |
GW |
Packing Size |
20"QUANTITY |
|
KW |
HP |
(m3/h) |
(m) |
mm |
m |
Kg |
mm |
PCS |
|
QSW-1100(F) |
1.1 |
1.5 |
25 |
9 |
65 |
10 |
24.5 |
310*230*510 |
810 |
8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
