GASOLINE ENGINE PUMP HWP-15

Main Features
8General purpose, centrifugal 1.5" pump
8Easy starting OHV commercial engine
8Capacity 18 m3/h
8Durable silicon carbide mechanical seal
8Cast iron volute and impeller
8Heavy duty full frame protection
8Isolation mounted engine and pump
8Oil Alert protection
8Large strainer and simple tools

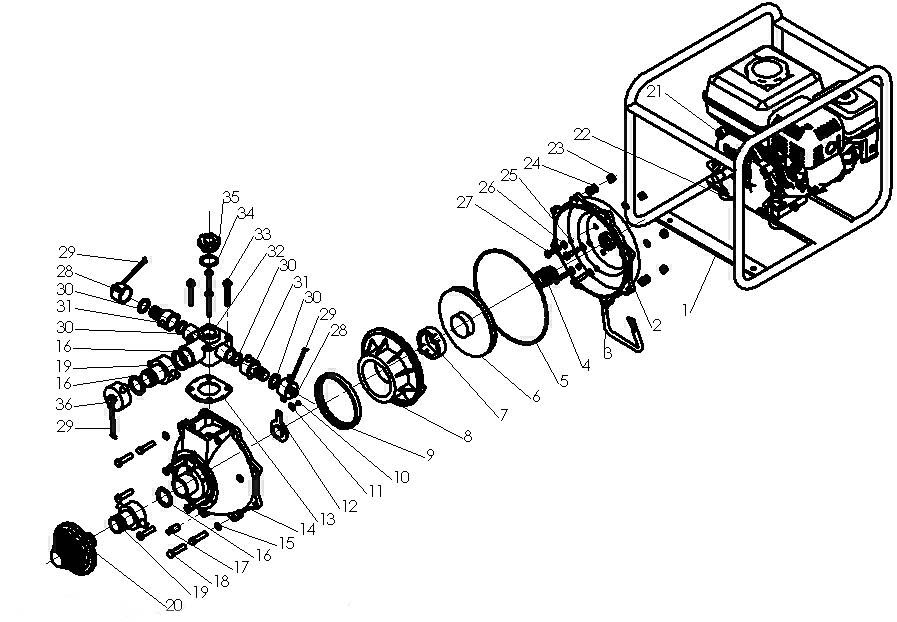

 NO

 NAME

 NO

 NAME

 NO

 NAME

 NO

 NAME

 1

 Flame

 10

 Screw

 19

 Head

 28

 Outlet cap (1”)

 2

 Pump casing

 11

 Washer

 20

 Strainer

 29

 Plastic ribbon

 3

 Handle

 12

 Non-return-vale

 21

 Engine

 30

 Rubber seal

 4

 Mechanical seals

 13

 Rubber gasket

 22

 Flange rubber

 31

 Head(1”）

 5

 “O” seal

 14

 Pump casing

 23

 Nut M10

 32

 Outlet

 6

 Impeller

 15

 Washer

 24

 Spring washer

 33

 Flange bolt M8×56

 7

 Plastic bush

 16

 Rubber seal

 25

 “O” type rubber seal

 34

 "O"rubber seal

 8

 Diffuser

 17

 Plug

 26

 Stainless washer

 35

 Plastic plug

 9

 Rubber seal

 18

 Flange boltM10×39

 27

 Stainless bolt 5/16"-24UNF*1.5

 36

 Outlet cap(11/2”）



 Engine

 GX200/6.5HP

 Displacement

 208cc

 Bore and stroke

 70 x 45 mm

 Compression Ratio

 8.5:1

 Oil Alert

 Std

 Pump type

 Multi-purpose Centrifugal Self-priming

 Volute

 Construction plactic

 Impeller

 Construction plactic

 Mechanical Seal

 Carbon/Ceramic

 Drive system

  Direct

 Discharge capacity

 18 m3/h

 Suction port diameter

 1.5"

 Discharge port diameter

 1.5"

 Total head lift

 60m

 Suction head lift

 8m

 Maximum pressure

 45 psi

 Dimensions (LxWxH)

50 x 37 x 44cm

 Dry weight

  26kg
