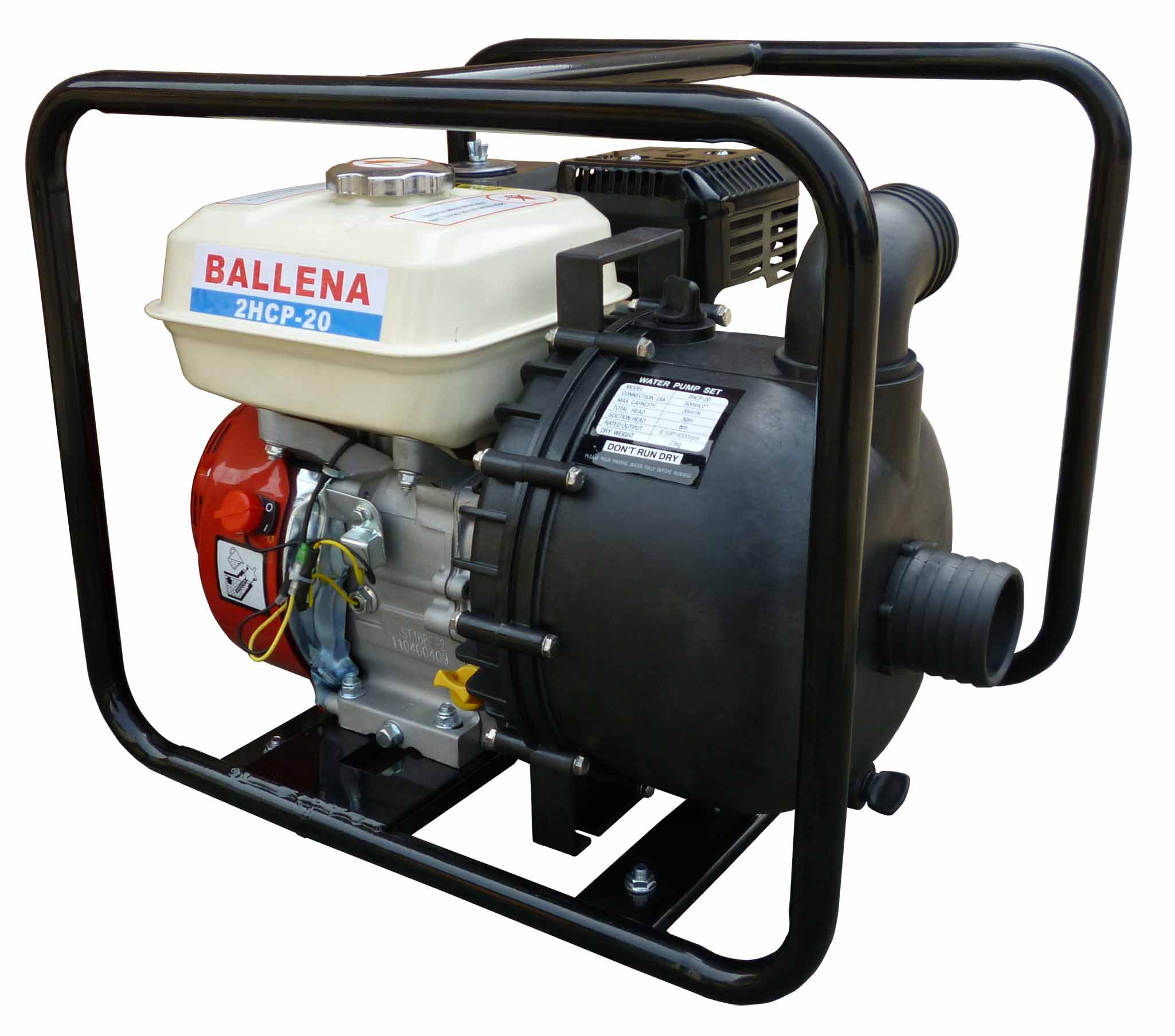

GASOLINE CHEMICAL PUMP HCP-20

Product descriptions:
Multi-purpose, centrifugal self-priming 2" pump
Easy starting OHV commercial engine
Thermoplastic pump housing for chemical capability
Full frame protection and protected by oil alert
.

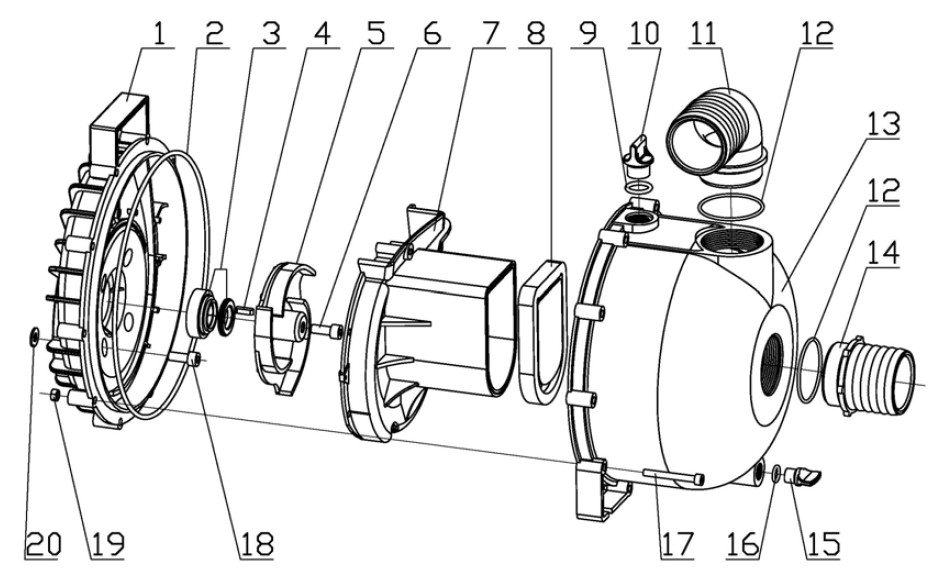

 NO

 NAME

 No

 NAME

 1

 Pump cover

 2

 O ring φ200x4

 3

 Mechanical seal

 4

 Plane key(4.78x18)

 5

 Impeller

 6

 Bolt 5/16-24U NFx20

 7

 Water diffuser

 8

 Check value

 9

 O ring φ18x3.55

 10

 Plug

 11

 Outlet conduit

 12

 O ring φ43.7x2.65

 13

 Pump body

 14

 Inlet branch

 15

 Plug

 16

 O ring

 17

 Bolt(M6x60)

 18

 Bolt M8x30

 19

 Nut M6

 20

 Adiabatic

Performance table:

 Engine

 GX160/ 5.5HP

 Displacement

 173cc

 Bore and stroke

 70 x 45 mm

 Compression Ratio

 8.5:1

 Oil Alert

 Std

 Pump type

 Multi-purpose Centrifugal Self-priming

 Volute

 Rigid Mounted Fiberglass reinforced polyester

 Impeller

 Fiberglass reinforced polyester

 Mechanical Seal

 Carbon/Ceramic

 Priming time

 65 sec. @ 16.4 ft.

 Drive system

  Direct

 Discharge capacity

 35 m3/h

 Suction port diameter

 2"

 Discharge port diameter

 2"

 Total head lift

 30m

 Suction head lift

 8m

 Maximum pressure

 45 psi

 Dimensions (LxWxH)

  51.5 x 42.5 x 45.0cm

 Dry weight

  23kg
