    Home > Products > Garden pump > Submersible Pump

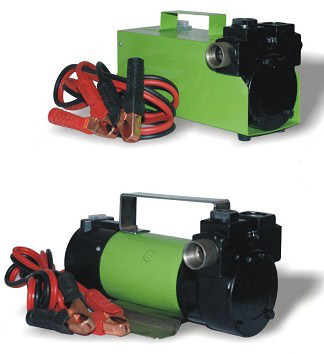

OIL PUMPS

RANGE OF PERFORMANCE
8Max.pump rate: 40 to 60L/min

LIMITS OF USE
8Do not use this pump to transport the lowignited fuel (such as gasoline, liquefied petroleum gas, alcohol, etc.).
8Before using the oil pump, make sure that the voltage of the pump (indicated on the identification plate) corresponds to the voltage of power supply.
8When first use, make sure that pump head and oil inlet tube are in vacuum condiction and fill them with the liquid that will be pumped through the bolt holes or inlet tub.
8Check and make sure the inlet tube and connectors are airtight for a good suction
8To keep the liquid clean, make sure to install the bottom valve with filter that we provide in this package.



















WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
Rated
Power
V&Hz
MAX.
Current
MAX.
Pump rate
MAX.
Turn soon
Dia.of pipe
Lenght
of
cable

Package
size
(1 pcs)
Weight
approx

QTY/20‘CTN

(w)
(A)
(l/m)
(rpm)

(m)
(cm)

YB1224
180/400
12V/24V DC
15/17
40/60
1400/2400

3/4''

1.5
29X19X19

19.5kg/21kg

2079pcs

YB1224T
180/400
12V/24V DC
15/17
40/60
1400/2400

3/4''

1.5
32X32X23

9kg/10.2kg

1260pcs

YB1224B
180/400
12V/24V DC
15/17
40/60
1400/2400

3/4''

1.5
29X19X19

19.5kg/21kg

2079pcs

YB1224BT
180/400
12V/24V DC
15/17
40/60
1400/2400

3/4''

1.5
32X32X23

9kg/10.2kg

1260pcs
