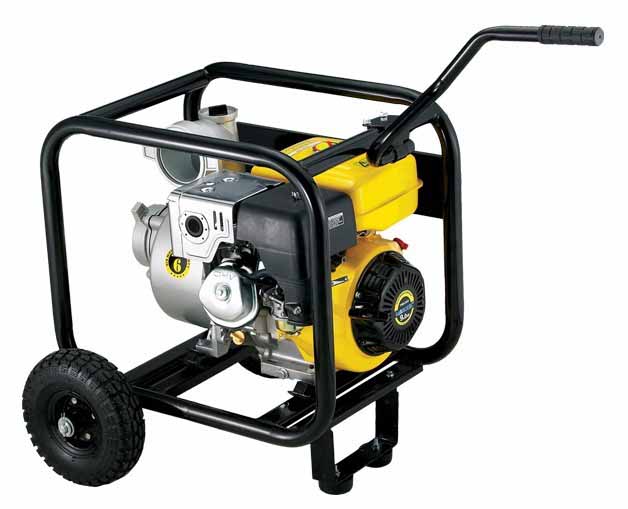

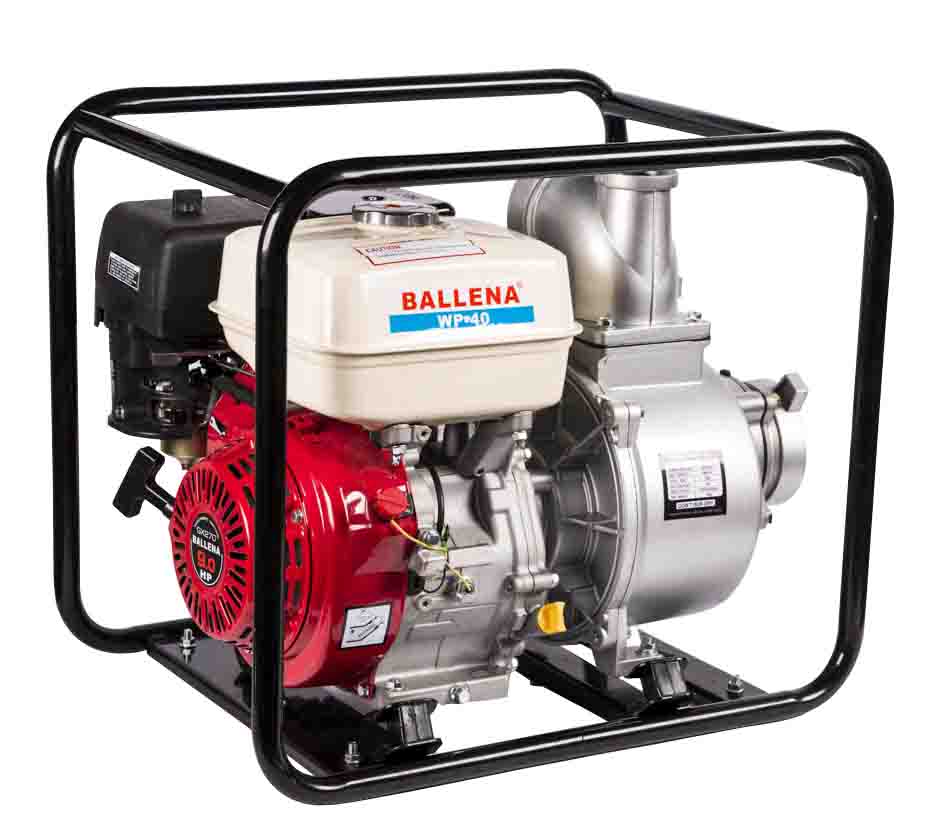

GASOLINE ENGINE PUMP WP-40L

Main Features
8General purpose, centrifugal 4" pump
8
Easy starting OHV commercial egine
8Capacity 108 m3/h
8Durable silicon carbide mechanical seal
8Cast iron volute and impeller
8Heavy duty full frame protection
8Isolation mounted engine and pump
8Oil Alert protection
8Large strainer and simple tools

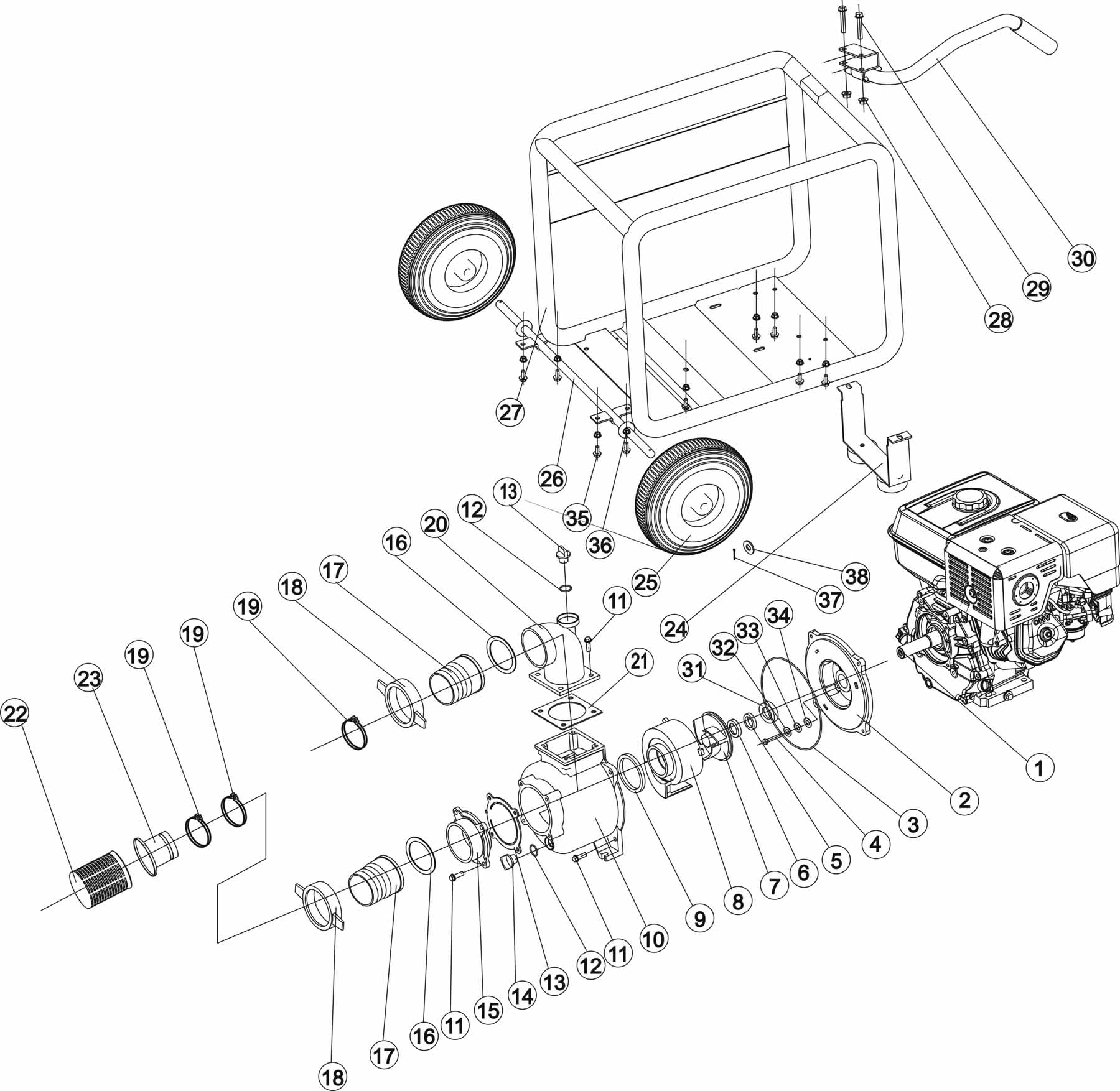

 NO

 NAME

 NO

 NAME

 NO

 NAME

 NO

 NAME

 1

 Engine

 11

 Flange bolt M8×20

 21

 Seal packing

 31

 Casing wear ring

 2

 Pump cover

 12

 “O” seal

 22

 Strainer

 32

 Washer

 3

 “O” seal

 13

 Non-return vale

 23

 Strainer base

 33

 Washer

 4

 Hexagon screws M8×55

 14

 Plug

 24

 iron feet support

 34

 Washer

 5

 Impeller wear ring

 15

 Flume

 25

 Wheel

 35

 Flange bolt M8×20

 6

 Impeller seals

 16

 Seal packing

 26

 shaft for the wheel

 36

 Nut M8

 7

 Impeller

 17

 Head

 27

 frame

 37

 Flange bolt

 8

 Spiral case

 18

 Joint

 28

 Nut M8

 38

 Washer

 9

 “O” seal

 19

  Tabe clip

 29

 Flange bolt M8×20





 10

 Pump cover

 20

Elbow draft tube

 30

Handle





MODEL

 WP-40

 INLET/OUTLET DIA.

  4" *4"

 MAX SUCTION(M)

 8

 FLOW RATE(M3/H)

 108

 HEAD MAX(M)

 28

 ENGINE MODEL

 GX270

 ENGINE TYPE

 4-STROKE OHV

 DISPLACEMENT(CC)

 284

 MAX OUTPUT(HP/RPM)

 9.0

 FUEL TANK(L)

 5.9

 IGNITION SYSTEM

 TRANSISTORED IGNITION

 STARTING SYSTEM

 RECOIL/ELECTRIC STARTING

 DRY WEUGHT(KG)

48

 DIMENSION(MM)

 630X450X450
