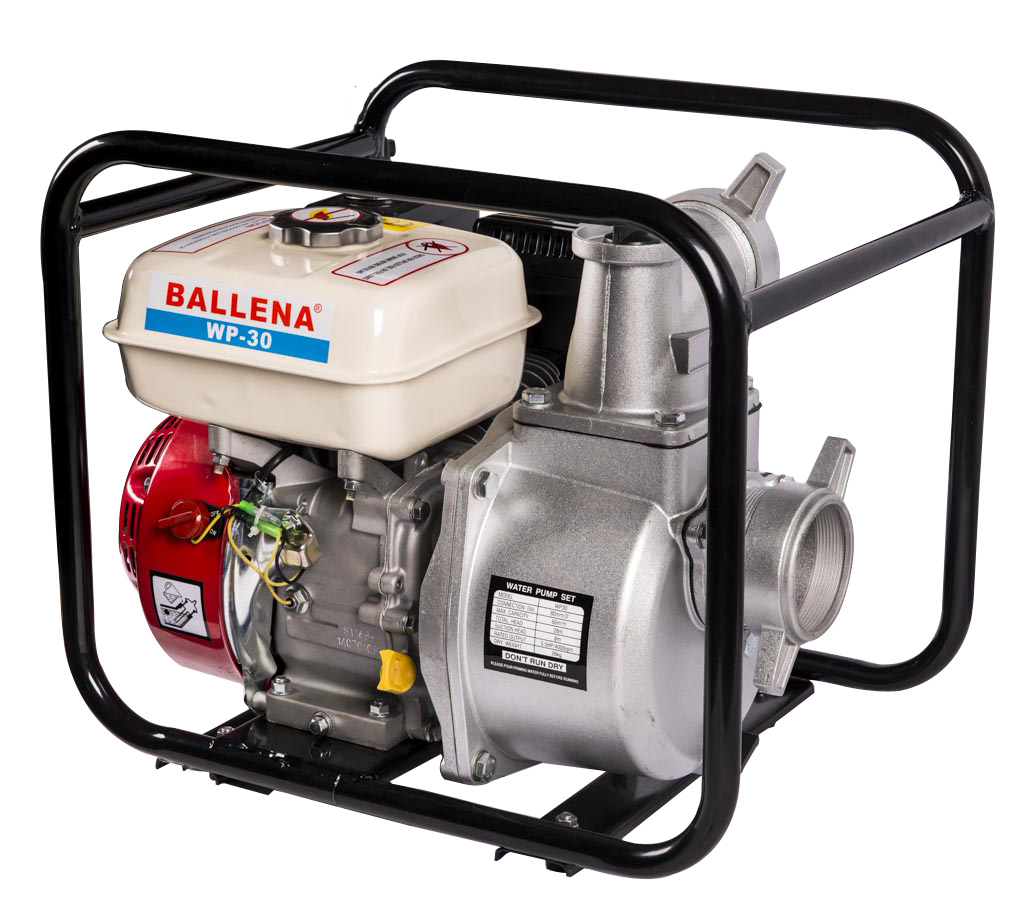

GASOLINE ENGINE PUMP WP-30

Main Features
8General purpose, centrifugal 3" pump
8Easy starting OHV commercial engine
8Capacity 60 m3/h
8Durable silicon carbide mechanical seal
8Cast iron volute and impeller
8Heavy duty full frame protection
8Isolation mounted engine and pump
8Oil Alert protection
8Large strainer and simple tools

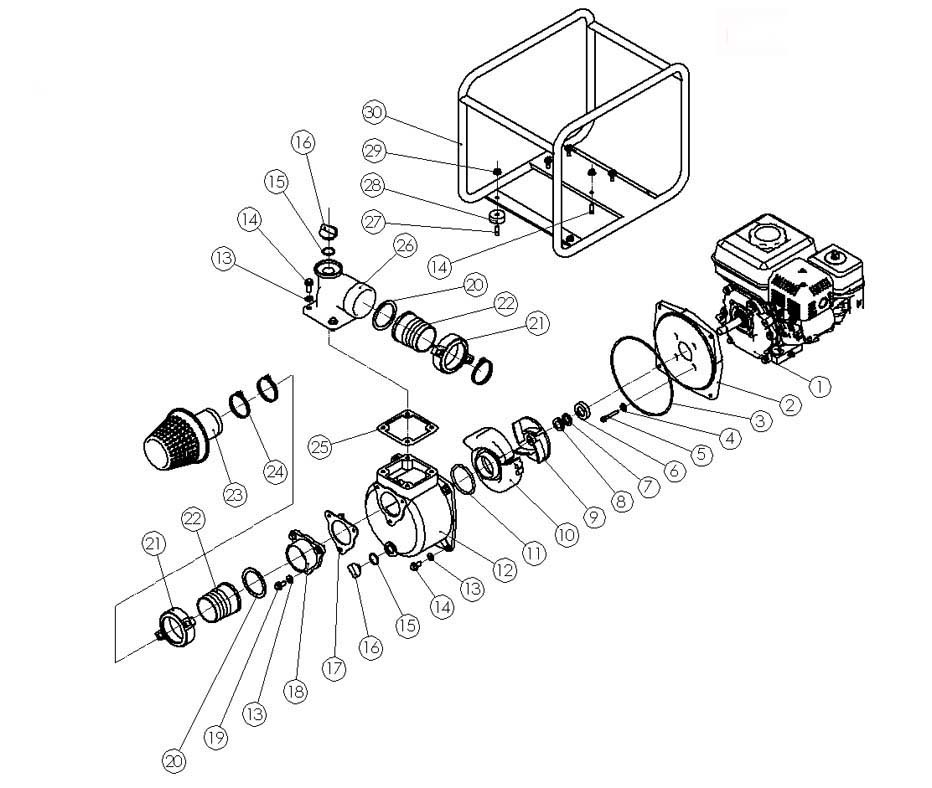

 NO

 NAME

 NO

 NAME

 NO

 NAME

 NO

 NAME

 1

 Engine

 9

 Impeller

 17

 Non-return vale

 25

 Seal packing

 2

 Pump body

 10

 Spiral case

 18

 Flume

 26

 Elbow draft tube

 3

 “O” seal

 11

 “O” seal

 19

 Flange bolt M8×20

 27

 Flange bolt M8×25

 4

 Washer

 12

 Pump cover

 20

 Seal packing

 28

 Flame rubber

 5

 Hexagon screws M8×55

 13

 Packing8

 21

 Joint

 29

 Nut M8

 6

 Casing wear ring

 14

 Flange bolt M8×20

 22

 Head

 30

 Flame

 7

 Impeller wear ring

 15

 “O” seal

 23

 Strainer





 8

 Impeller seals

 16

 Plug

 24

  Tabe clip







Performance Table:

 MODEL

 WP-30

 INLET/OUTLET DIA.

  3" x 3"

 MAX SUCTION(M)

 8

 FLOW RATE(M3/h)

 60

 HEAD MAX(M)

 28

 ENGINE MODEL

 GX160

 ENGINE TYPE

 4-STROKE OHV Gasoline engine

 DISPLACEMENT(CC)

 173

 MAX OUTPUT(HP/RPM)

 5.5

 FUEL TANK(L)

 3.6

 IGNITION SYSTEM

 TRANSISTORED IGNITION

 STARTING SYSTEM

 RECOIL/ELECTRIC STARTING

 DRY WEIGHT(Kg)

26

 DIMENSION(MM)

 500X370X440
