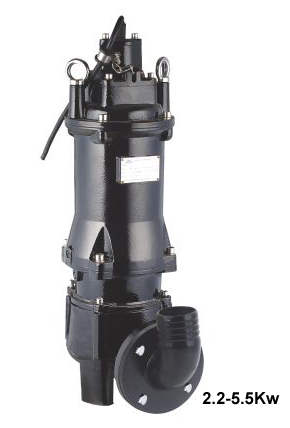

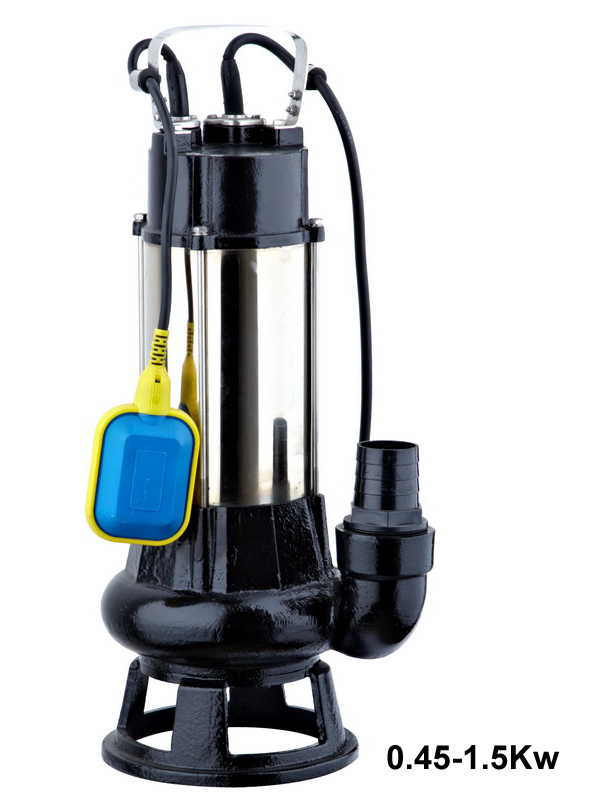

WQ(D)X MODEL SUBMERSIBLE SEWAGE PUMP

FEATURE
8 The vortex impeller resides out of volute.
8 Therefore any solids that can enter the inlet is able totraverse the channel via vortex action
Sic Mechanical Seal with great wear resistanve.
8 Chromium plated shaft ensure high corrosion and wear resistance Watertight cable entry system protects the motor from water and moisture in case of cable damaged and submerged.
8 Built-in thermal protector automatically stops the pumpin event of open phase,shortcircuit,over circuit,overloading and overheating.

APPLICATION
8 Factory,mining,power plant,slaughterhouse,and construction site etc where the liquid most contain big size solids.

SPECIFICATION
8 Water temperature: up to 35℃
8 PH: 6.5 to 8.5
8Density of liquid: 1.3g/cm³
8Power:0.45~5.5Kw
8 Capacity: up to 80m³/h
8 Electric motor:Single-phase 220v-50Hz with capacitor and thermal overload protector,three phases 380v-50Hz,Voltage fluctuation for 10% more or less is allowed and other voltage for 60Hz is also available.
8 Insulation class: B
8 Protection class:IP68
8 Head: up to 23m
8 Maximum immersion depth: 10m
8 Cable: Lenght 8m
