RANGE OF PERFORMANCE
8Flow rate: up to 2000 L/min (120 m3/h)
8Head: up to 35 m

LIMITS OF USE
8 Maximun operating depth 5m below water level
8 Maximun fluid temperature 40℃
8 PH:6.5-8.5
8 Maximun working preesure:6 bar

PUMP INSTALLATION AND APPLICATIONS

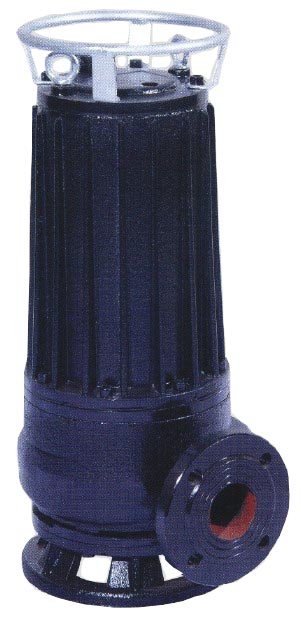

8 WQAS pump is with shredding function by using a cutting impeller with a “spiral” diffuser plate. It is mainly designed for pumping sewage, waste water, rainwater and living water which contains solid grains, plastic bag, rope, various fabric, sludge and solid etc.

STRUCTURE MATERIALS
8 Pump body:Cast iron
8 Motor braket:Cast iron
8 Impeller:Cast iron
8 Mechanical seal: Stainless steel carbon-ceramic
8 Motor Shaft: AISI 420 stainless steel
8 Electric motor:Single-phase 220v-50Hz with capacitor and thermal overload protector,three phases 380v-50Hz,Voltage fluctuation for 10% more or less is allowed and other voltage for 60Hz is also available.
8 Insulation class: B/F
8 Protection class:IP68

,

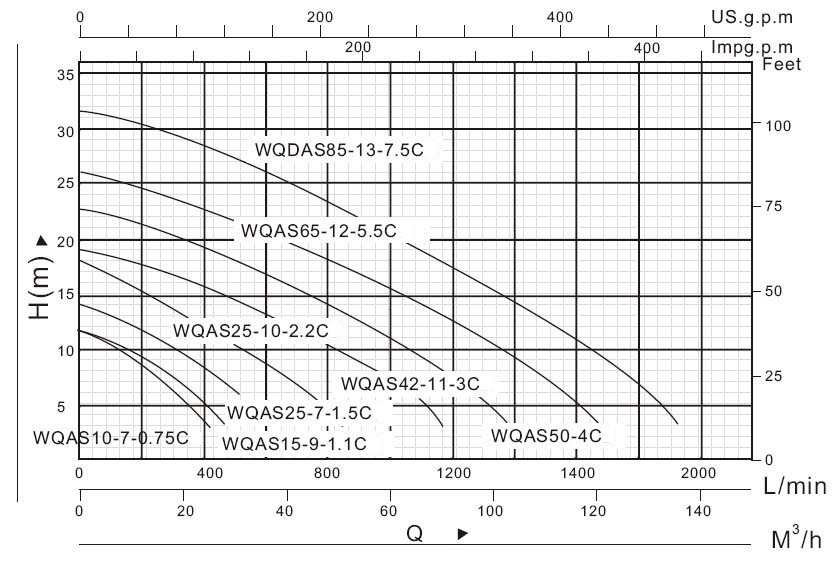

Curve Parameters N=2850r/min
