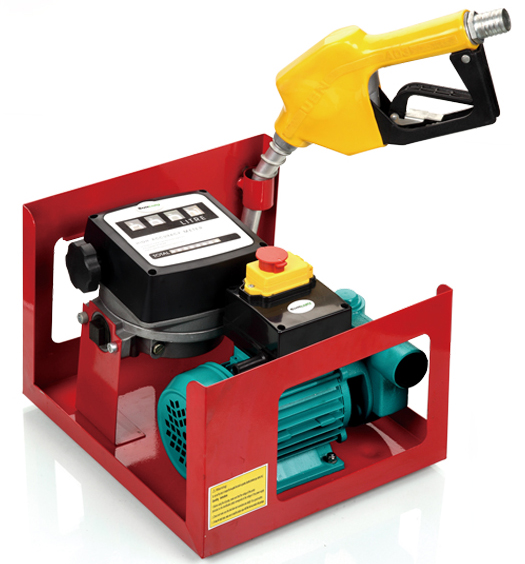

OIL PUMPS



RANGE OF PERFORMANCE
8Max.pump rate: 22 to 35L/min
8Max. height: 20 to 30 m

LIMITS OF USE
8Do not use this pump to transport the lowignited fuel (such as gasoline, liquefied petroleum gas, alcohol, etc.).
8Before using the oil pump, make sure that the voltage of the pump (indicated on the identification plate) corresponds to the voltage of power supply.
8When first use, make sure that pump head and oil inlet tube are in vacuum condiction and fill them with the liquid that will be pumped through the bolt holes or inlet tub.
8Check and make sure the inlet tube and connectors are airtight for a good suction
8To keep the liquid clean, make sure to install the bottom valve with filter that we provide in this package.





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.
pump rate
MAX.
height
MAX.
depth

Fitting

Lenght
of
cable

Package
size
(1 pcs)

Weight
approx

QTY/20‘CTN

(w)
(L/min)
(m)
(m)

(cm)

CYB400JT
400
20-30
20
7
1''

H05RN-F3G1.0mm2X1.2m

42X37X37

12.5kg/14.5kg

468pcs

CYB600JT
600
24-35
30
7
1''

H05RN-F3G1.0mm2X1.2m

42X37X37

13kg/15kg

468pcs
