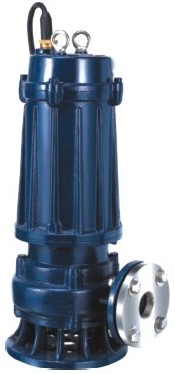

WQ MODEL SEWAGE SUBMERSIBLE PUMP

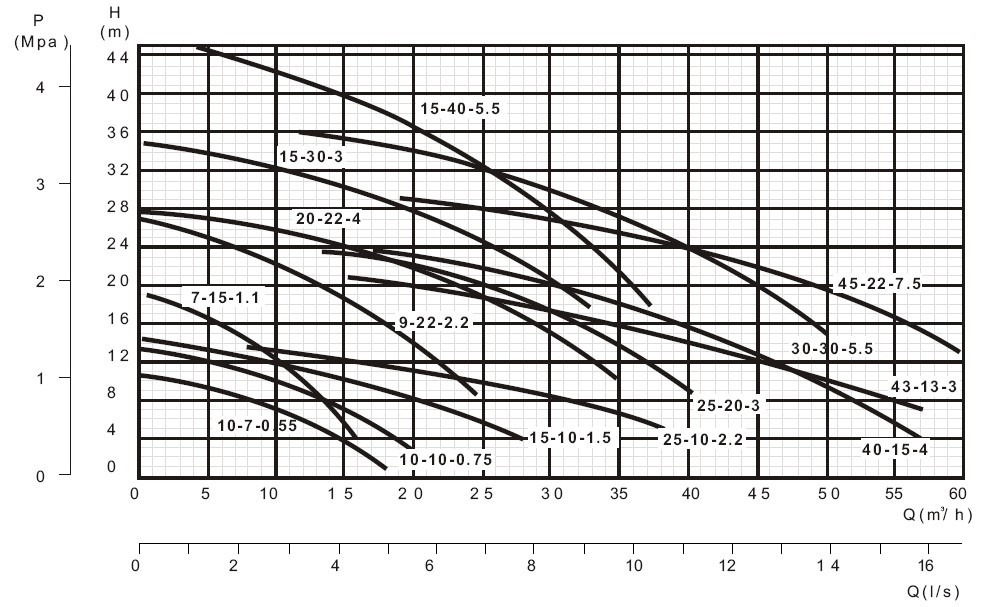

RANGE OF PERFORMANCE
8Flow rate: up to 10000  L/min (600 m3/h)
8Head: up to 50 m

LIMITS OF USE
8Maximun operating depth 5m below water level
8Maximun fluid temperature 40℃

PUMP INSTALLATION AND APPLICATIONS
WQ-Type Sewage/Dirt submersible pump is extensively used in industrial,mining and architectural operations,being made of hard alloy and reliable well-sealed and equiped with overheat/overload protection devise,it is also featured by its long durability and safety for use.

STRUCTURE MATERIALS
8 Pump body:Cast iron
8 Motor body:Cast iron
8 Impeller:Cast iron
8 Mechanical seal: Stainless steel carbon-ceramic
8 Shaft:  AISI 420 stainless steel
8 Bearing: SKF/NTN/NSK/China local
8 Insulation class: B/F
8 Protection class:IP68























 Model

 Power

Volt.

 Speed

 Flow

Head

Pipe dia.

 HP

KW

 V

 r.p.m

 m3/h

 m

 inch

WQD6-12-0.55

 0.75

 0.55

220

 2850

16

 14

2

WQD6-16-0.75

 1

 0.75

22

 17.5

2

WQD10-10-0.75

 1

 0.75

16

 16

 2.5

 WQ10-7-0.55

0.75

0.55

380

 2900

10

 7

 1.5

 WQ10-10-0.75

 1.0

0.75

 10

 10

 1.5

 WQ7-15-1.1

 1.5

 1.1

7

 15

 2

 WQ15-10-1.5

 2.0

 1.5

15

 10

 2.5

 WQ9-22-2.2

 3.0

 2.2

9

 22

 2

 WQ15-20-2.2

 3.0

 2.2

15

 20

 2.5

 WQ25-10-2.2

 3.0

 2.2

25

 10

 3

 WQ15-30-3

 4

 3

15

 30

 2

 WQ25-20-3

 4

 3

25

 20

 2.5

 WQ43-13-3

 4

 3

43

 13

 3

 WQ50-10-3

 4

 3

50

 10

 4

 WQ25-22-4

 5

 4

25

 22

 2

 WQ40-15-4

 5

 4

40

 15

 3

 WQ60-10-4

 5

 4

60

10

 4

 WQ15-40-5.5

 7.5

 5.5

15

 40

 2

 WQ30-30-5.5

 7.5

 5.5

30

 30

 3

 WQ45-22-7.5

 10

 7.5

45

 22

 3

 WQ80-15-7.5

 10

 7.5

80

15

 4

 WQ100-10-7.5

 10

 7.5

100

 10

 6

 WQ80-25-11

 15

 11

1450

80

 25

 4

 WQ130-15-11

 15

 11

130

 15

 6

 WQ300-7-11

 15

 11

300

 7

 8

 WQ80-50-15

 20

 15

80

 50

 4

 WQ130-20-15

 20

15

130

 20

 6

 WQ250-11-15

 20

15

250

 11

 8

 WQ100-35-18.5

 25

18.5

100

 35

 4

 WQ180-20-18.5

 25

 18.5

180

 20

 6

 WQ250-15-18.5

 25

 18.5

250

 15

 8

 WQ100-40-22

 30

 22

100

 40

 4

 WQ200-22-22

 30

 22

200

 22

 6

 WQ250-18-22

 30

 22

250

 18

 8

 WQ180-30-30

 40

 30

180

 30

 6

 WQ250-22-30

  40

 30

250

 22

 8

 WQ600-9-30

 40

 30

600

 9

 10

 WQ180-37-37

 49

 37

180

 37

 6

 WQ350-25-37

 49

 37

350

 25

 8

 WQ600-12-37

 49

  37

600

 12

 10

 WQ180-45-45

 60

 45

180

 45

 6

 WQ400-30-45

 60

 45

400

 30

 8

WQ600-15-45

 60

 45

600

 15

 10
