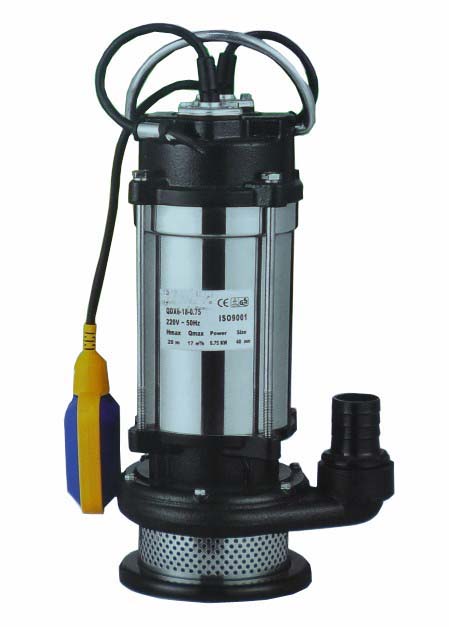

QDS SERIES STAINLESS STEEL SUBMERSIBLE PUMP

RANGE OF PERFORMANCE
8Flow rate up to 250 l/min (15 m³/h)
8Head up to 32 m

LIMITS OF USE
8Maximum  operating depth 5m below waterlevel.
8Environment temperature up to +40℃
8PH value in water : 4-10
8Maximum passage for suspended solids 2mm

WORKING PRINCIPLE
8The pumps are fitted with an open or closed impeller ,which is mounted on the end of the drive shaft and enclosed by a large circular chamber and a baseplate is directly in contact with the fluid to be pumped.
8The rotation impeller transmits kinetic energy to the fluid which is centrifuged in the ring chamber ,where part of the kinetic energy id tranformed into pressure energy, the particular design of the impeller optimizes hydraulic efficiency ,while allowing the pump to the handle muddy fluids containing  solids in suspension and short fibres without danger of clogging.

STRUCTURAL CHARACTERISTIC
8Pump body : Cast iron
8Impeller : Aluminium/Plastic
8Motor body : Stainless Steel
8Mechanical seal : Stainless steel/Carbon-Ceramic
8Shaft : 45#steel or SS420
8Bearing :SKF/NTN/NSK/ China
8Insulation class : B
8Protection class : IP 68
8With float switch (or without).
8With thermal overload protector in single phase motor.

WARRANTY: 1 YEAR (according to our general sales conditions)
